Initial Inspection and Diagnostic Overview

NOTE: All measurements must be carried out using a digital multimeter.

1. Verify the customer concern by operating the reversing lamps.
2. Visually inspect for obvious signs of mechanical and electrical damage.

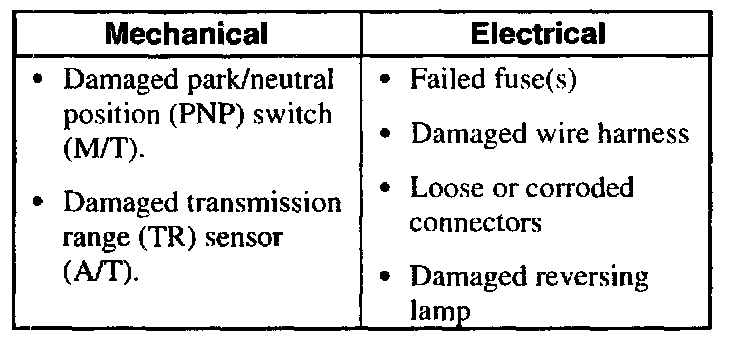

VISUAL INSPECTION CHART

3. If the concern is not visually evident, determine the symptom and proceed to the Symptom Chart. Symptom Related Diagnostic Procedures
