Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Scan Tool Testing and Procedures

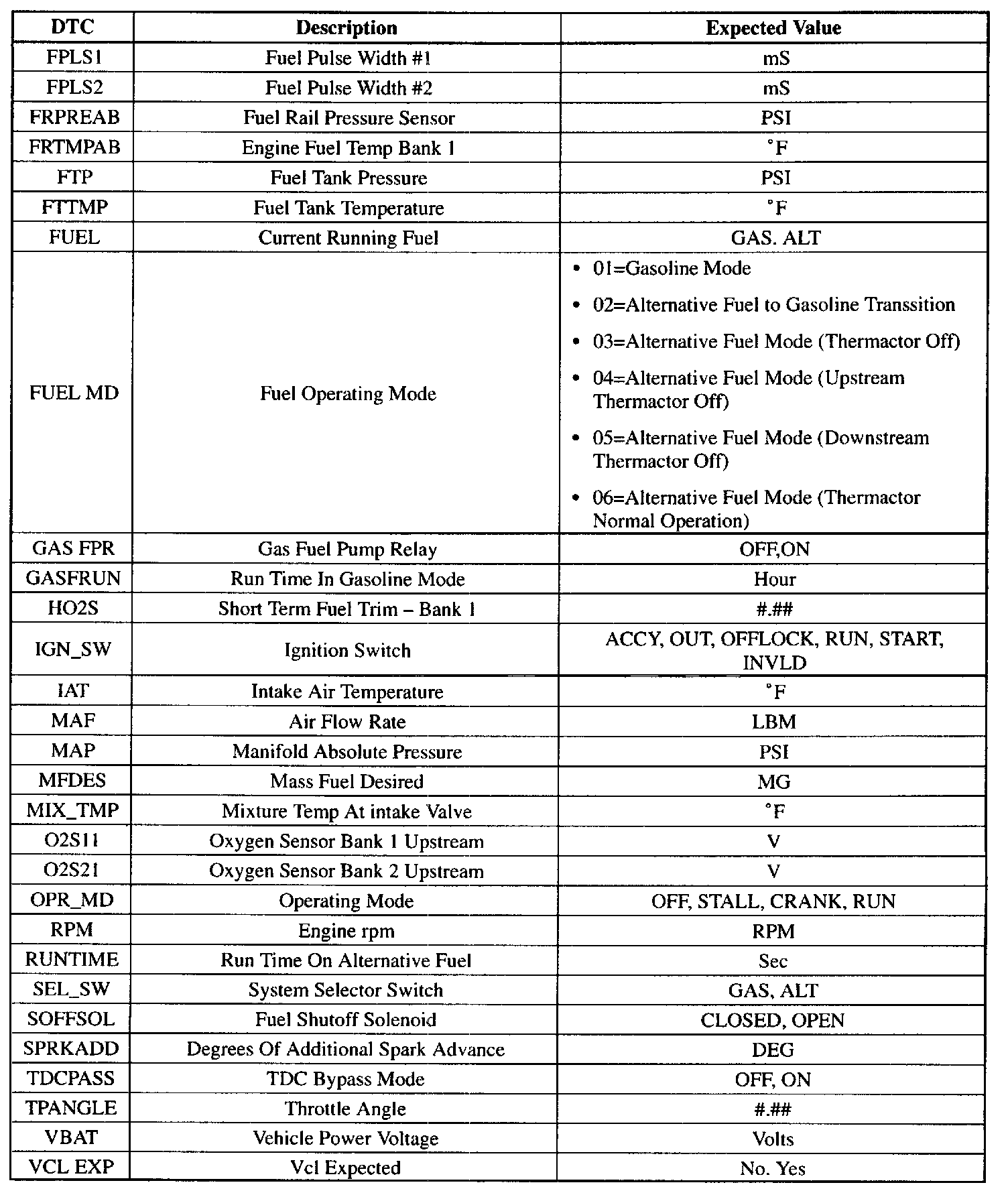

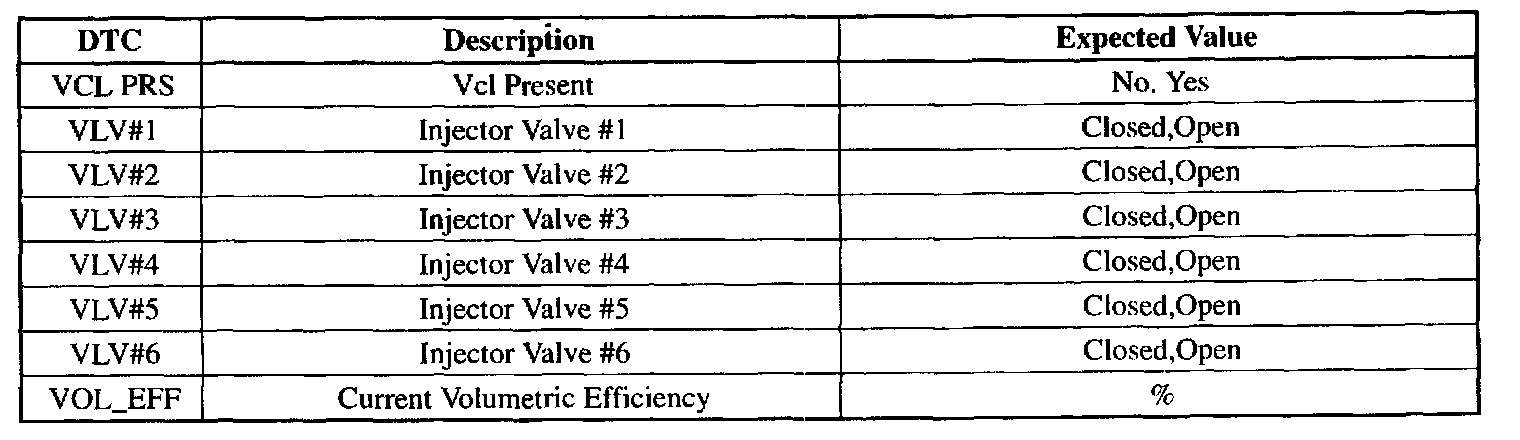

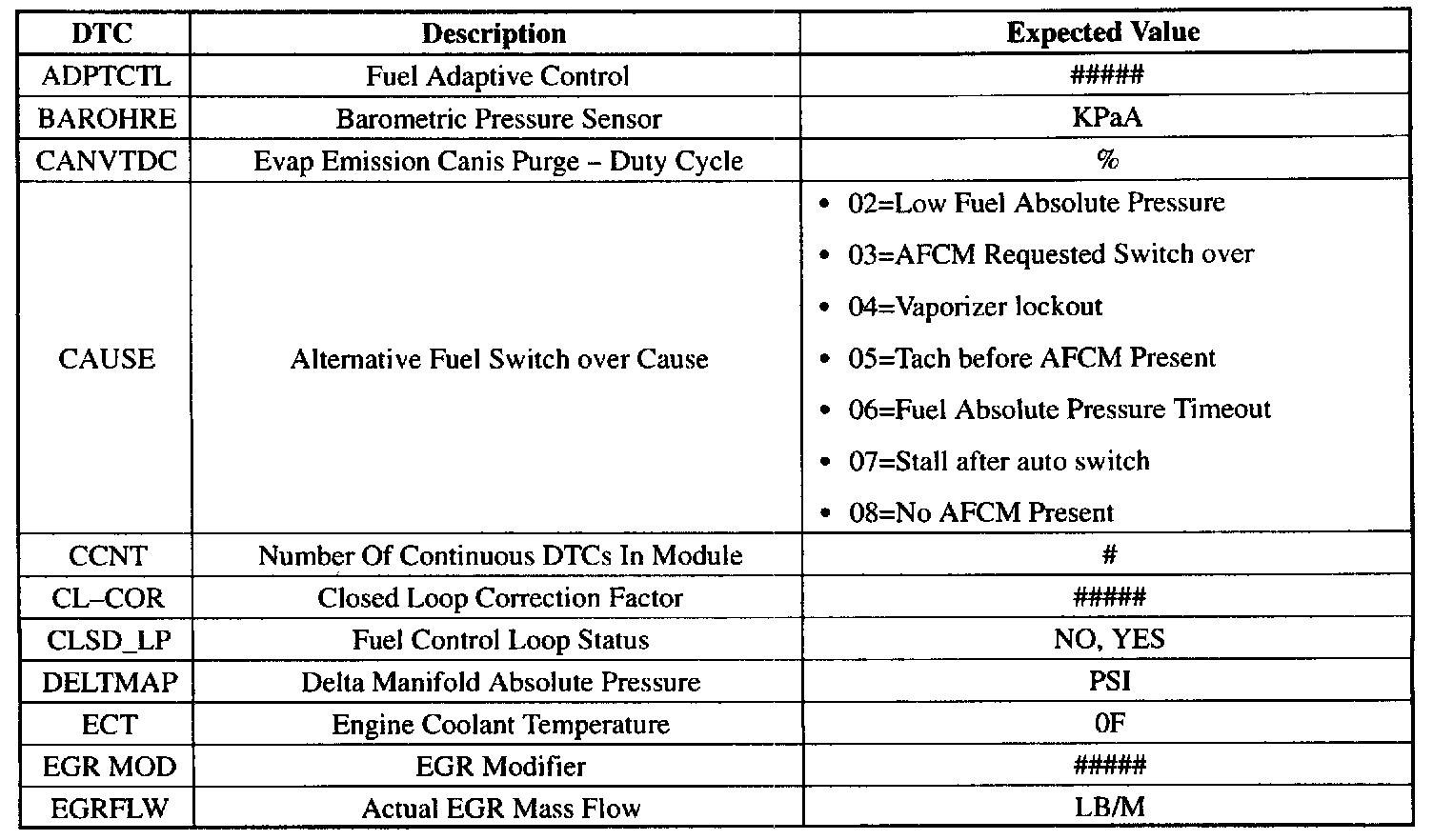

Scan Tool Testing and Procedures

Part 1 Of 3:






Part 2 Of 3:






Part 3 Of 3:
