Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Warning Devices
>>
Test E: Chime Sounds When the Driver Door Is Ajar (No Key In Ignition and Headlamp Off)
Test E: Chime Sounds When the Driver Door Is Ajar (No Key In Ignition and Headlamp Off)

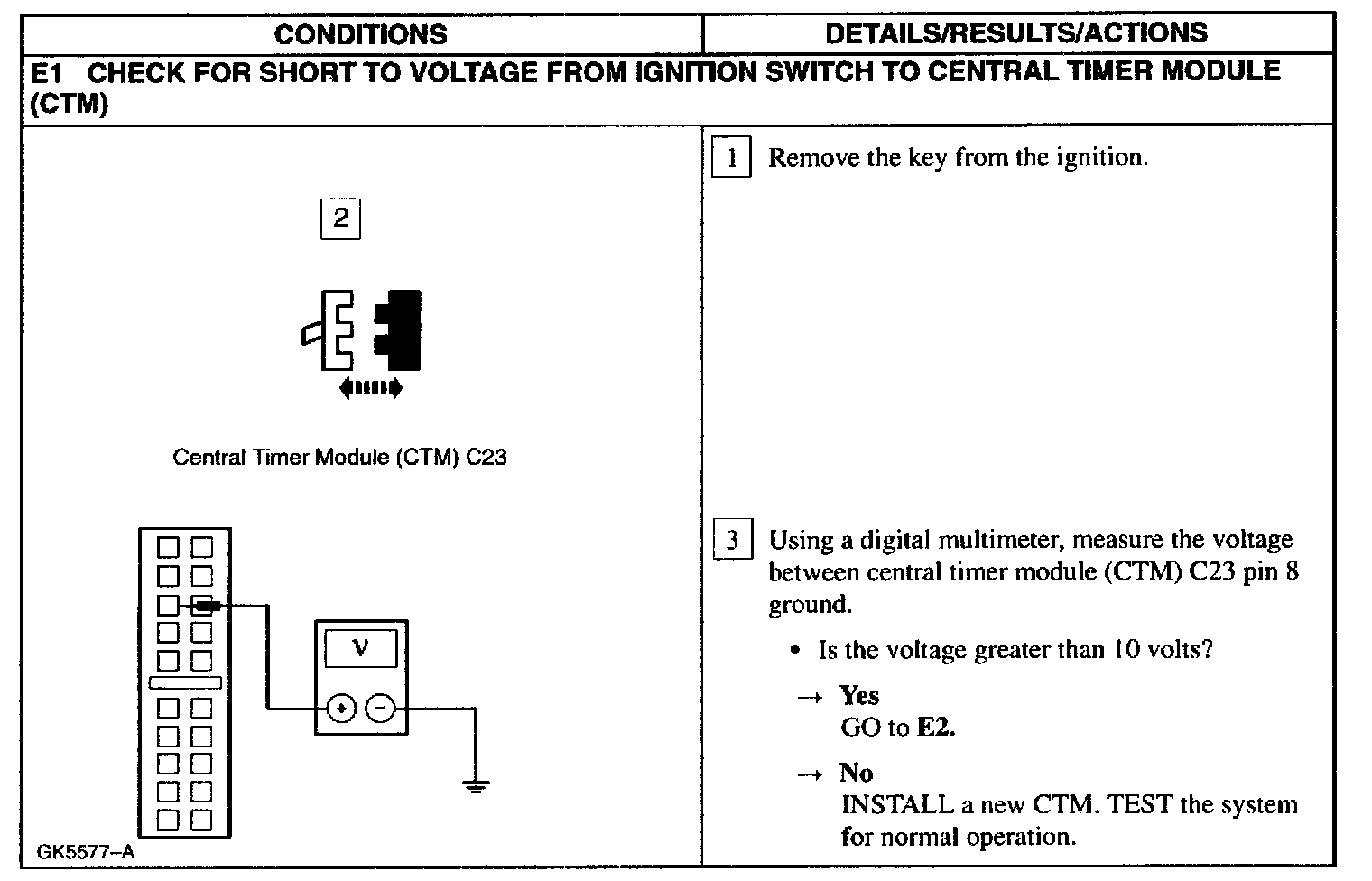

E1:

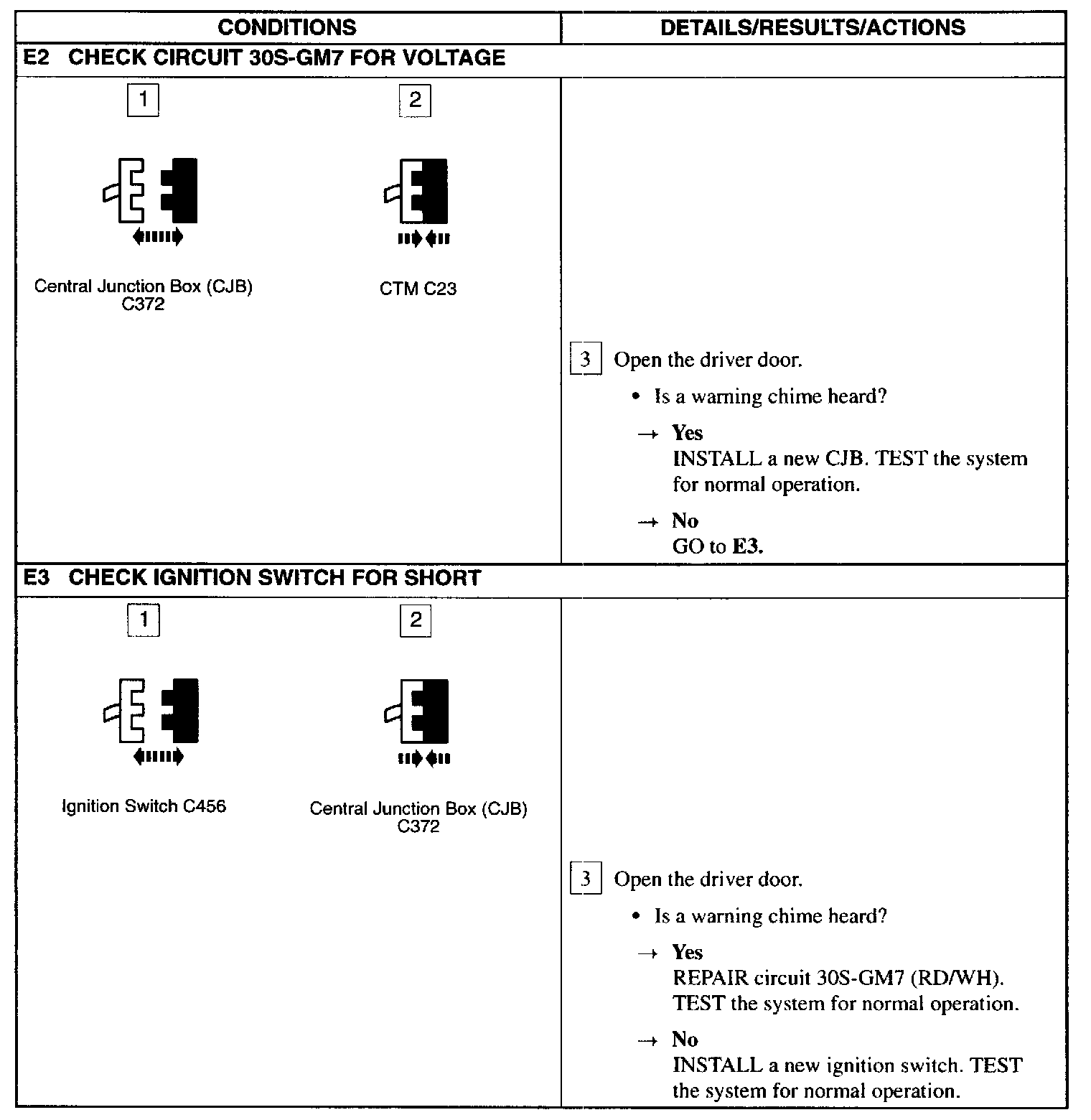

E2 - E3:
