Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Warning Devices >> Test D: Headlamps on Reminder Chime Does Not Operate

Test D: Headlamps on Reminder Chime Does Not Operate

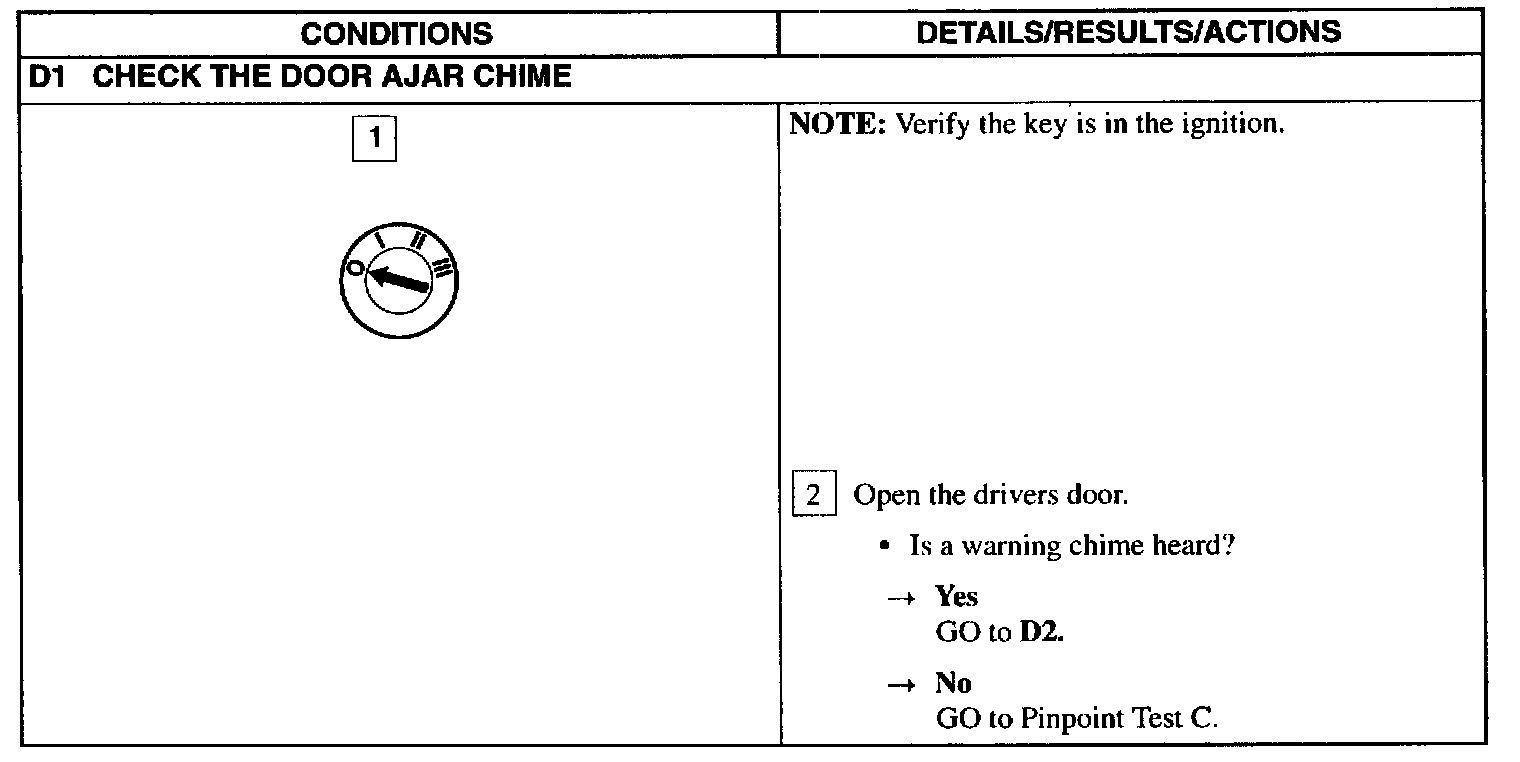

D1:

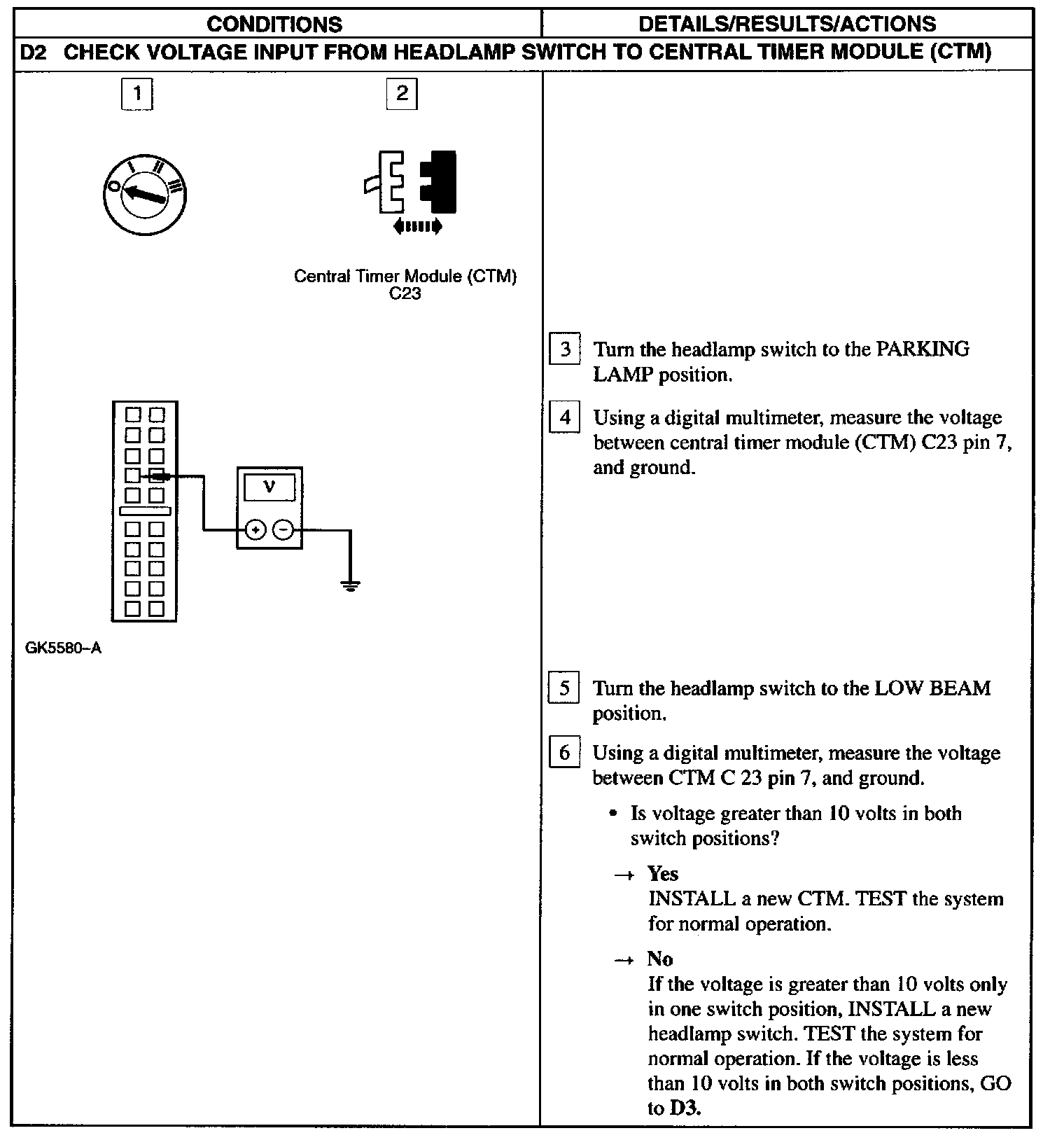

D2:






D3:

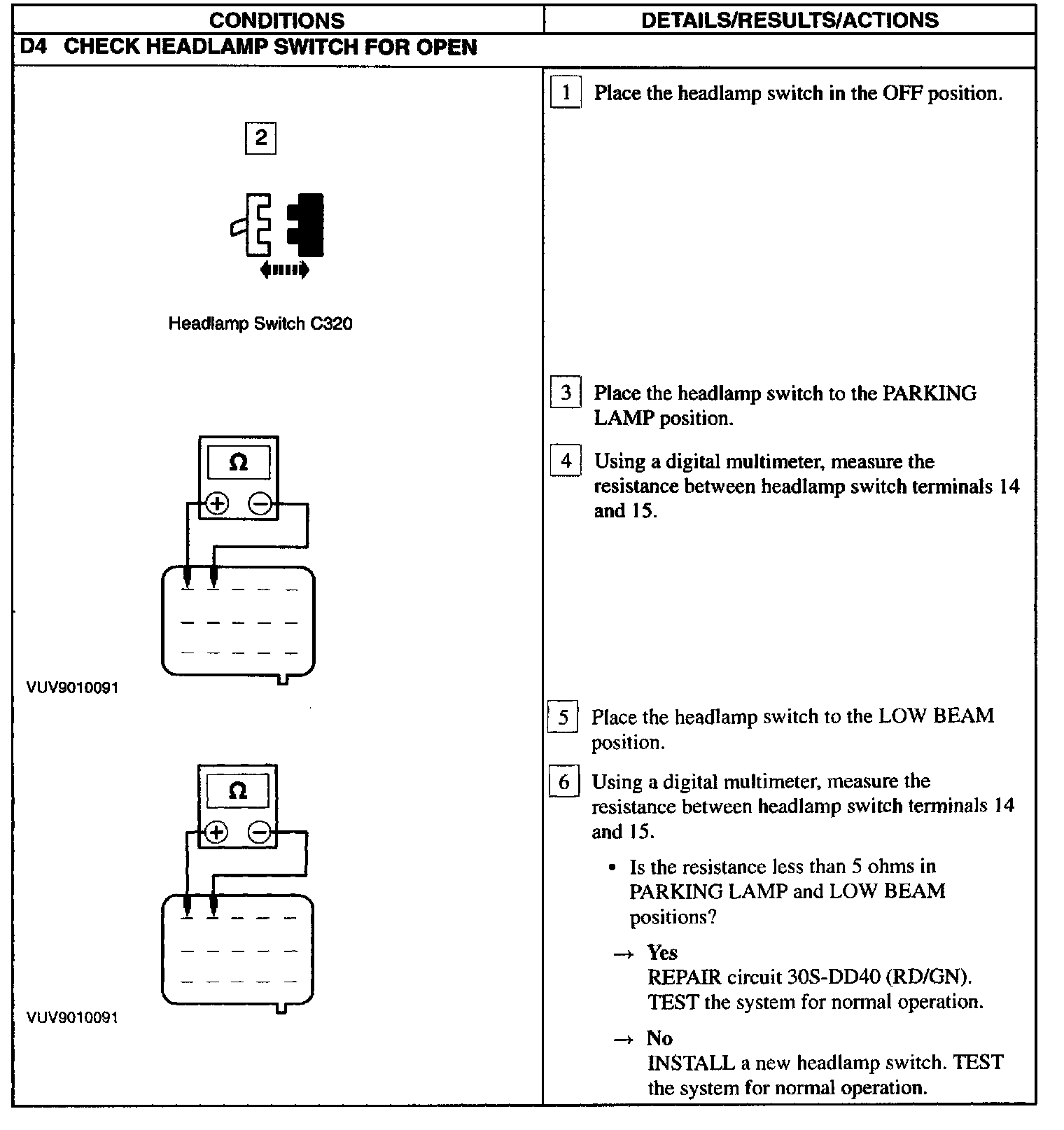

D4:
