Tests AB: Instrument Cluster Is Inoperative (Bi-Fuel Vehicles Only)
Tests AB: Instrument Cluster Is Inoperative (Bi-Fuel Vehicles Only)

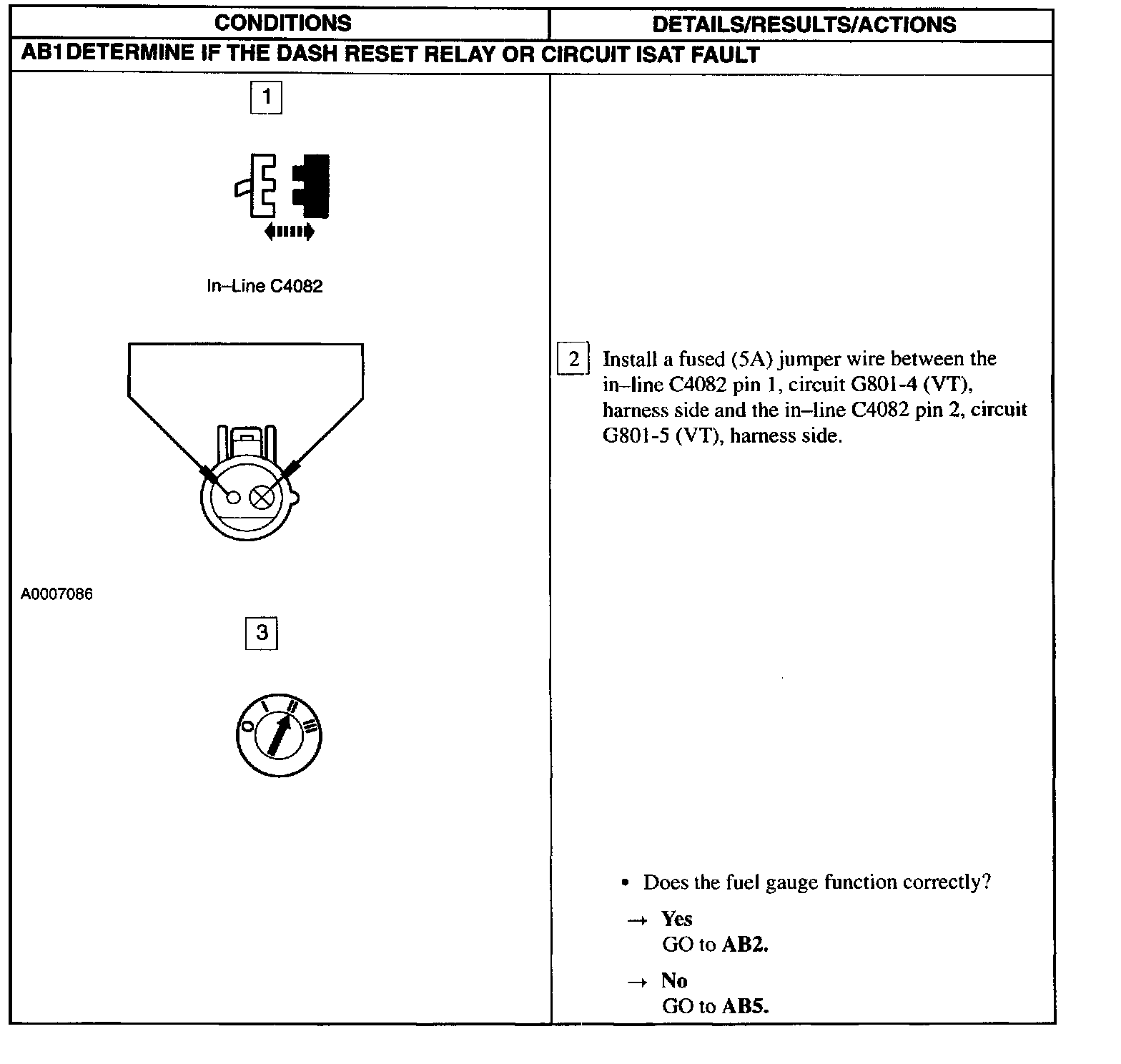

AB1:

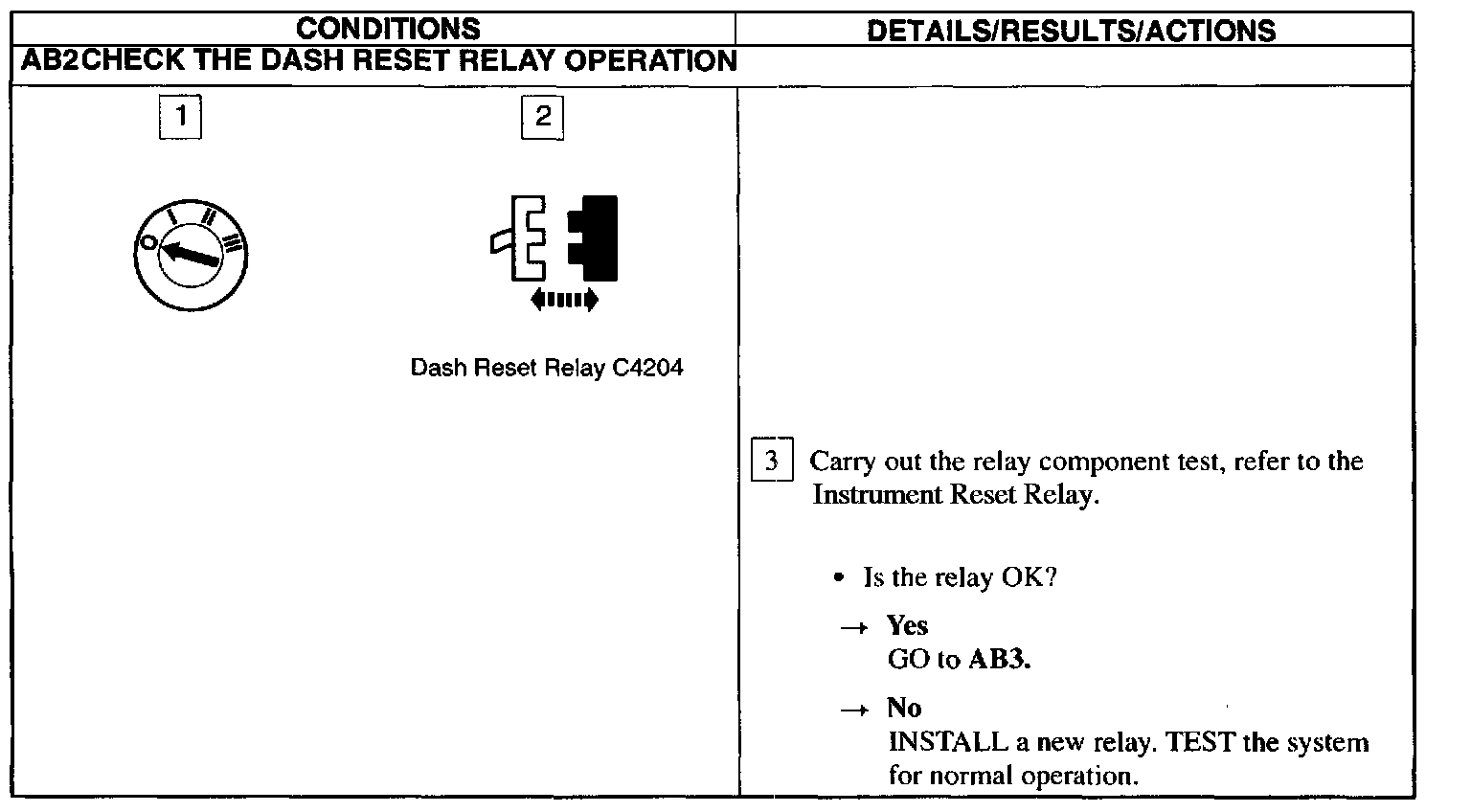

AB2:

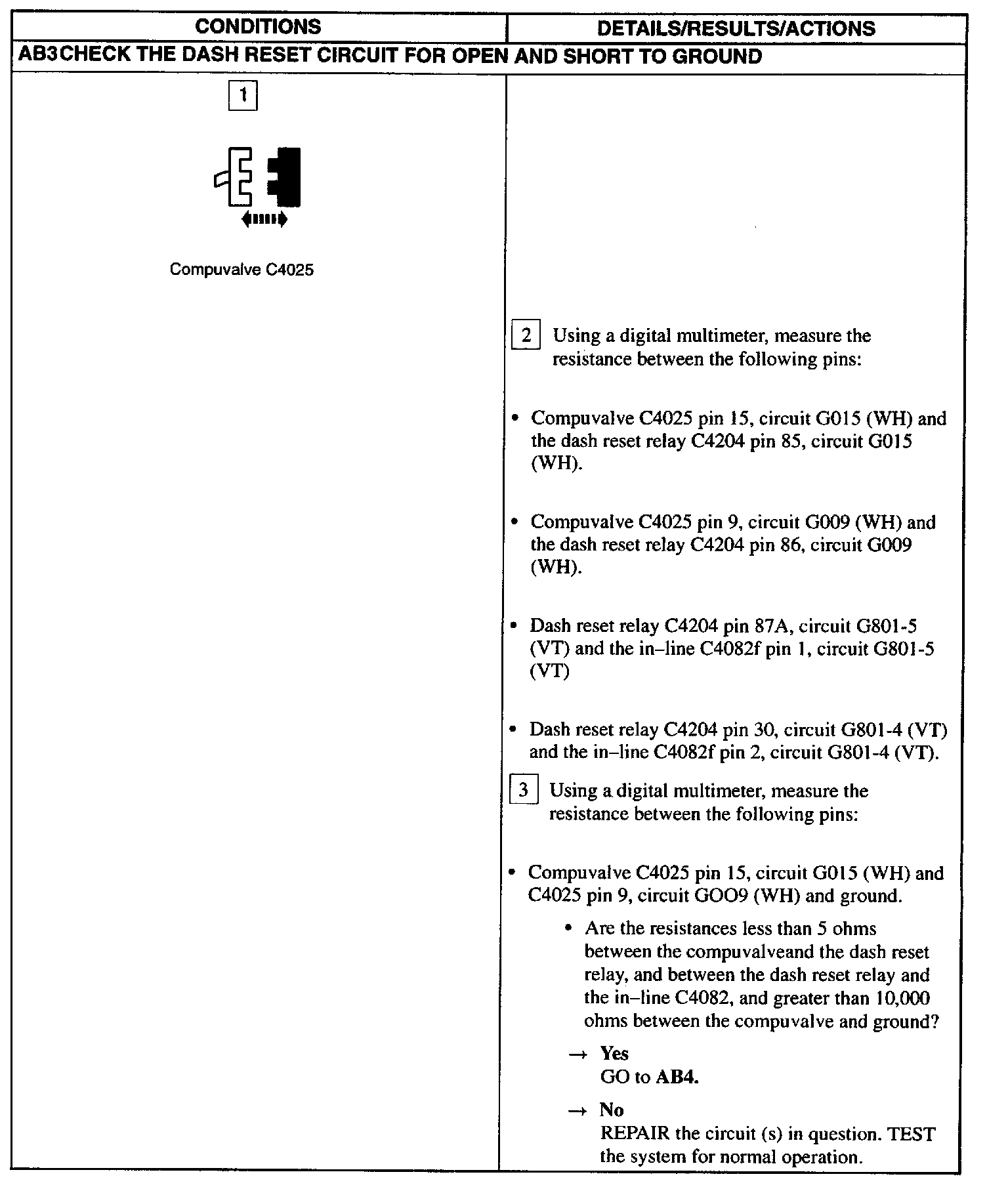

AB3:
AB4:

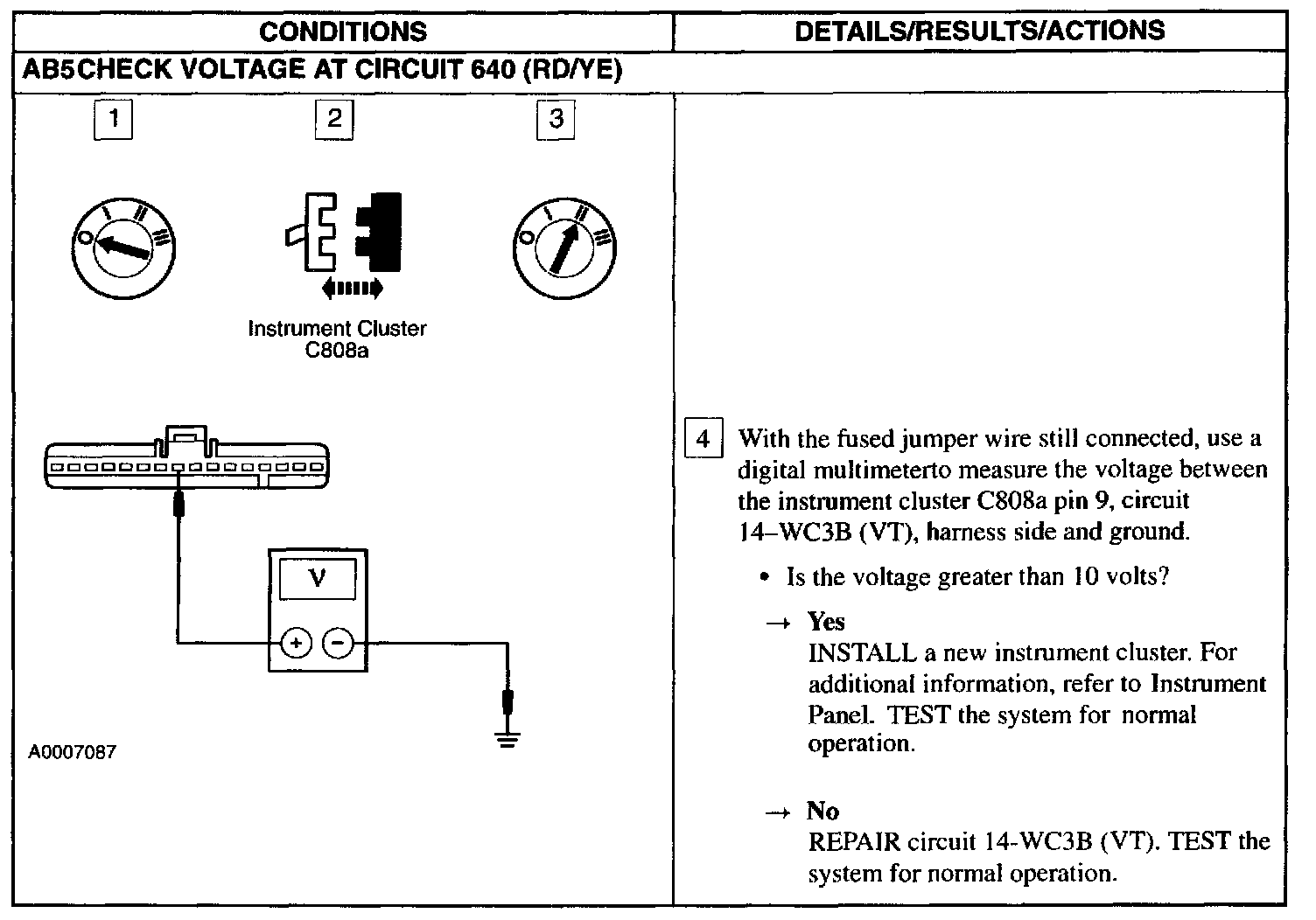

AB5:
