Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test Y: Incorrect Fuel Gauge Indication - In Alternative Fuel Mode (Bi-Fuel Vehicles Only)
Test Y: Incorrect Fuel Gauge Indication - In Alternative Fuel Mode (Bi-Fuel Vehicles Only)

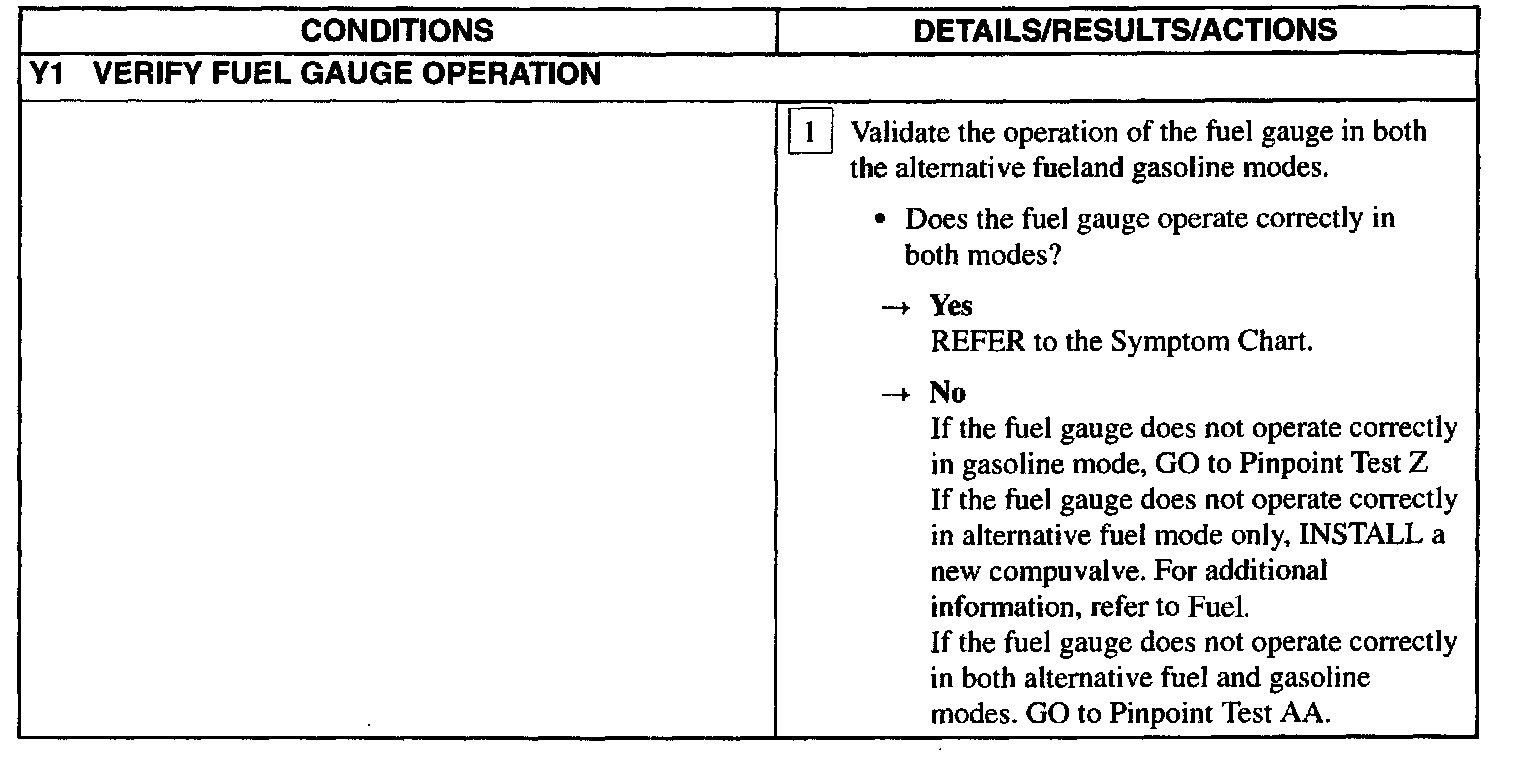

Y1:
