Test X: No Communication With The Module - Alternative Fuel Control Module (AFCM) (Bi-Fuel Vehicles Only)
Test X: No Communication With The Module - Alternative Fuel Control Module (AFCM) (Bi-Fuel Vehicles Only)

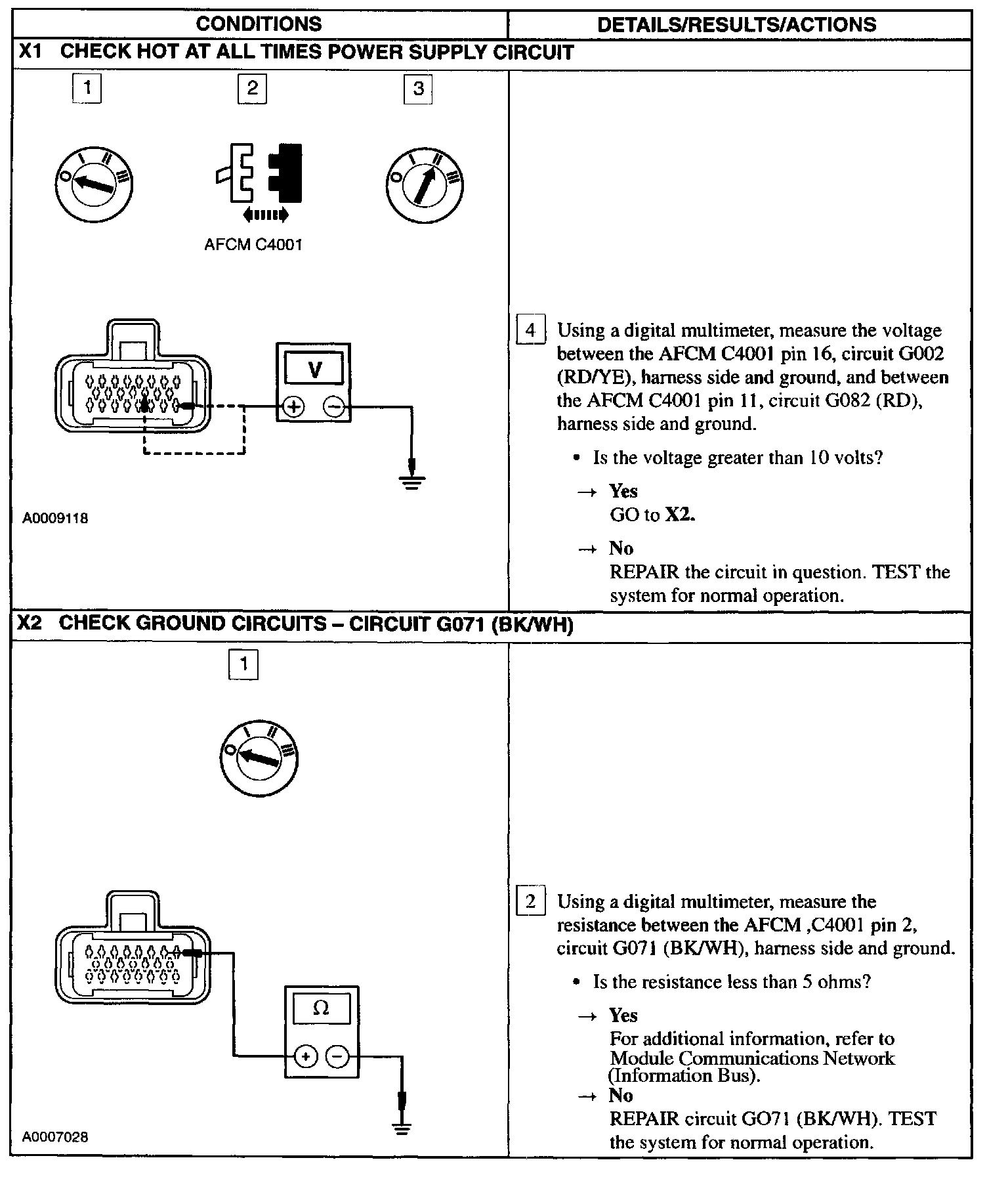

X1 - X2:
