Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test S: Indicator Is Inoperative - Turn Signals

Test S: Indicator Is Inoperative - Turn Signals

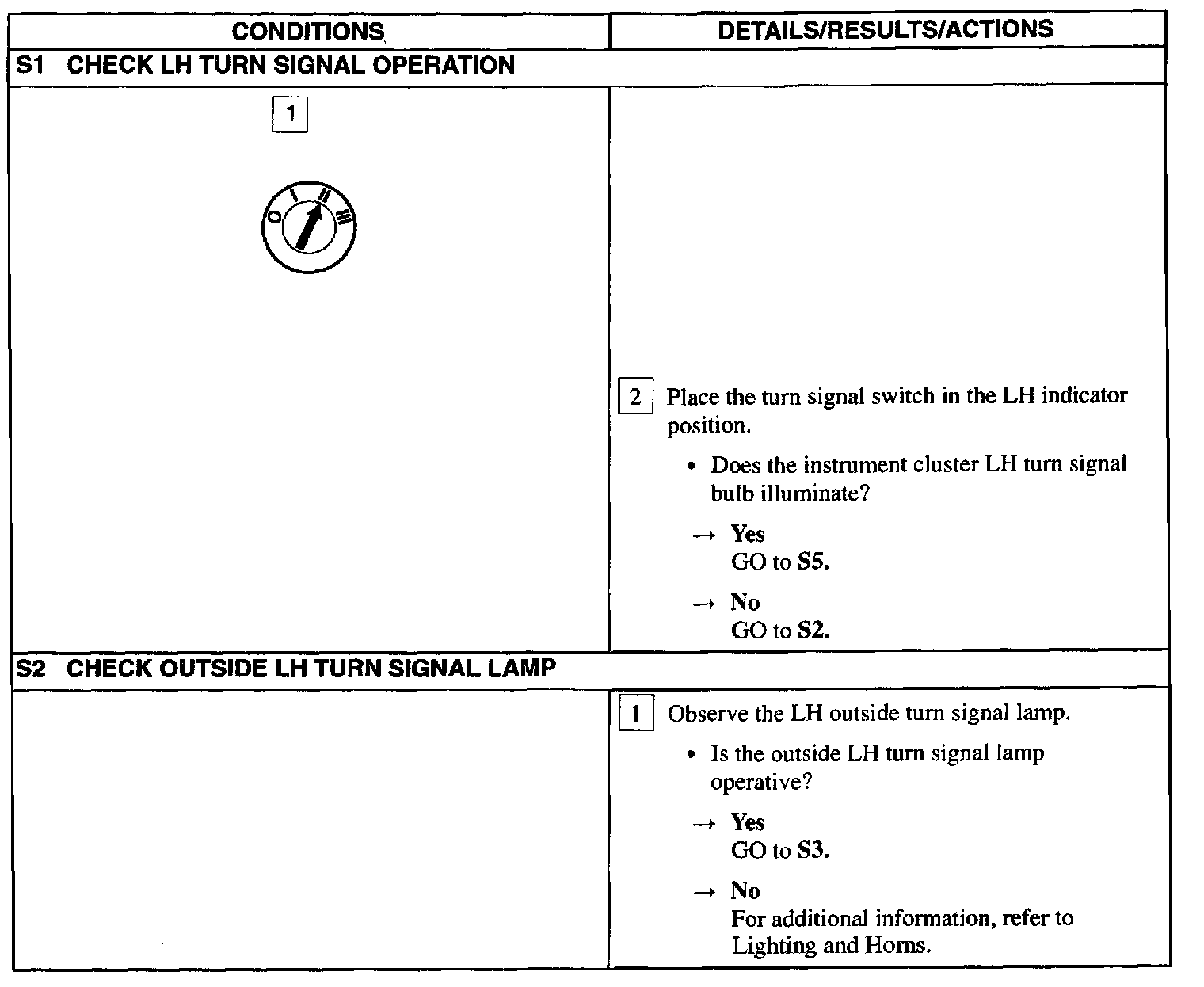

S1 - S2:

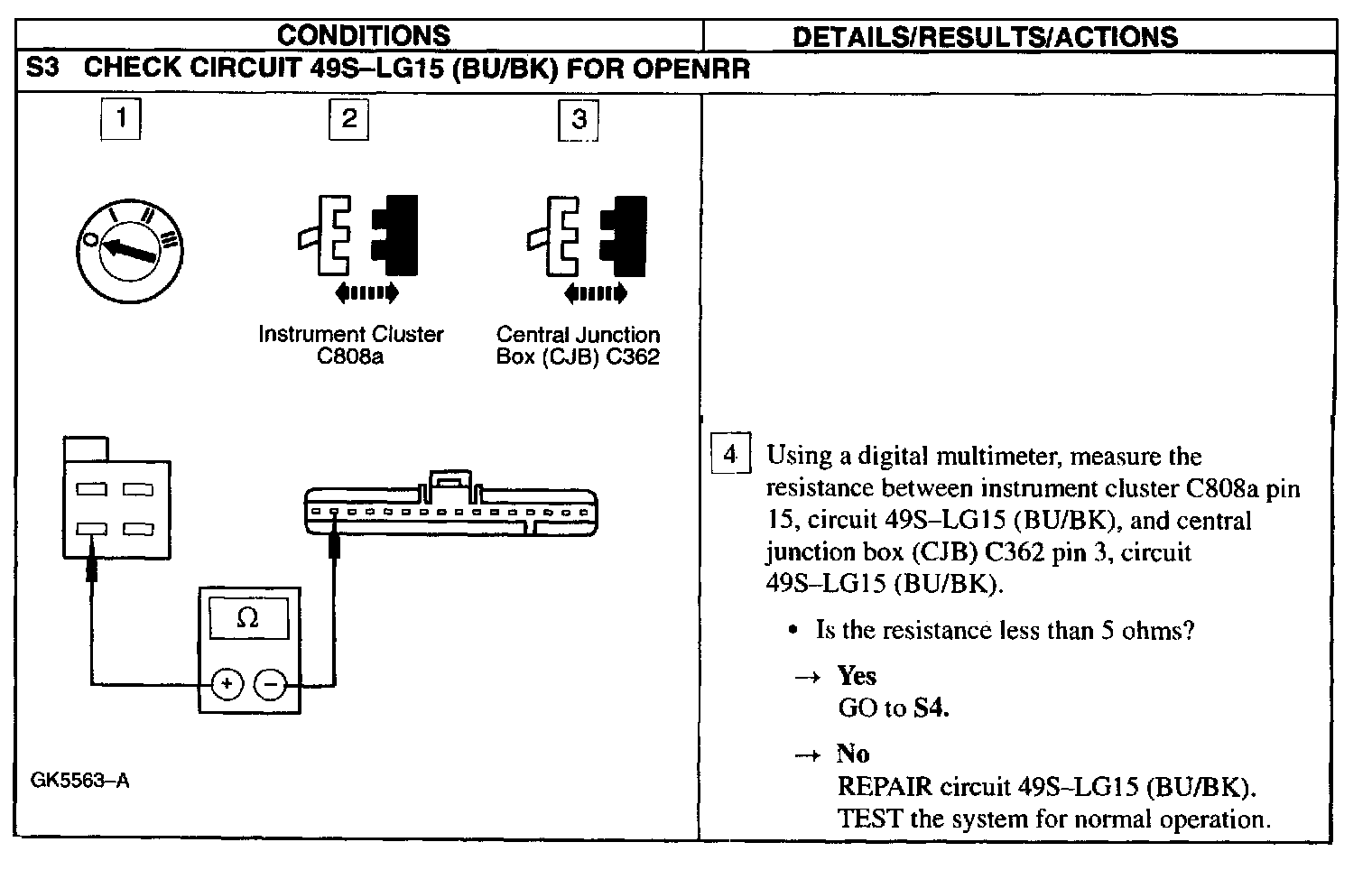

S3:

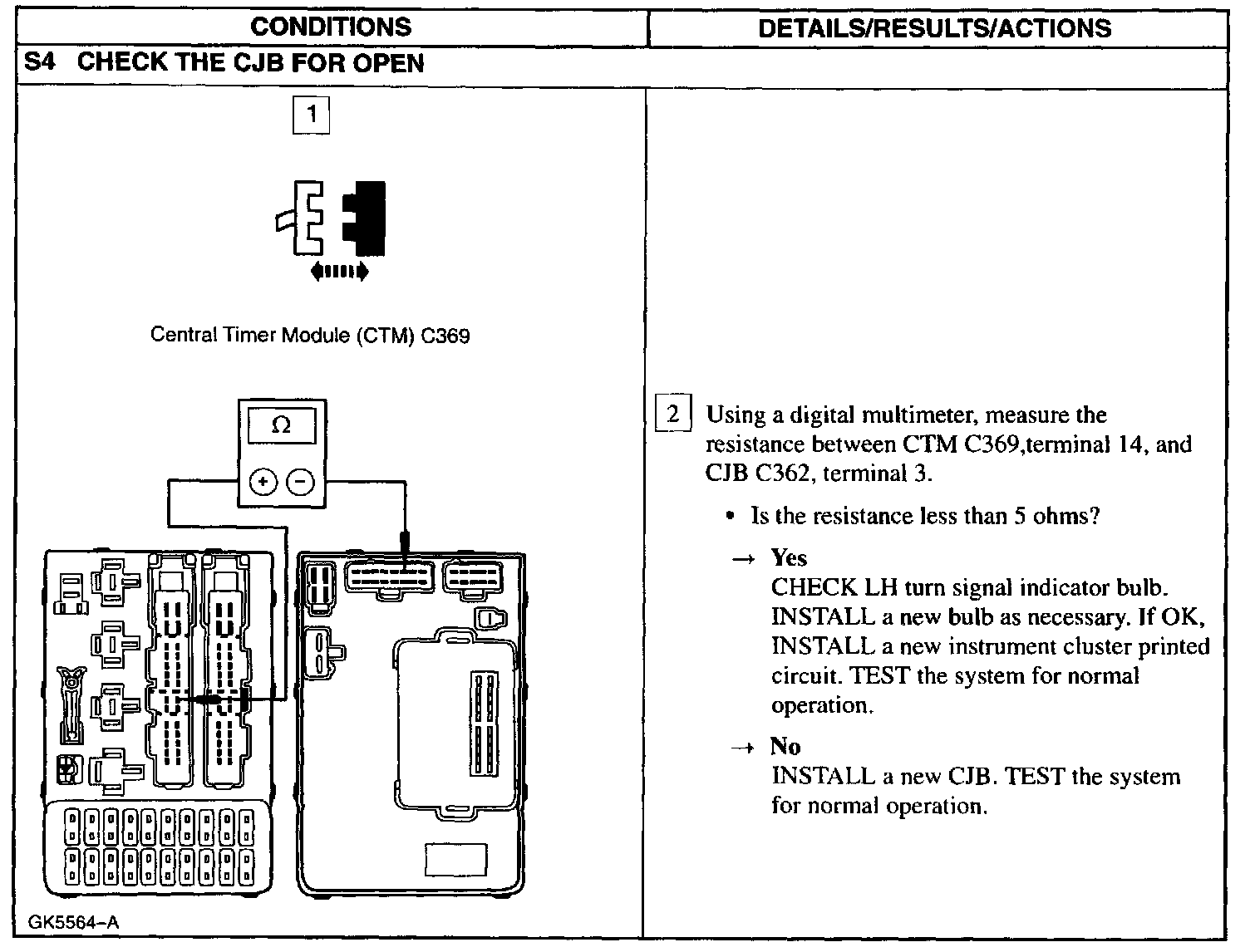

S4:

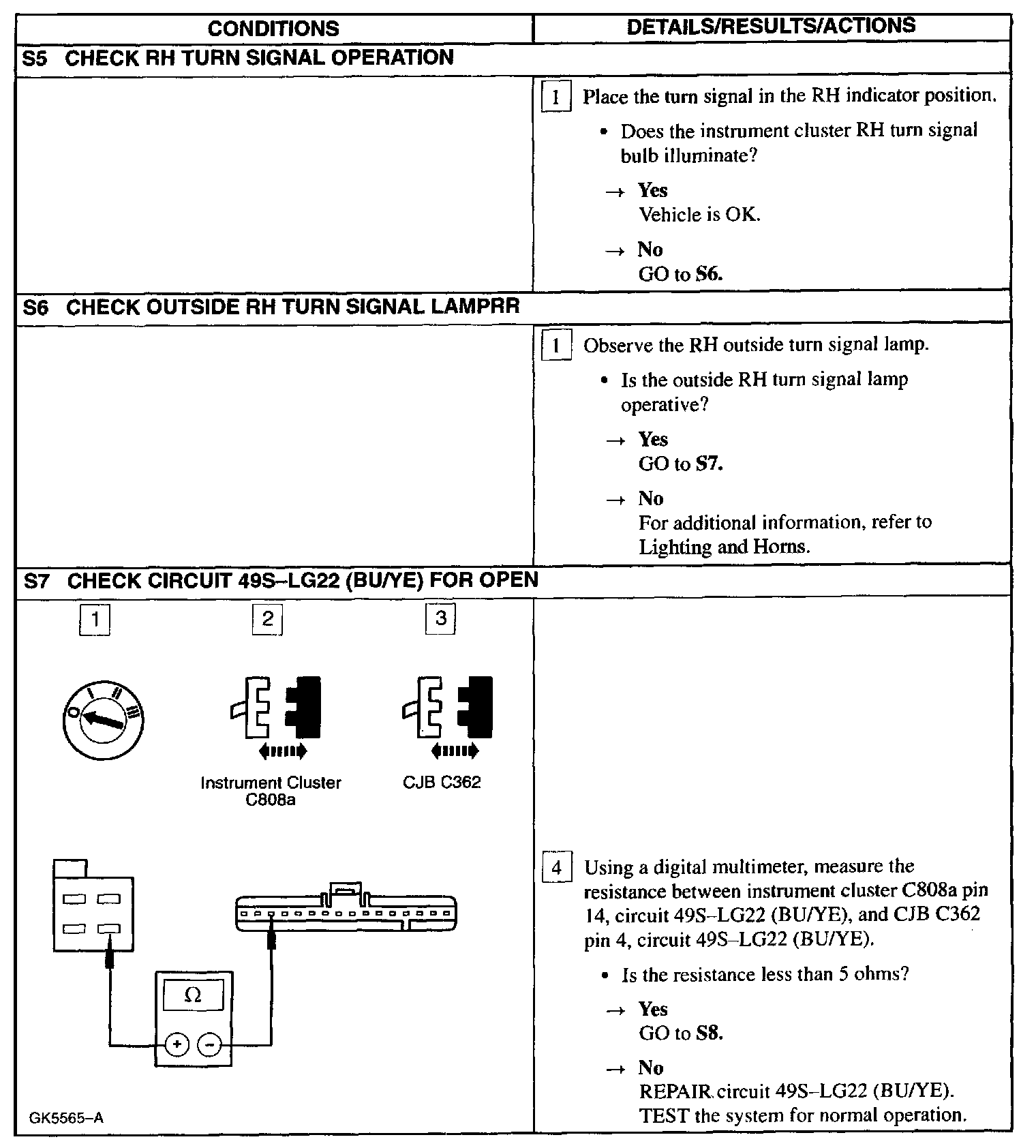

S5 - S7:






S8:
