Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test M: Indicator Is Always On - Low Engine Coolant

Test M: Indicator Is Always On - Low Engine Coolant

M1:

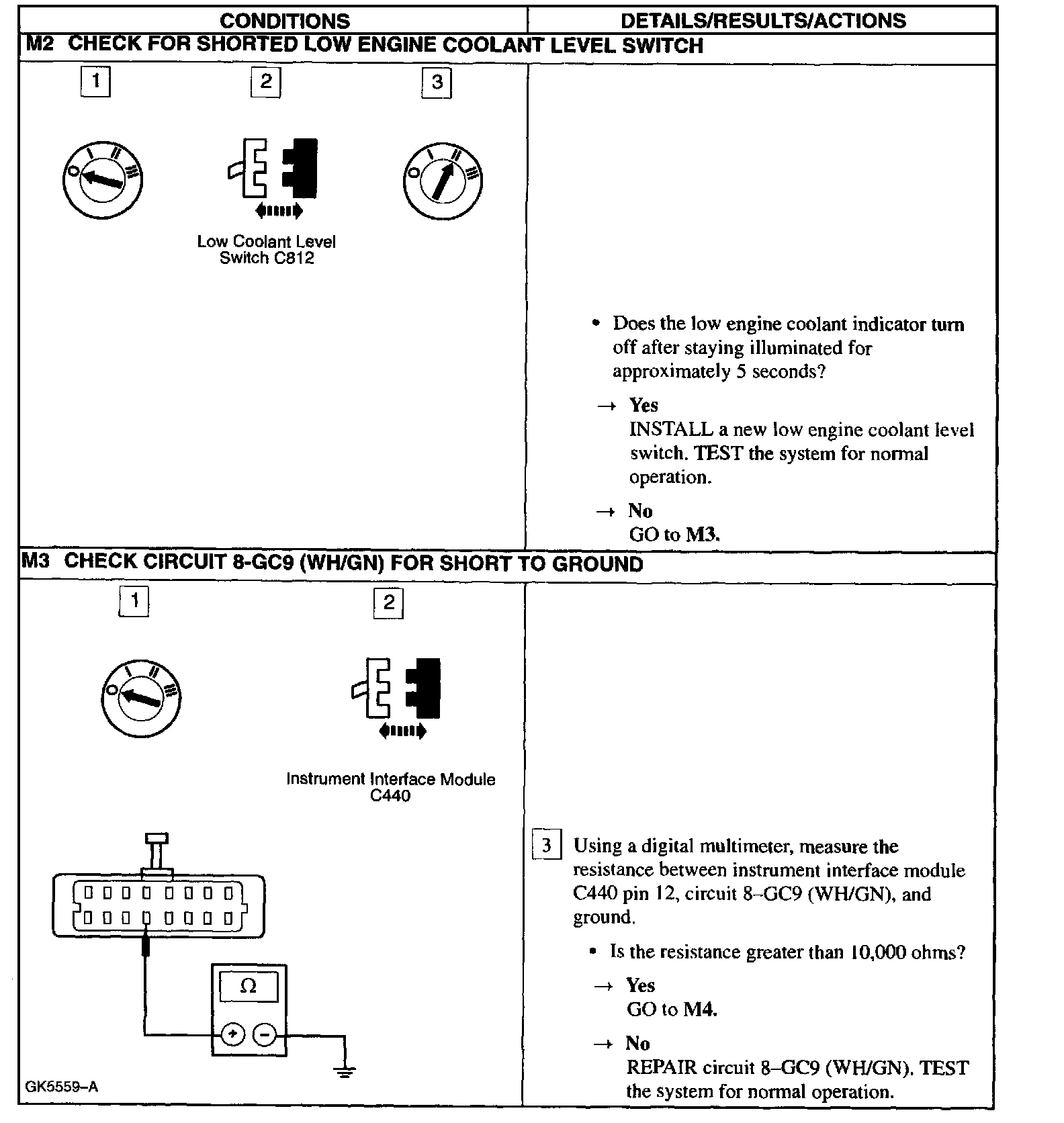

M2 - M3:

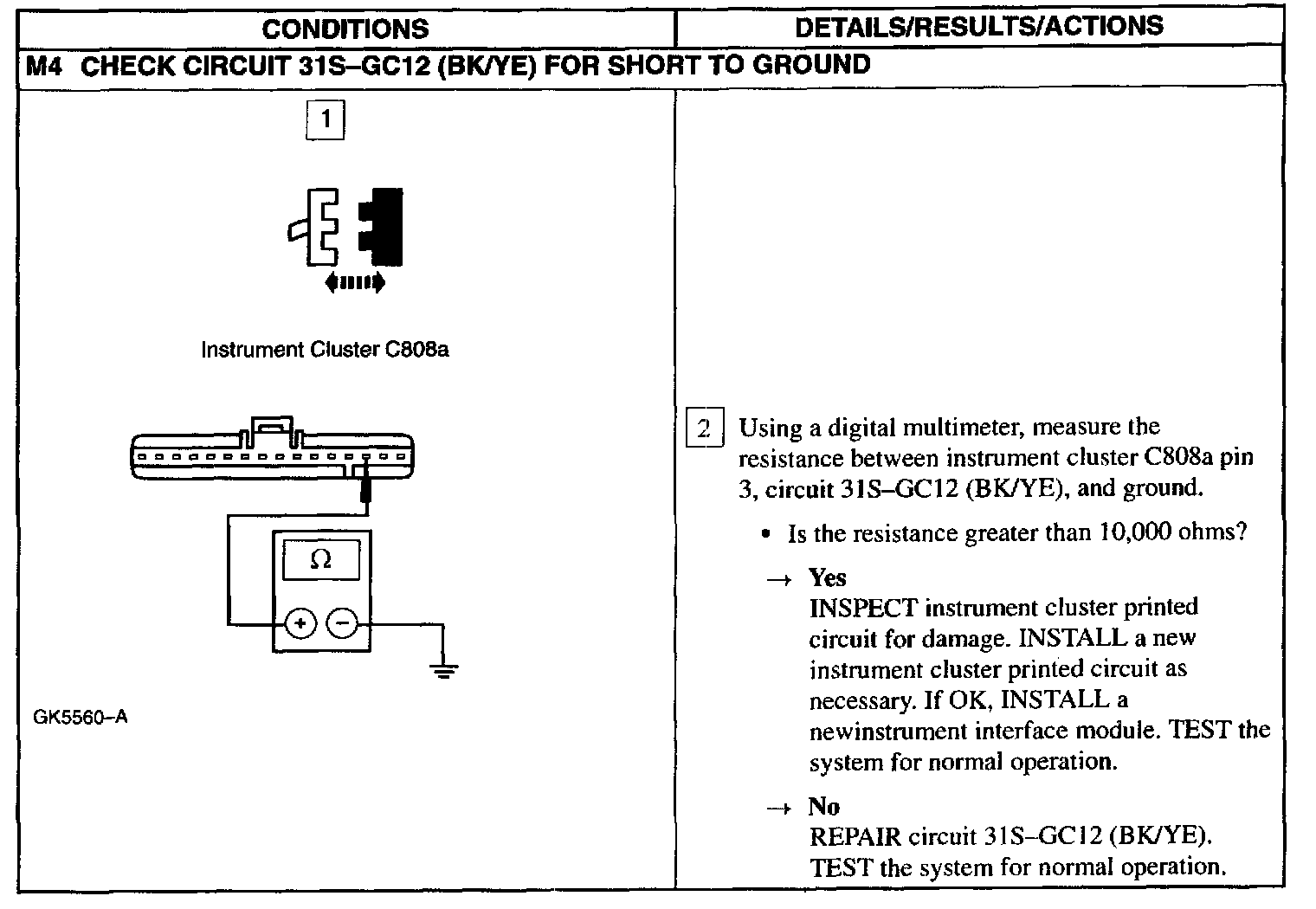

M4:
