Vehicles With Tachometer

REMOVAL
1. Remove the instrument cluster.

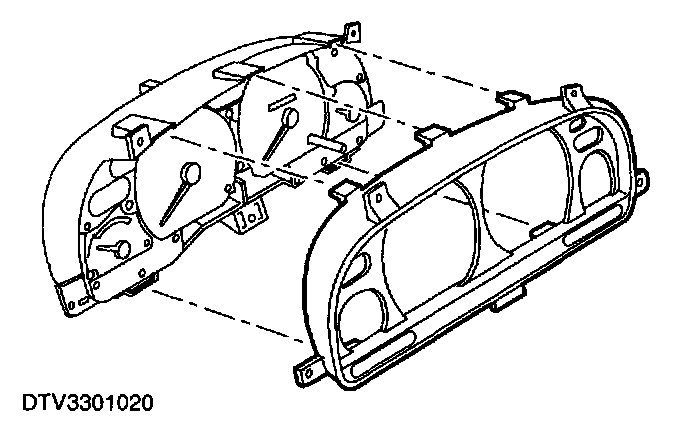

2. Remove the instrument cluster lens.
- Release the five retaining tangs and remove the lens.
- SVT equipped remove the gasket.

NOTE: SVT Contour has a light bleed gasket between the lens and bezel.

INSTALLATION
1. To install, reverse the removal procedure.
