Compressor Clutch: Adjustments

MATERIALS
Spacer Washer Set

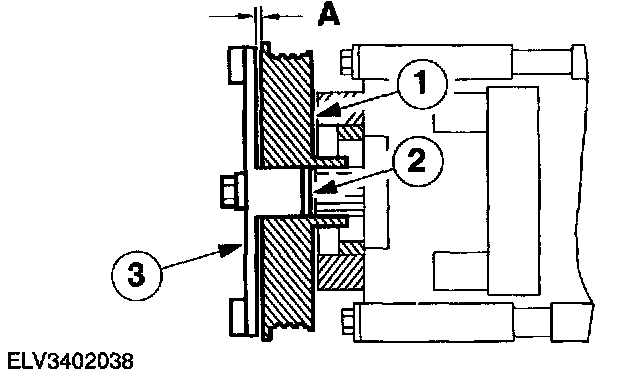

1. Check the air gap A between the drive plate and the pulley at 60 degrees intervals around the circumference. For additional information, refer to Specifications.
1 Belt pulley
2 Spacer washer
3 Drive plate

NOTE: The refrigerant circuit can remain closed if possible.

2. If the air gap A is outside the tolerance range, if necessary detach the air conditioning compressor.
- Tie up the compressor with wire if necessary.







3. Detach the drive plate.
4. Correct air gap A as necessary using spacer washers.

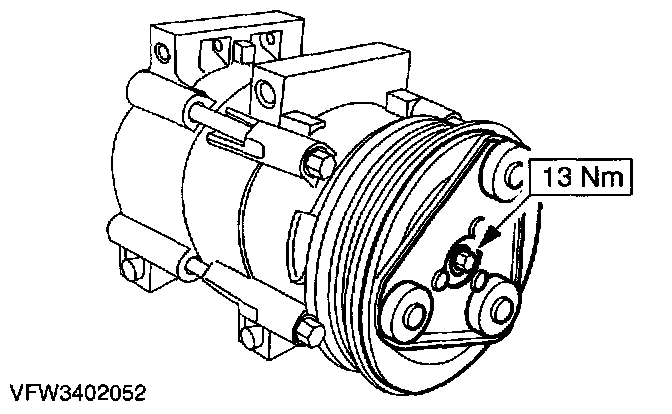

5. Attach the drive plate.
6. Check air gap A as described in step 1. Repeat steps 3-6 if necessary.
7. Install the air conditioning compressor.
