Blower Motor: Service and Repair

REMOVAL

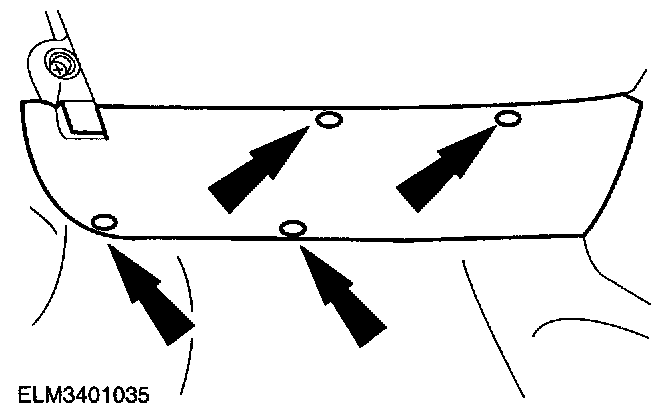

1. Remove the pushpins for the upper footwell trim panel on the passenger side and remove it.

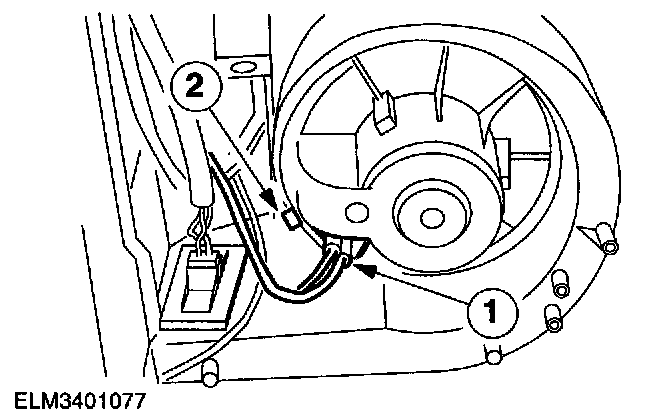

2. Remove the blower motor.
1 Disconnect the electrical connector.
2 Lift the securing tab slightly.
- Turn the blower motor approx. 30° counterclockwise and remove it.

INSTALLATION

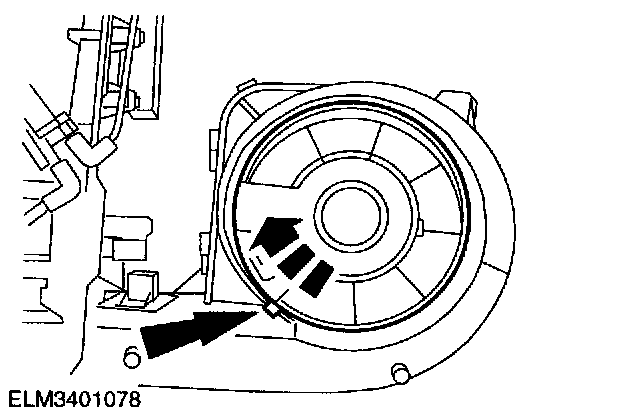

NOTE: Engage the securing tab for the blower motor.







1. To install, reverse the removal procedure.
