Tailpipe

Removal
1. Raise and support the vehicle.





2. NOTE: Support the muffler with a suitable stand.

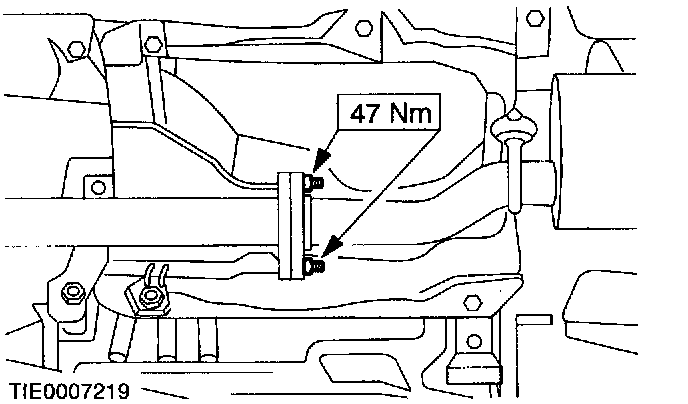

Remove the muffler inlet pipe flange nuts.

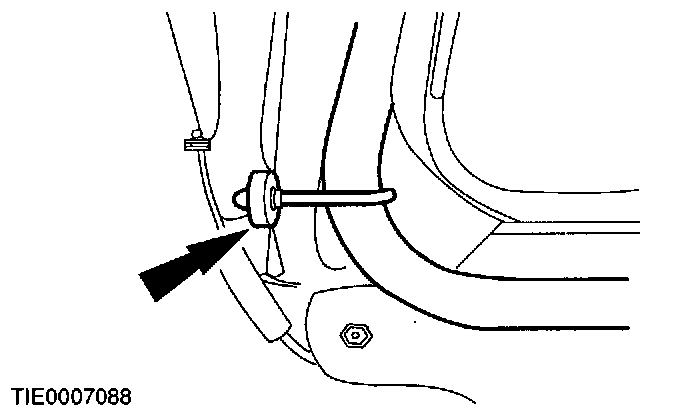

3. Detach the muffler inlet pipe exhaust hanger insulator.

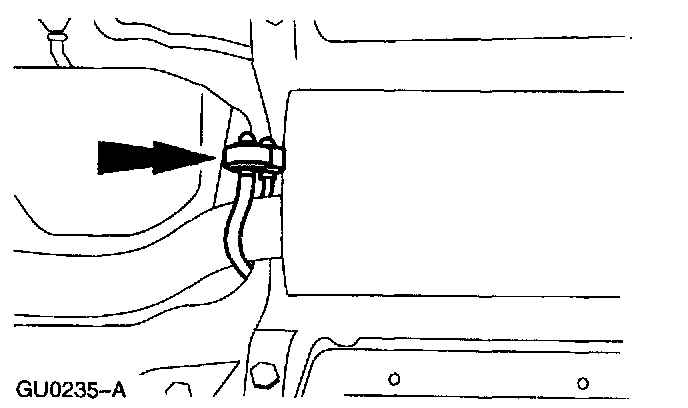

4. Detach the rear muffler exhaust hanger insulator.
- SVT vehicles have left and right-hand rear mufflers.

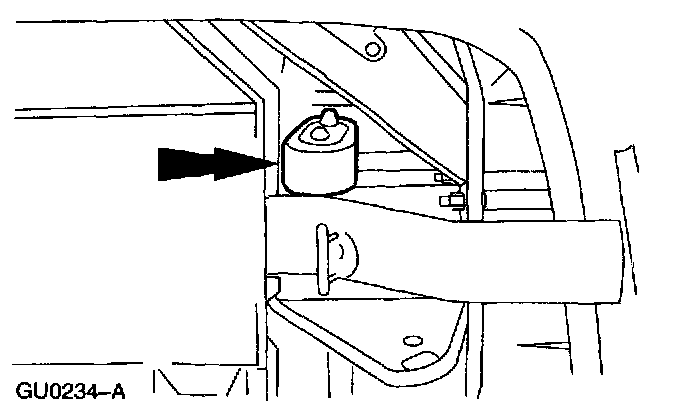

5. Detach the exhaust pipe from the exhaust hanger insulator and remove the muffler.

Installation





1. To install, reverse the removal procedure.
- Prior to assembly lubricate the exhaust hanger insulators with Silicone Lubricant.
- Install new nuts.
