Piston Ring End Gap

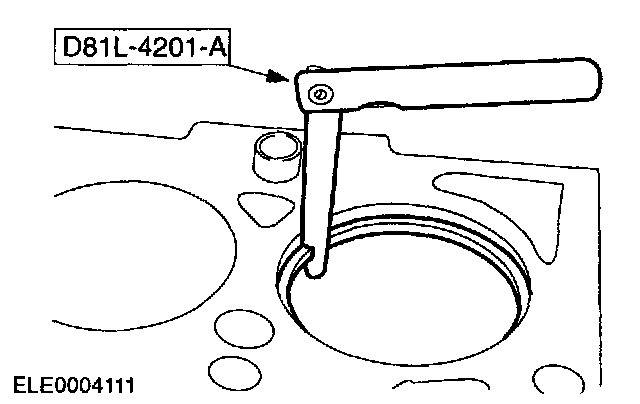

Special Tools:

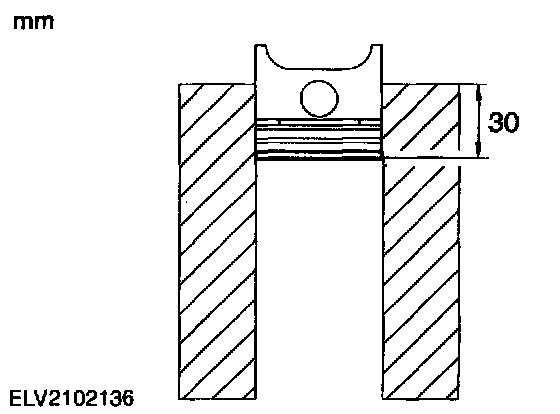

1. Take the piston ring and use a piston without rings to push the piston ring approximately 30 mm into the cylinder bore.





2. CAUTION: Do not mix up the piston rings. Install the piston rings in the same position and location.

Using the special tool, measure the piston ring gap.
- The values given in the specification refer to a gauge ring used during production. If measured in the cylinder, these values can be exceeded by 0.15 mm.
