Piston Pin Bore Diameter

1. NOTE: The piston and piston pin form a matched pair. Do not mix up the components.

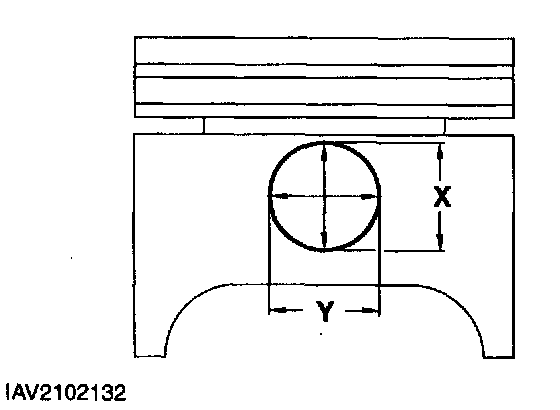

Measure the diameter of the piston pin bore.
- Measure the diameter in two directions.
- If the values are not to specification, install both a new piston and a new piston pin.
