Flywheel Inspection

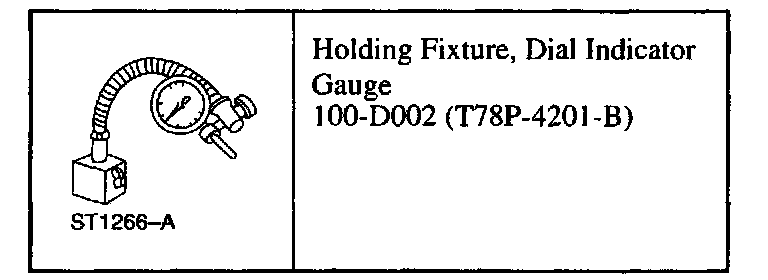

Special Tools:

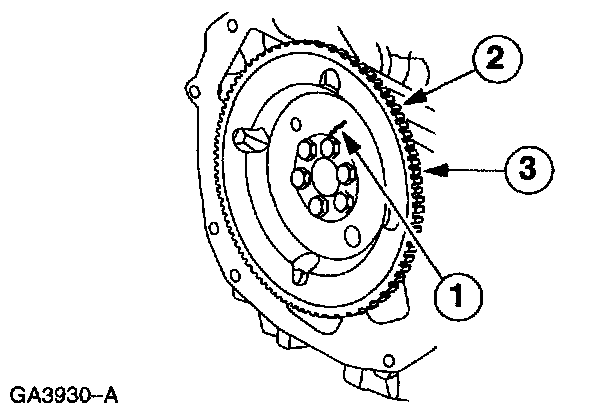

1. Inspect the flywheel for:
1 Cracks
2 Worn ring gear teeth
3 Chipped or cracked ring gear teeth

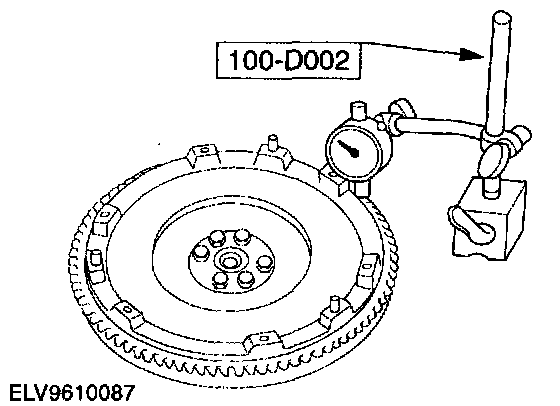

2. Using the special tool, inspect the flywheel ring gear runout.
- Set the special tool on the flywheel ring gear surface and turn the flywheel to measure any runout.
