Cylinder Head

NOTE: Ford does not provide camshaft gear timing marks, or information to perform timing belt service without the special tools shown in this procedure.

Special Tools:

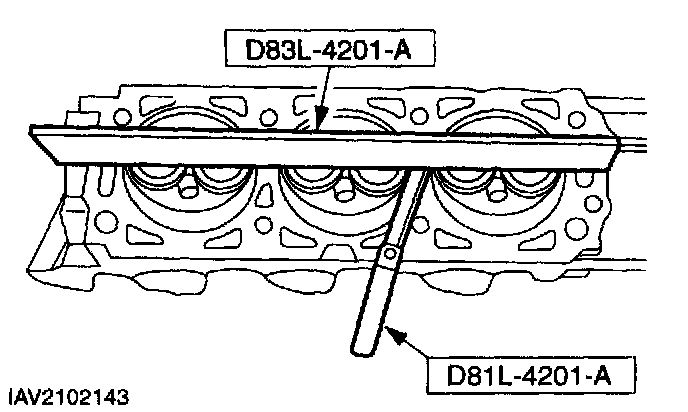

1. Measure the cylinder head distortion.
- Using the special tool, measure the mating face distortion.
- If the value is not to specification rework the mating face,
