Crankshaft End Play

Special Tools:

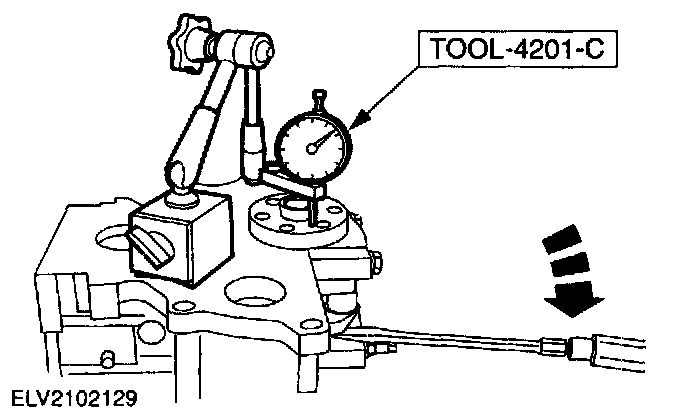

1. Using the special tool, measure the end play (2.0L shown).
- Measure the end play by lifting the crankshaft using a lever.
- If the value is outside specification, use new thrust half rings to take up the end float and repeat the measurement.
