Initial Inspection and Diagnostic Overview

1. Verify the customer concern.

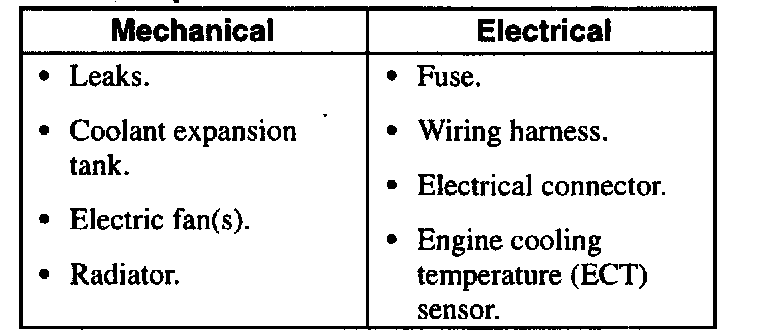

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical and electrical damage using the chart.
3. If visual inspection reveals an obvious cause, rectify this before continuing.
4. If the concern remains after visual inspection proceed to the Symptom Chart. Symptom Related Diagnostic Procedures
