Radiator Cooling Fan Motor: Service and Repair

Removal
1. Remove the battery.
2. Raise and support the vehicle.





3. Remove the radiator splash shield.

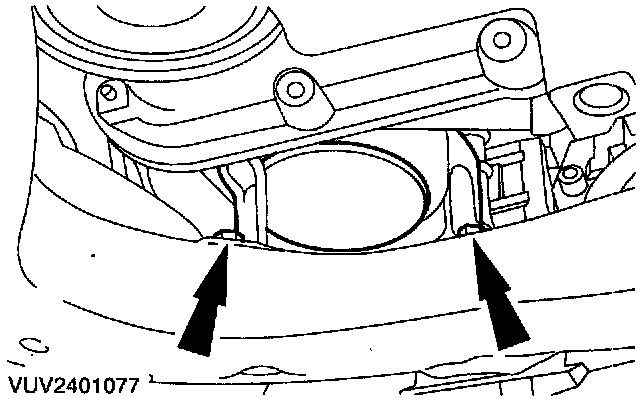

4. Detach the air conditioning accumulator and place to one side.

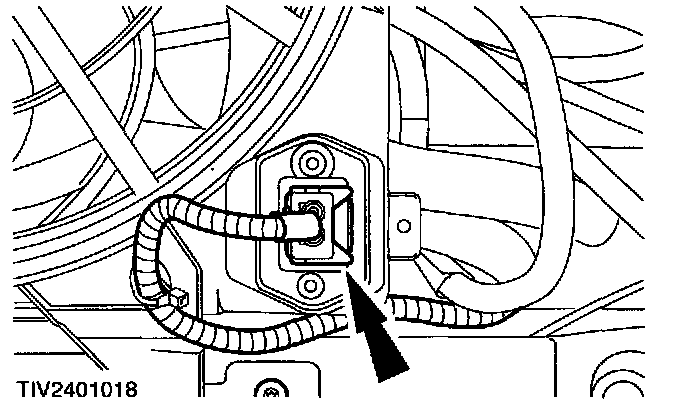

5. Disconnect the fan resistor electrical connector.
6. Lower the vehicle.

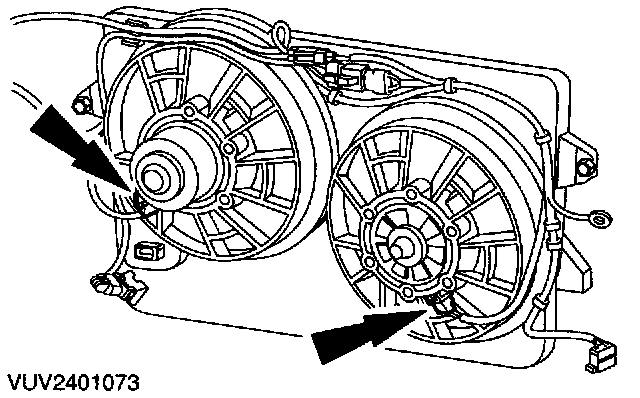

7. Disconnect the fan motor electrical connectors.

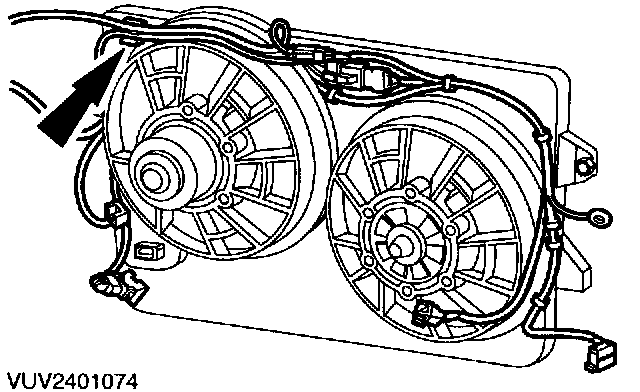

8. Remove the wiring harness from the fan shroud.





9. Remove the motor, fans, and shroud assembly.

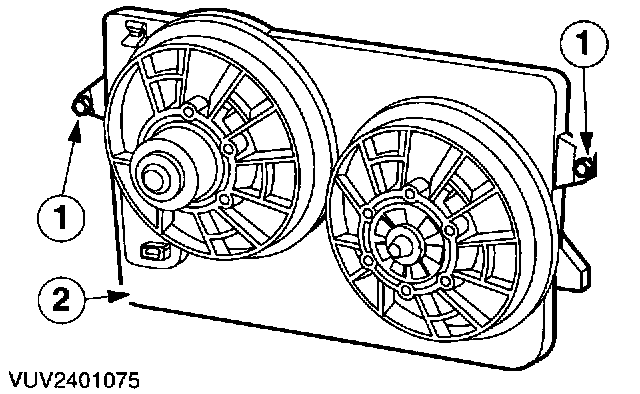

1 Remove the nuts.
2 Remove the assembly.

Installation

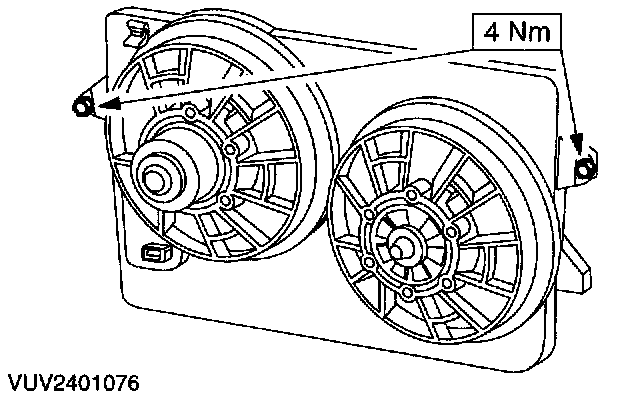

1. To install, reverse the removal procedure.
