System Diagram

DETAILED DIAGRAMS

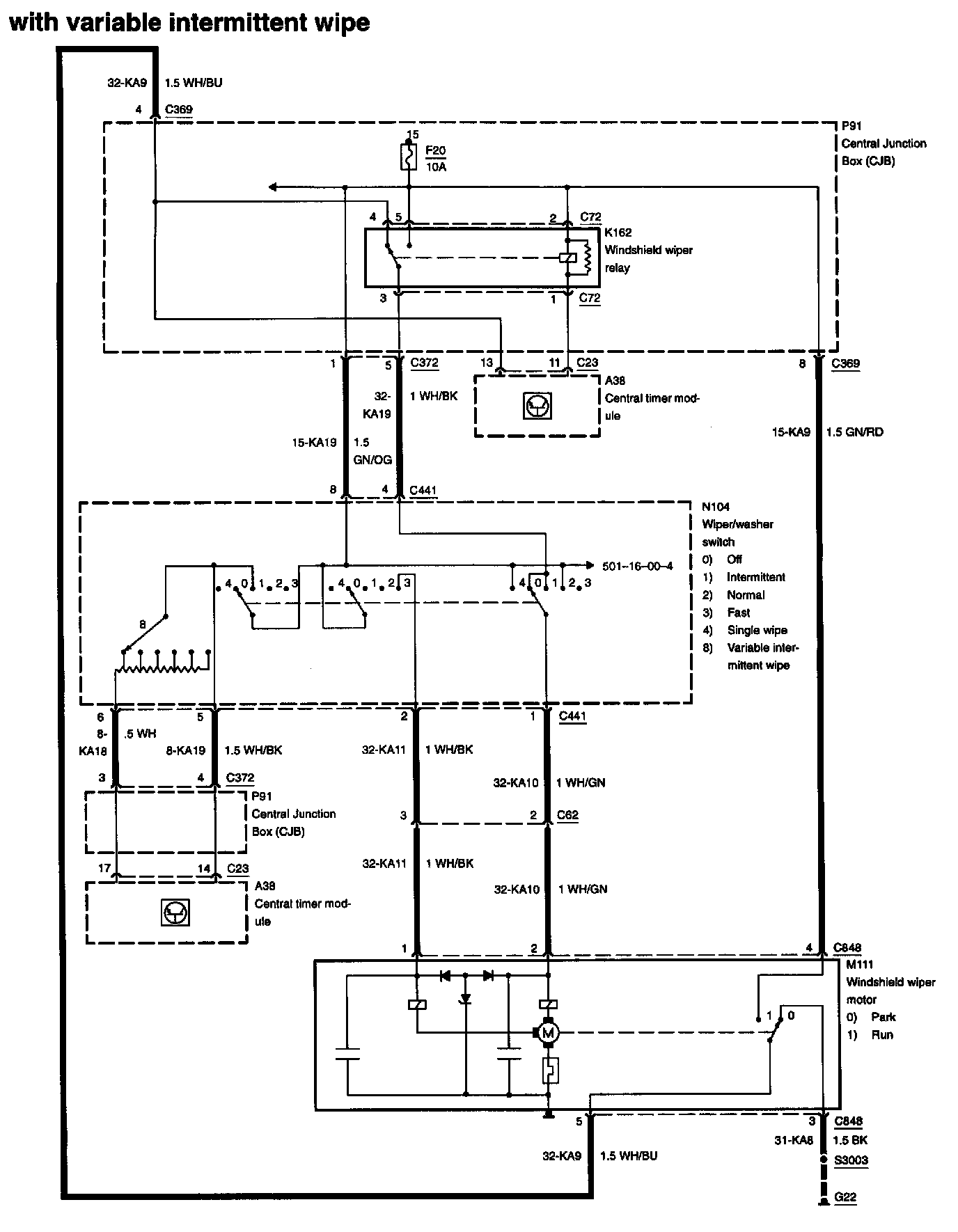

Diagram 501-16-00-1:






Central Junction Box
Central Timer Module
Fuse F20
Windshield Wiper Motor
Windshield Wiper Relay
Wiper/Washer Switch

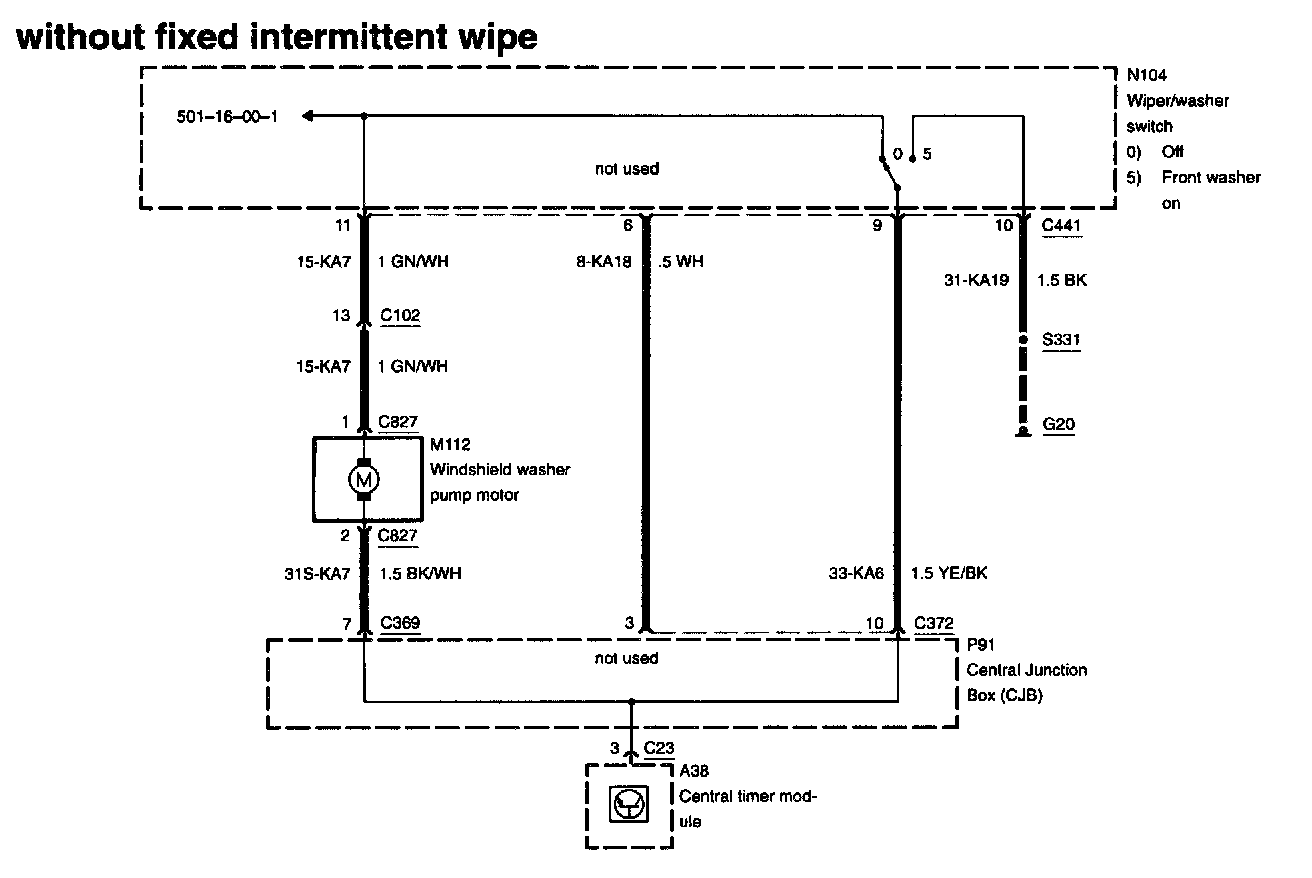

Diagram 501-16-00-2:






Central Junction Box
Central Timer Module
Windshield Washer Pump Motor
Wiper/Washer Switch


Diagram 501-16-00-3:






Central Junction Box
Central Timer Module
Fuse F20
Windshield Wiper Motor
Windshield Wiper Relay
Wiper/Washer Switch


Diagram 501-16-00-4:






Central Junction Box
Central Timer Module
Windshield Washer Pump Motor
Wiper/Washer Switch
