System Diagram

DETAILED DIAGRAMS

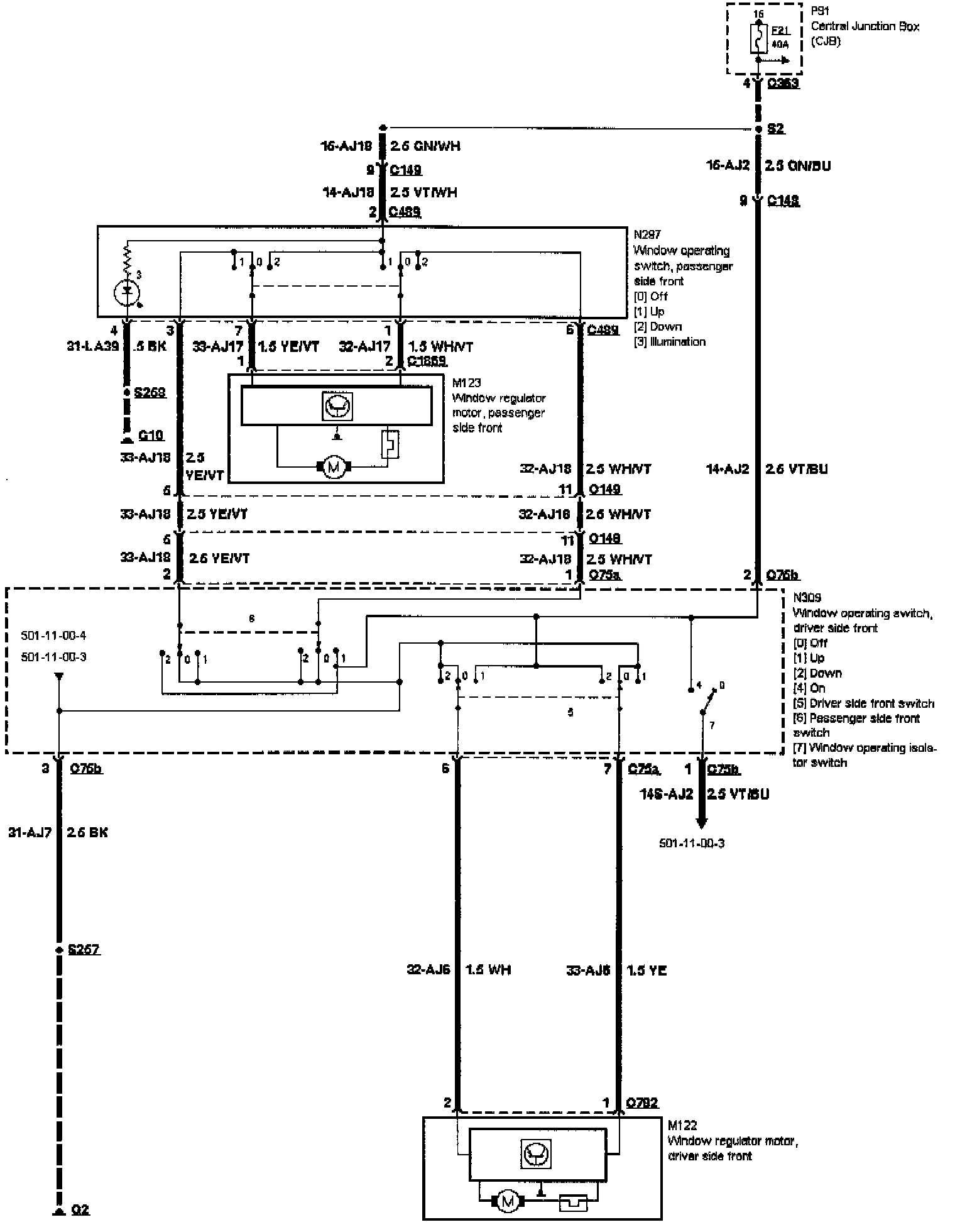

Diagram 501-11-00-1:

Central Junction Box
Driver Side Front Switch
Fuse F21
Illumination
One-Touch Window Relay
Passenger Side Front Switch
Window Operating Isolator Switch
Window Operating Switch, Driver Side Front
Window Operating Switch, Passenger Side Front
Window Regulator Motor, Driver Side Front
Window Regulator Motor, Passenger Side Front

Diagram 501-11-00-2:

Central Junction Box
Window Operating Switch, Driver Side Front
Window Operating Switch, Passenger Side Front
Window Regulator Motor, Driver Side Front
Window Regulator Motor, Passenger Side Front

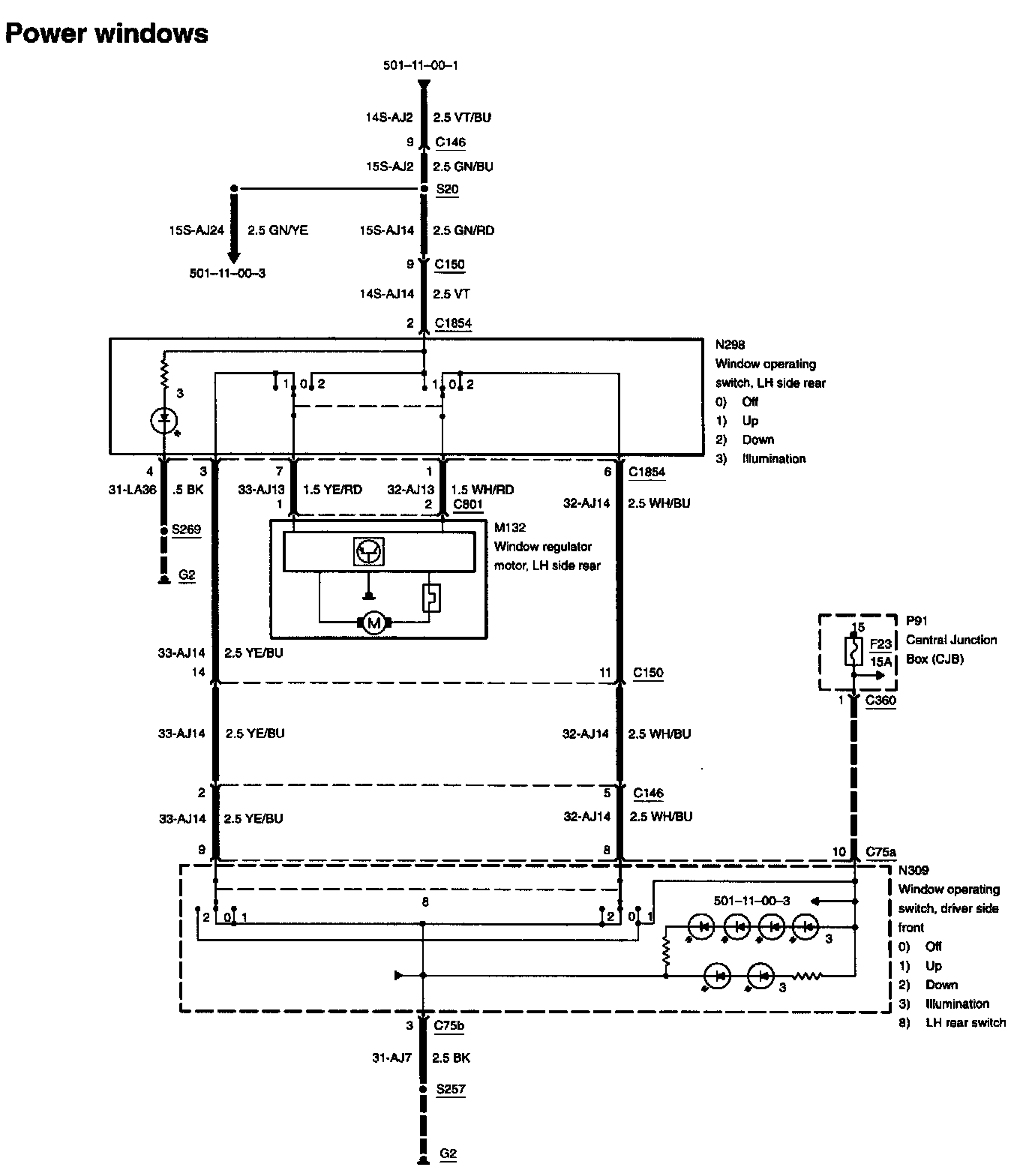

Diagram 501-11-00-3:

Central Junction Box
Fuse F23
Illumination
LH Rear Switch
Window Operating Switch, Driver Side Front
Window Operating Switch, LH Side Rear
Window Regulator Motor, LH Side Rear

Diagram 501-11-00-4:

Illumination
Window Operating Switch, Driver Side Front
Window Operating Switch, RH Side Rear
Window Regulator Motor, RH Side Rear

Diagram 501-11-00-5:

Battery Junction Box
Central Junction Box
Central Timer Module
Fuse F29
Fuse F52
Rear Window Defrost Grid
Rear Window Defrost Relay
Rear Window Defrost Switch


RELATED DIAGRAM

Diagram 413-00-00-2:
