System Diagram

DETAILED DIAGRAMS

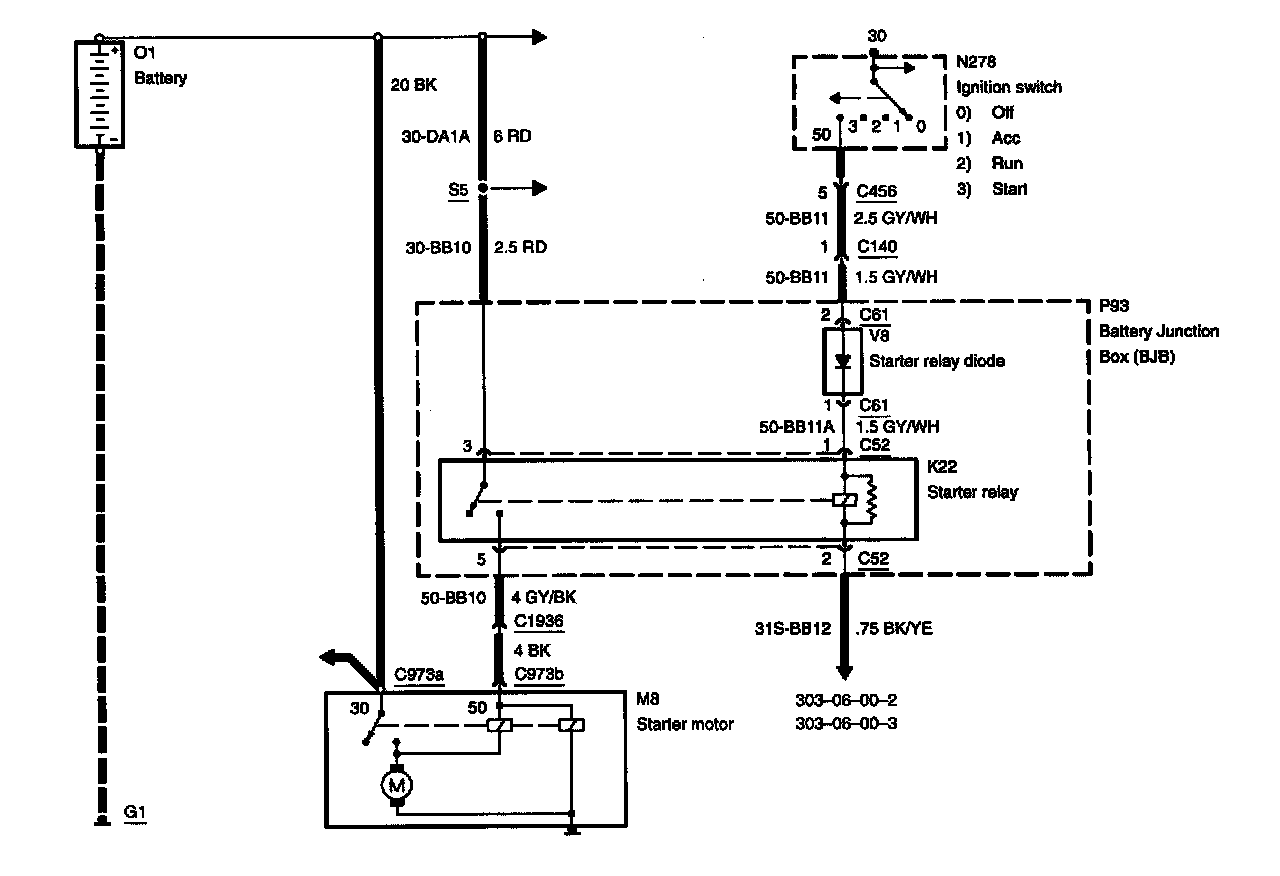

Diagram 303-06-00-1:






Battery
Battery Junction Box
Ignition Switch
Starter Motor
Starter Relay
Starter Relay Diode

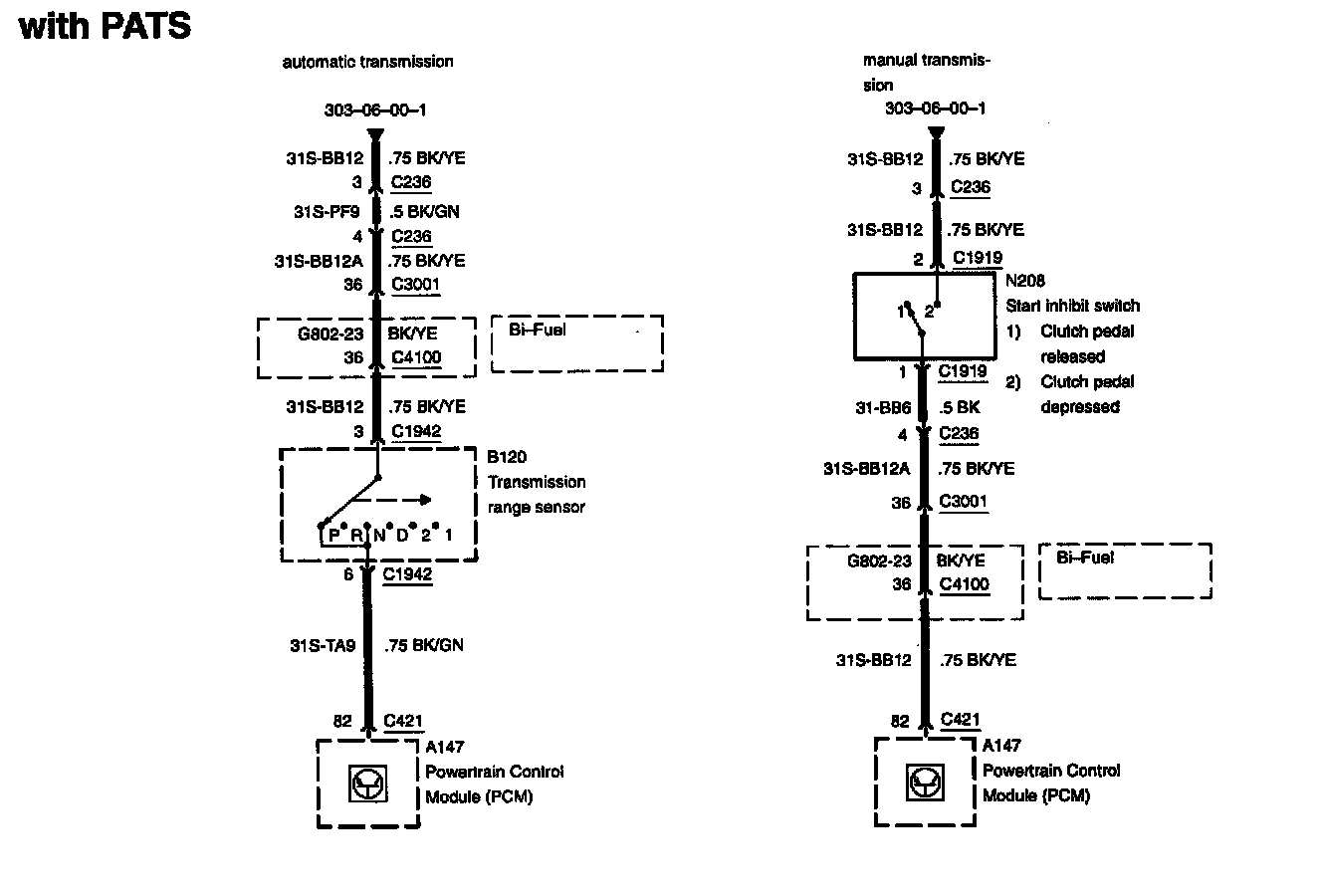

Diagram 303-06-00-2:






Powertrain Control Module
Start Inhibit Switch
Transmission Range Sensor

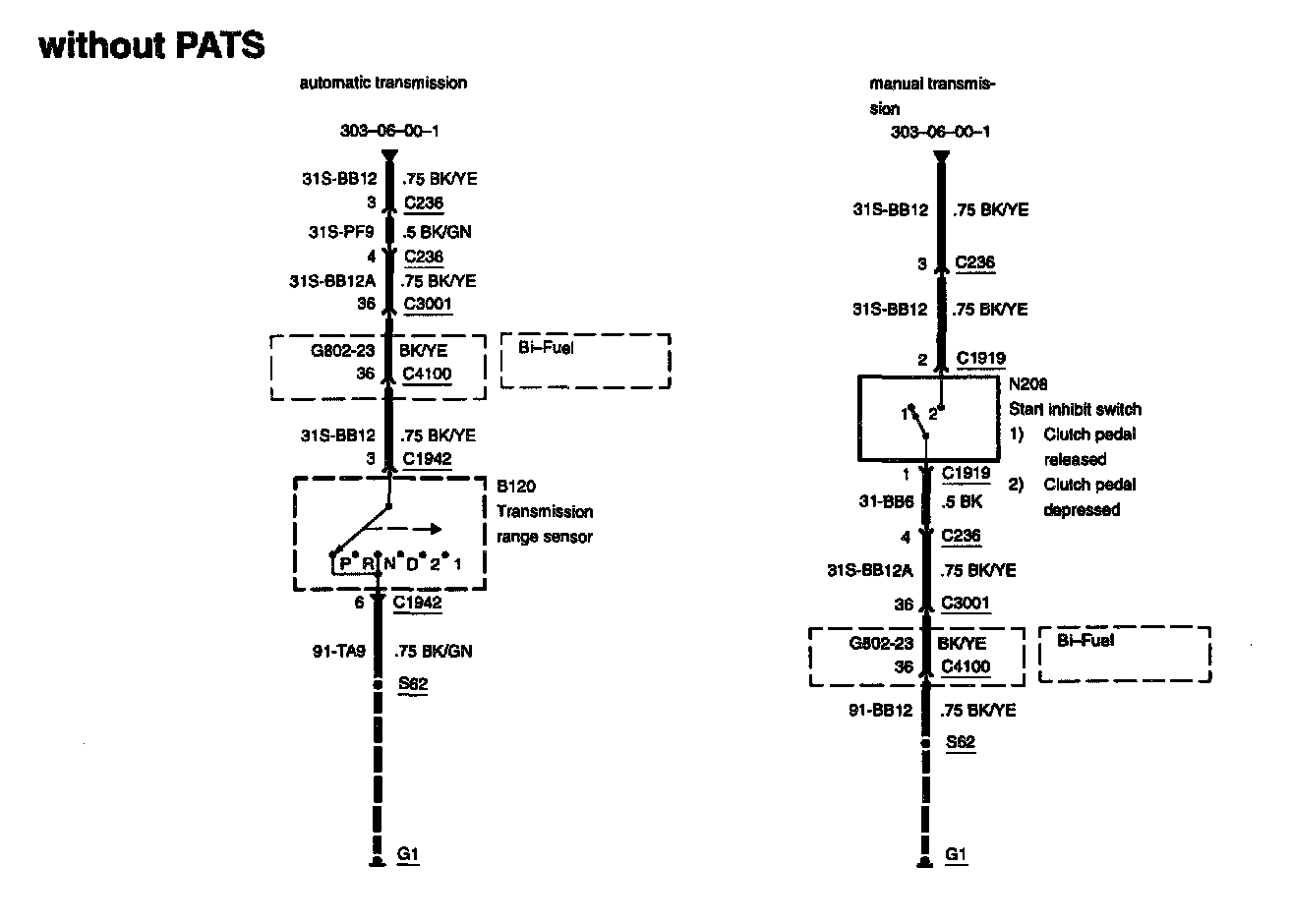

Diagram 303-06-00-3:






Start Inhibit Switch
Transmission Range Sensor
