System Diagram

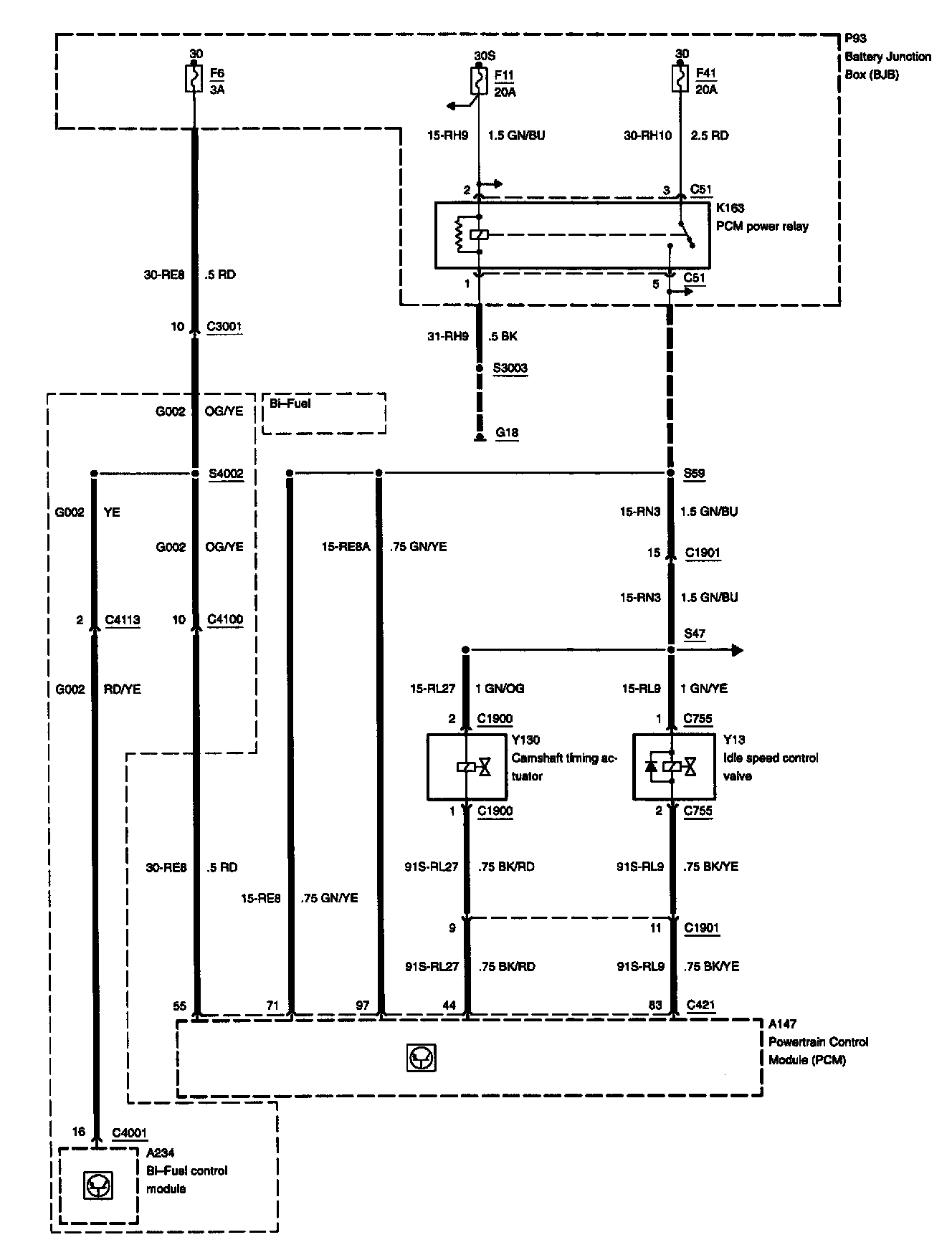

DETAILED DIAGRAMSDiagram 303-14a-00-1:
Battery Junction Box
Bi-Fuel Control Module
Camshaft Timing Actuator
Fuse F6
Fuse F11
Fuse F41
Idle Speed Control Valve
Powertrain Control Module
Powertrain Control Module Power Relay

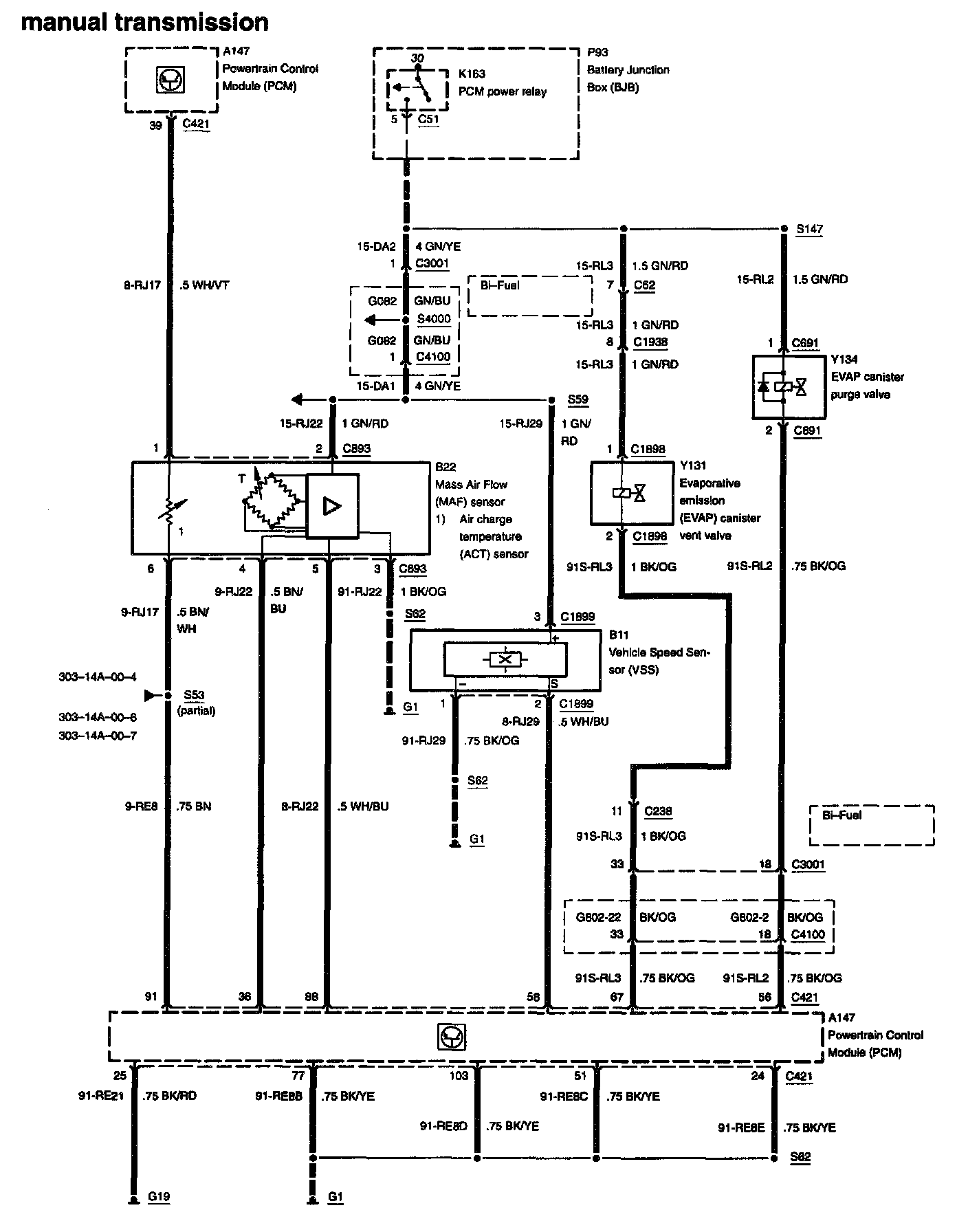

Diagram 303-14a-00-2:
Air Charge Temperature Sensor
Battery Junction Box
Evaporative Canister Purge Valve
Evaporative Emission Canister Vent Valve
Mass Air Flow Sensor
Powertrain Control Module
Powertrain Control Module Power Relay
Vehicle Speed Sensor

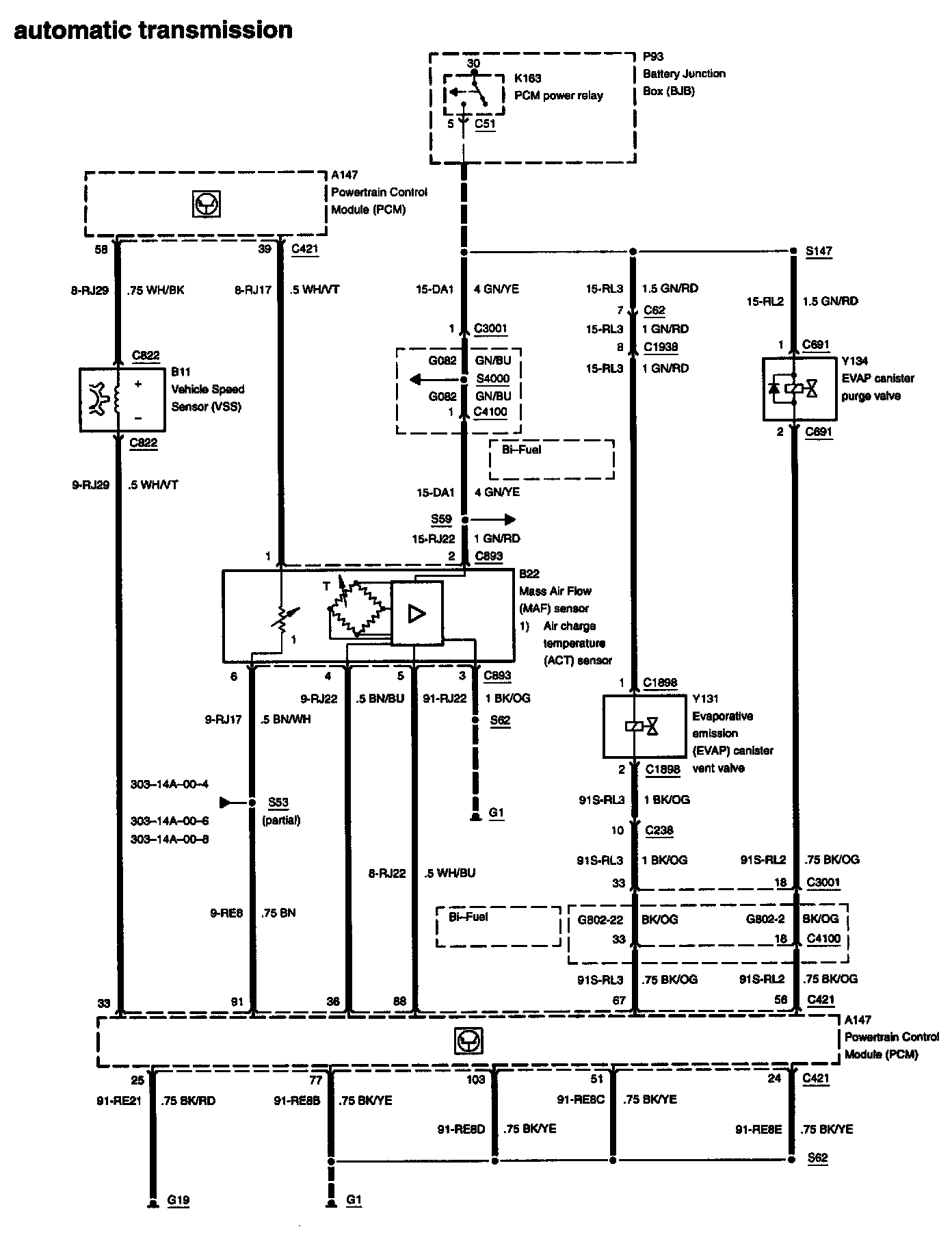

Diagram 303-14a-00-3:
Air Charge Temperature Sensor
Battery Junction Box
Evaporative Canister Purge Valve
Evaporative Emission Canister Vent Valve
Mass Air Flow Sensor
Powertrain Control Module
Powertrain Control Module Power Relay
Vehicle Speed Sensor

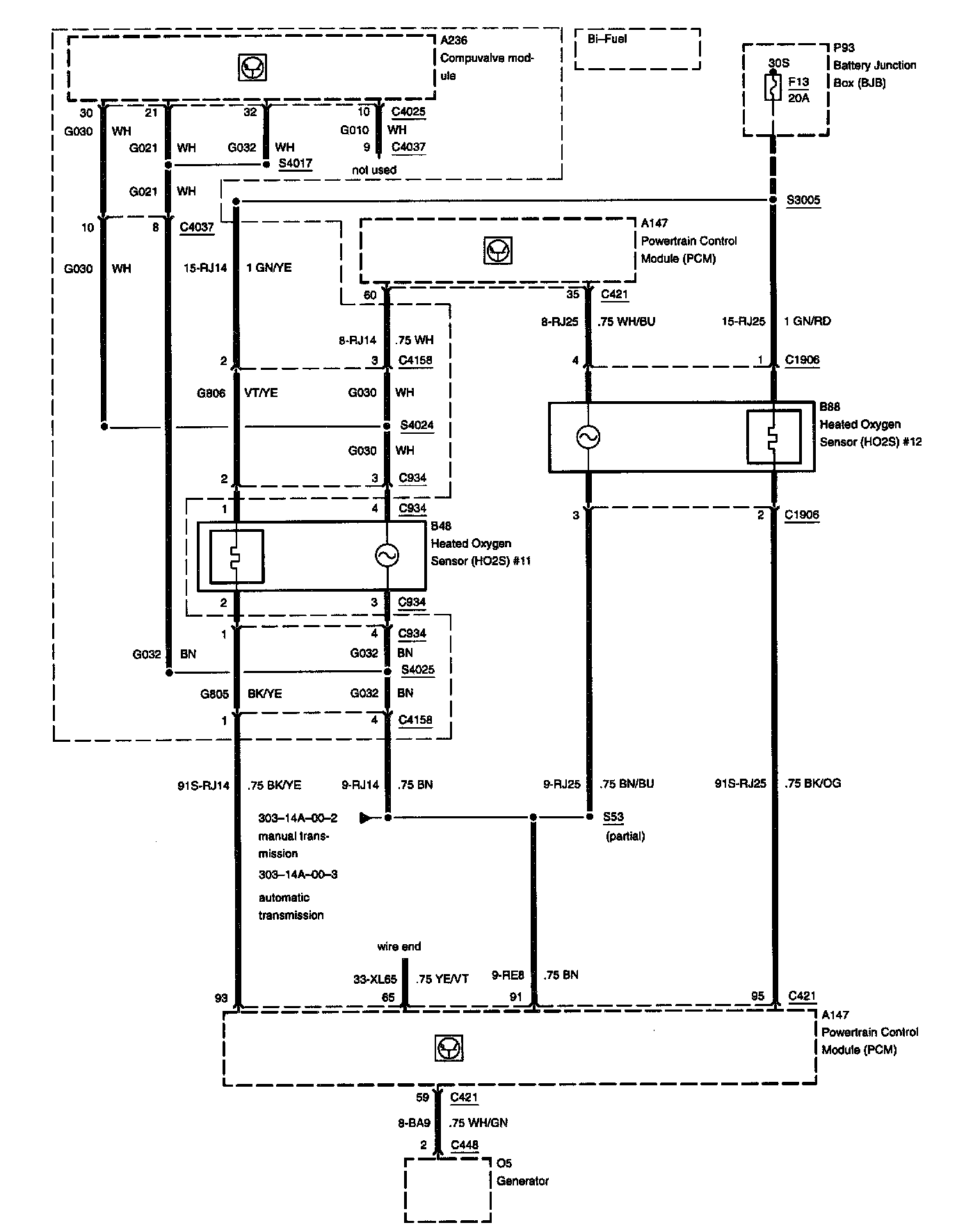

Diagram 303-14a-00-4:
Battery Junction Box
Compuvalve Module
Fuse F13
Generator
Heated Oxygen Sensor #11
Heated Oxygen Sensor #12
Powertrain Control Module

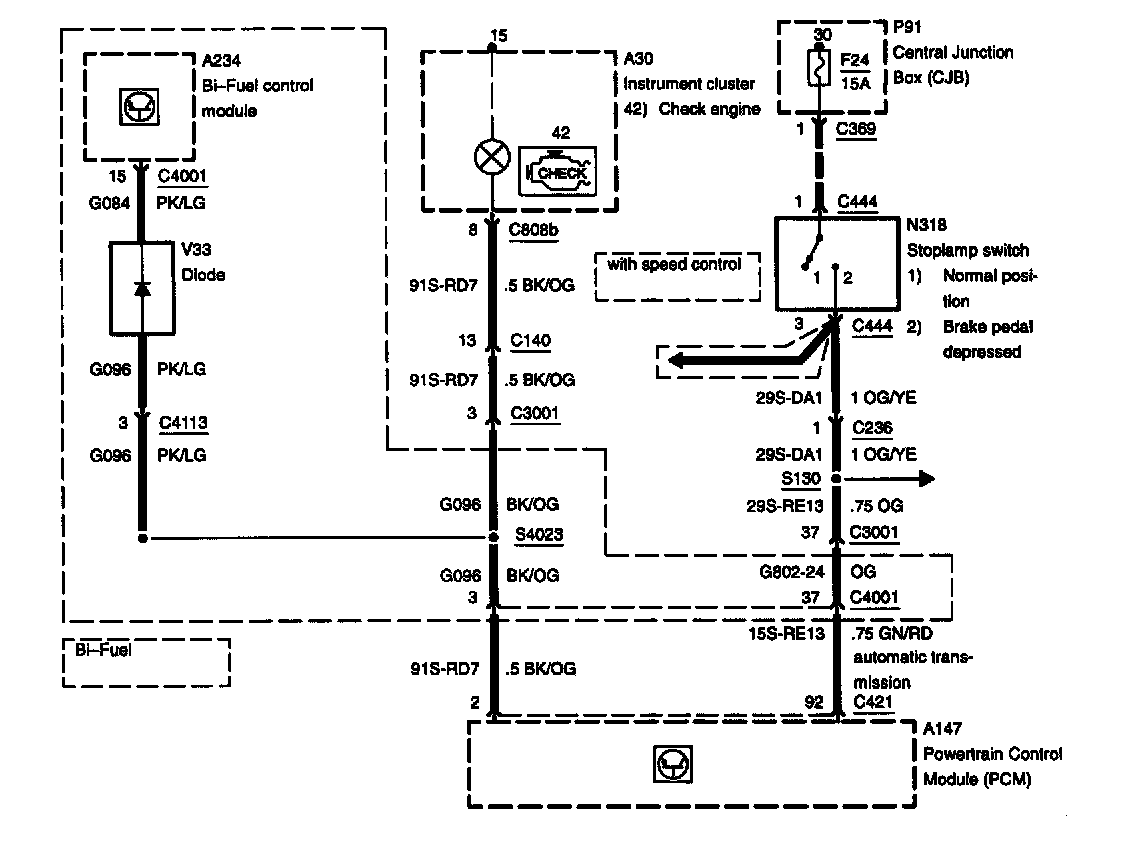

Diagram 303-14a-00-5:
Bi-Fuel Control Module
Central Junction Box
Diode
Fuse F24
Instrument Cluster
Powertrain Control Module
Stoplamp Switch

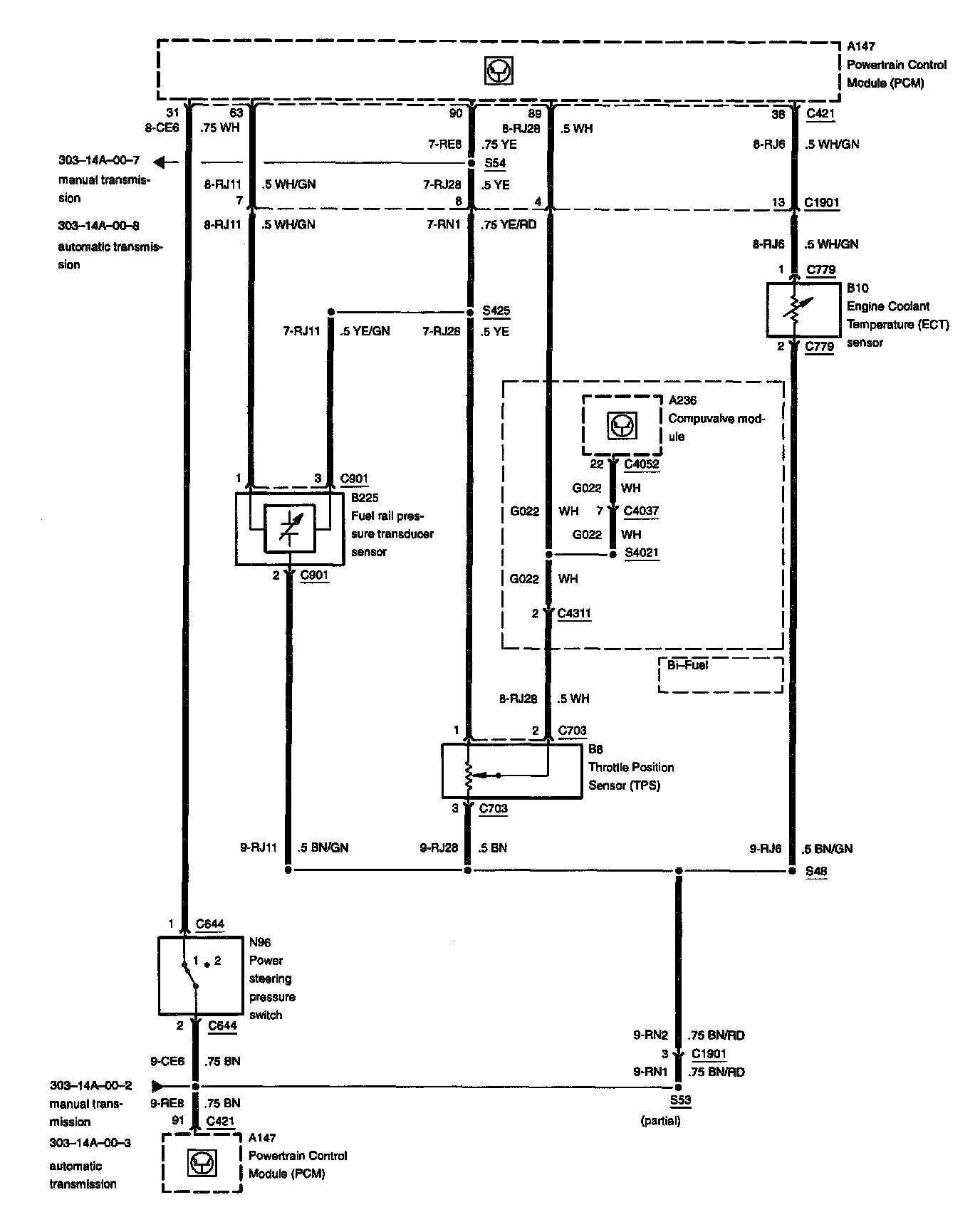

Diagram 303-14a-00-6:
Compuvalve Module
Engine Coolant Temperature Sensor
Fuel Rail Pressure Transducer Sensor
Powertrain Control Module
Power Steering Pressure Switch
Throttle Position Sensor

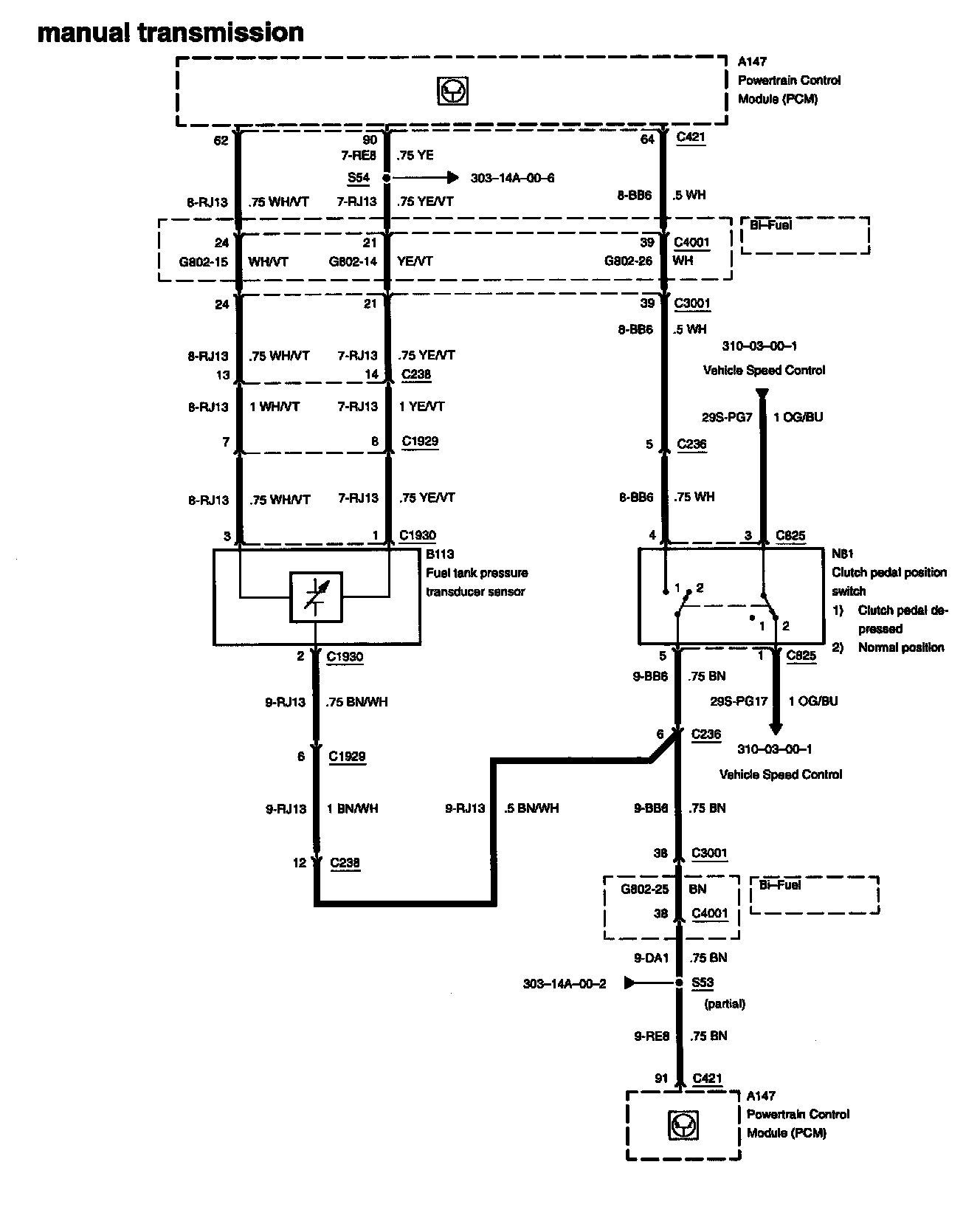

Diagram 303-14a-00-7:
Clutch Pedal Position Switch
Fuel Tank Pressure Transducer Sensor
Powertrain Control Module

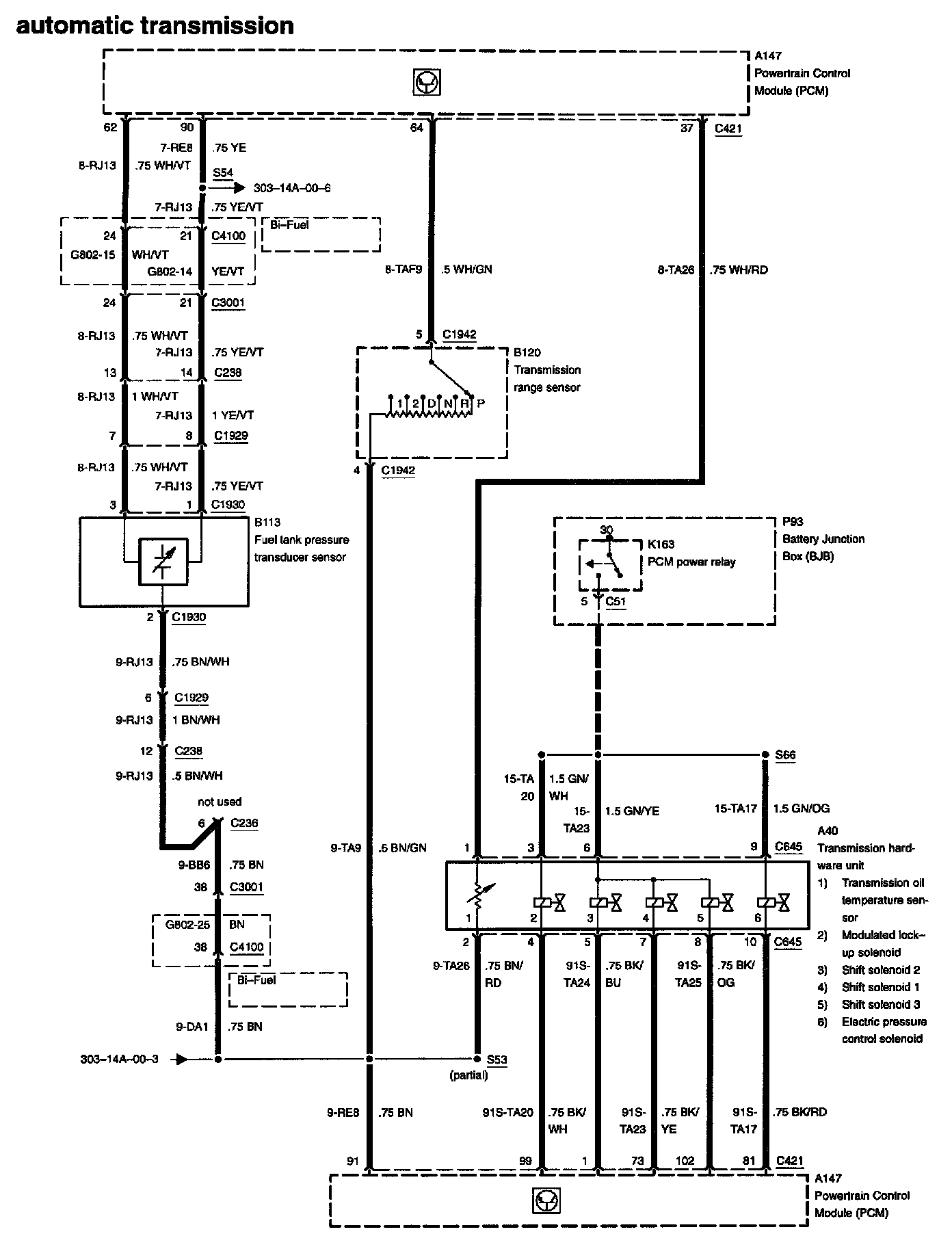

Diagram 303-14a-00-8:
Battery Junction Box
Electric Pressure Control Solenoid
Fuel Tank Pressure Transducer Sensor
Modulated Lock-Up Solenoid
Powertrain Control Module
Transmission Hardware Unit
Transmission Oil Temperature Sensor
Transmission Range Sensor
Powertrain Control Module Power Relay
Shift Solenoid 1
Shift Solenoid 2
Shift Solenoid 3

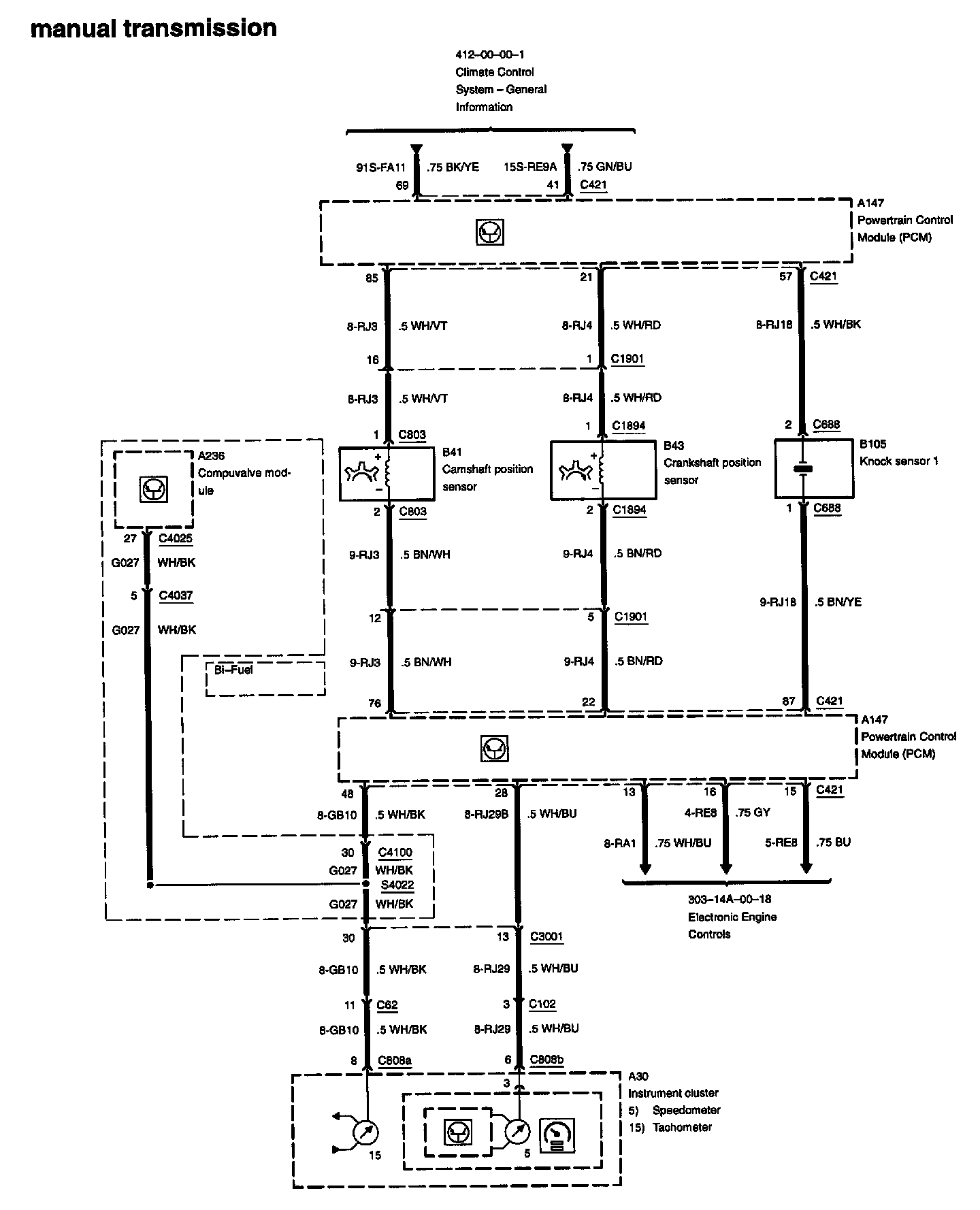

Diagram 303-14a-00-9:
Camshaft Position Sensor
Central Junction Box
Compuvalve Module
Crankshaft Position Sensor
Instrument Cluster
Knock Sensor 1
Powertrain Control Module
Speedometer
Tachometer

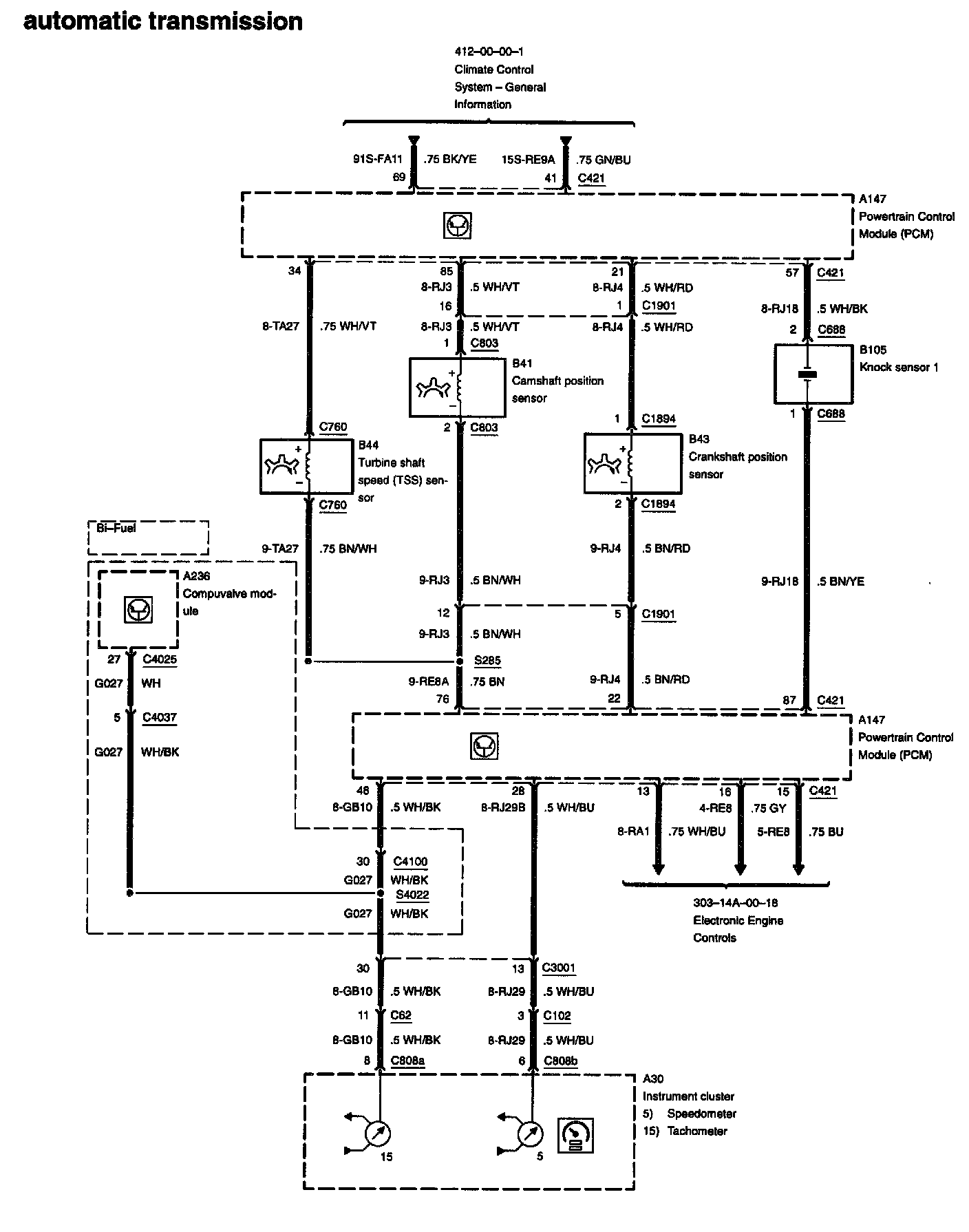

Diagram 303-14a-00-10:
Camshaft Position Sensor
Compuvalve Module
Crankshaft Position Sensor
Instrument Cluster
Knock Sensor 1
Powertrain Control Module
Speedometer
Tachometer
Turbine Shaft Speed Sensor
Diagram 303-14a-00-11:
Battery Junction Box
Fuel Pump
Fuel Pump Driver Module
Fuel Pump Relay
Fuel Tank Unit
Fuse 41
Inertia Fuel Shutoff Switch
Powertrain Control Module
Powertrain Control Module Power Relay

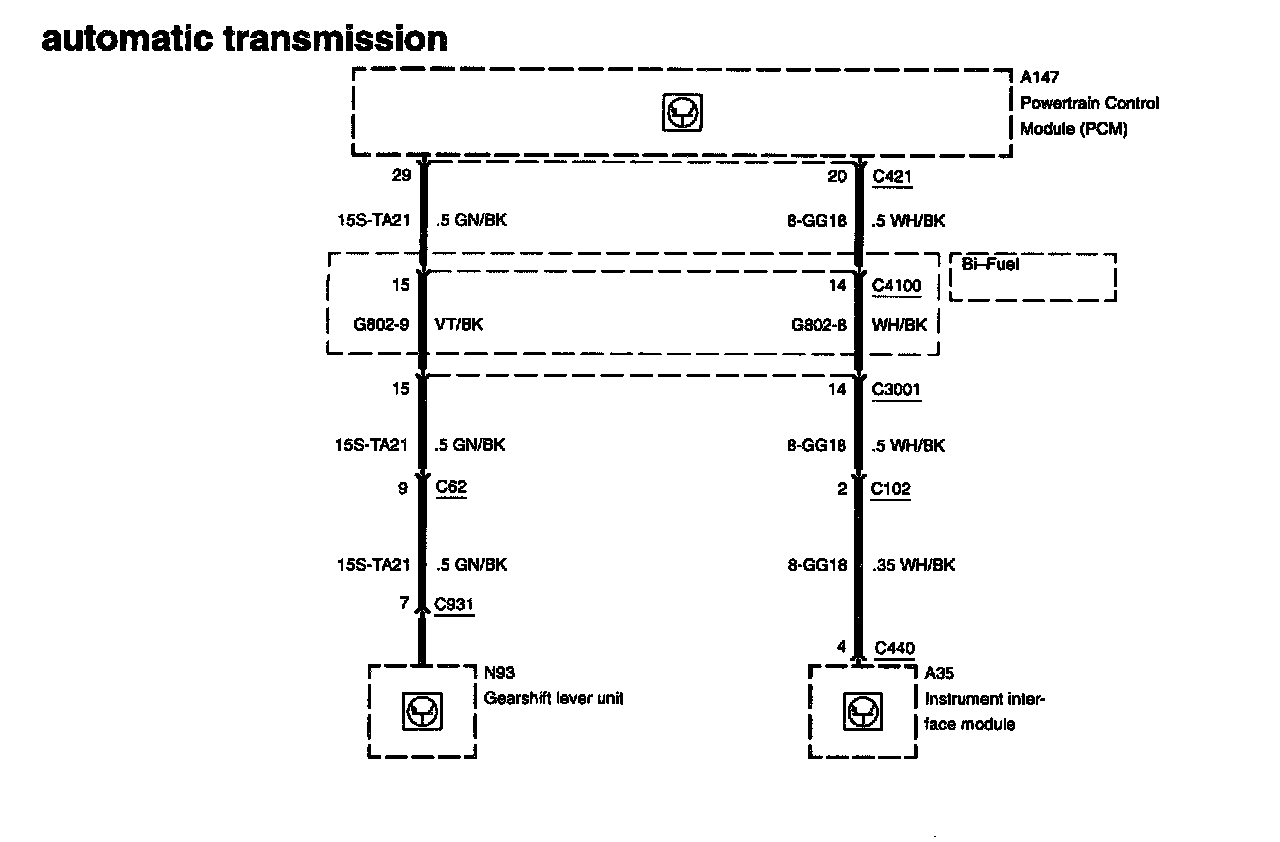

Diagram 303-14a-00-12:
Gearshift Lever Unit
Instrument Interface Module
Powertrain Control Module

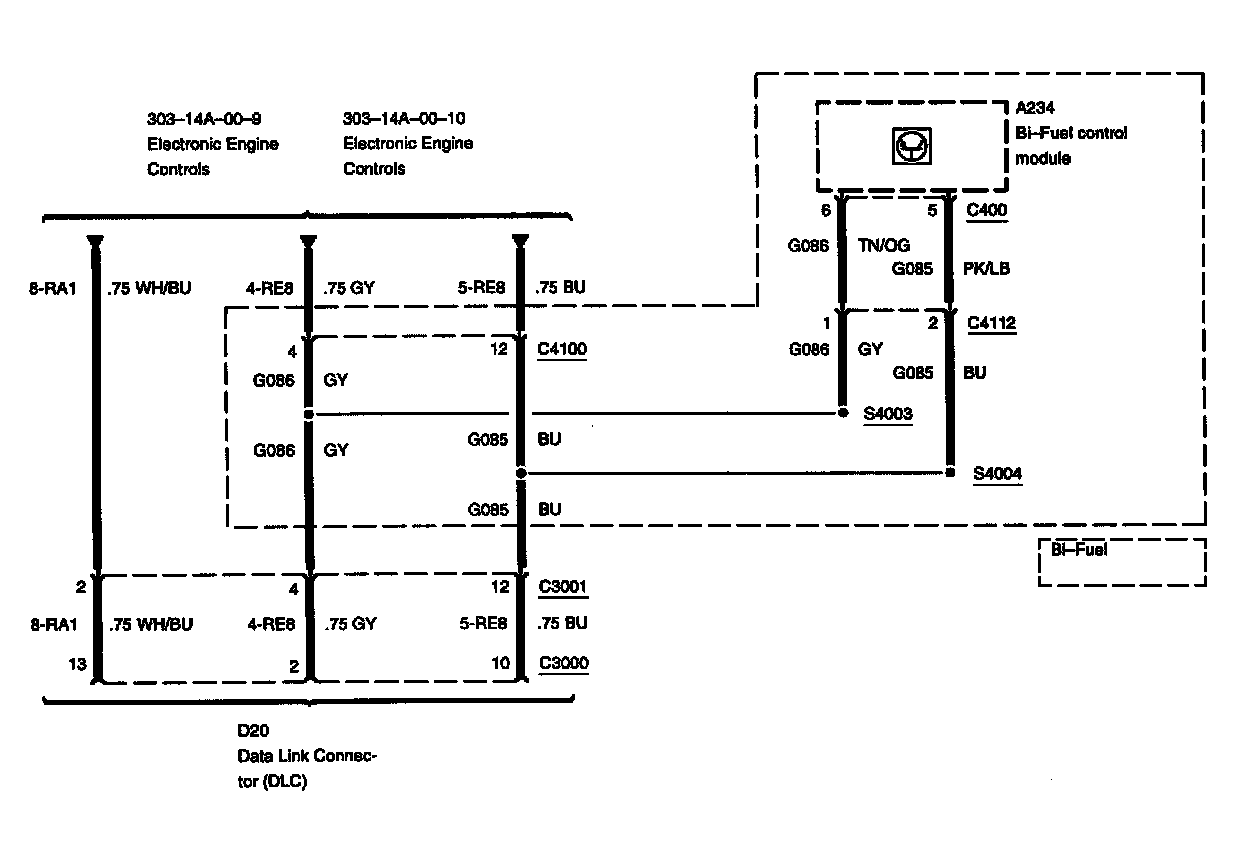

Diagram 303-14a-00-18:
Bi-Fuel Control Module
Data Link Connector

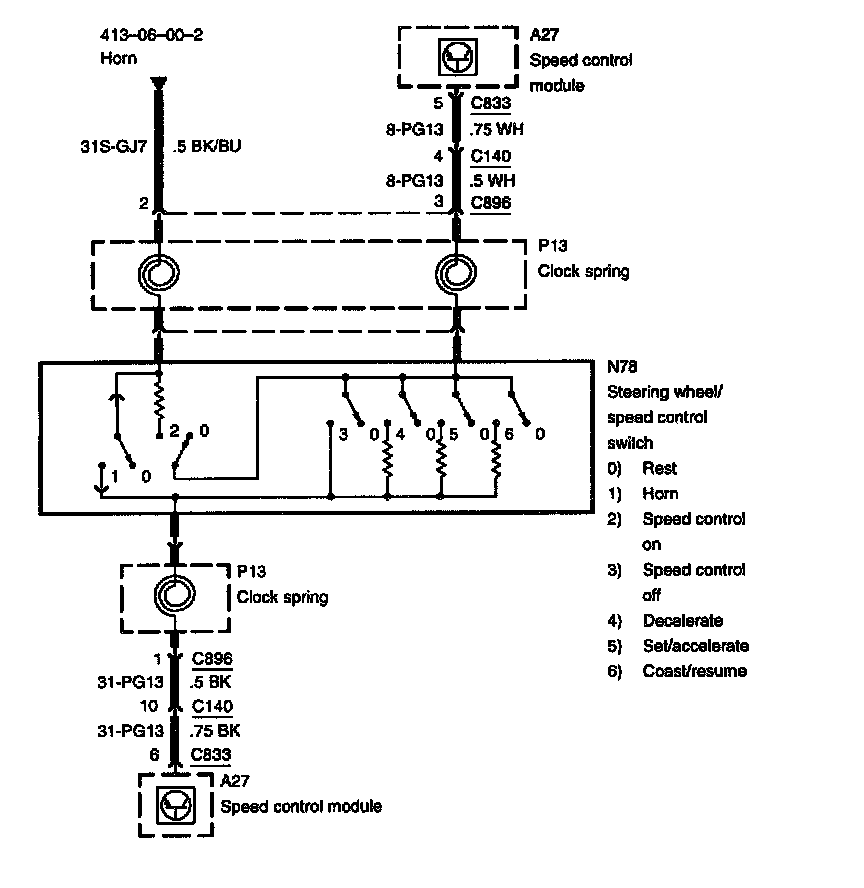

RELATED DIAGRAMS
