G10

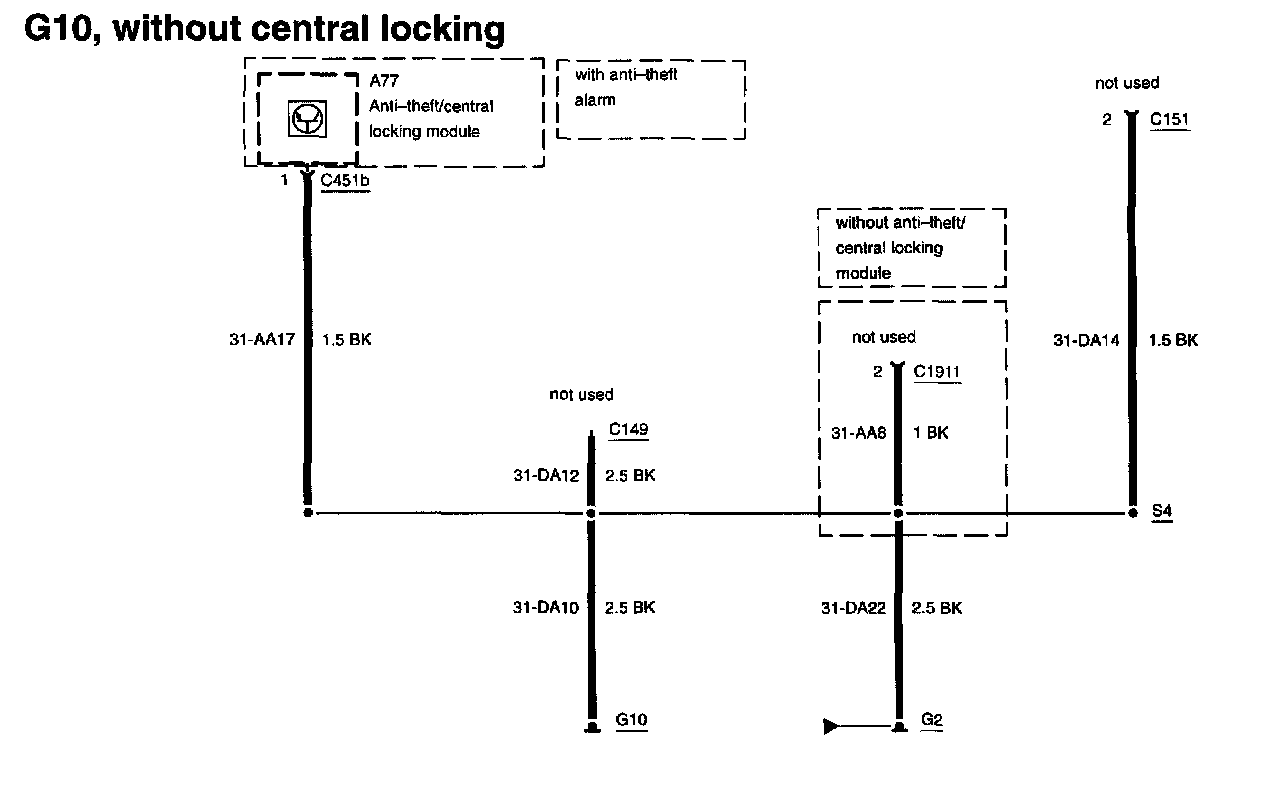

Diagram 700-04-00-9:

Anti-Theft Central Locking Module

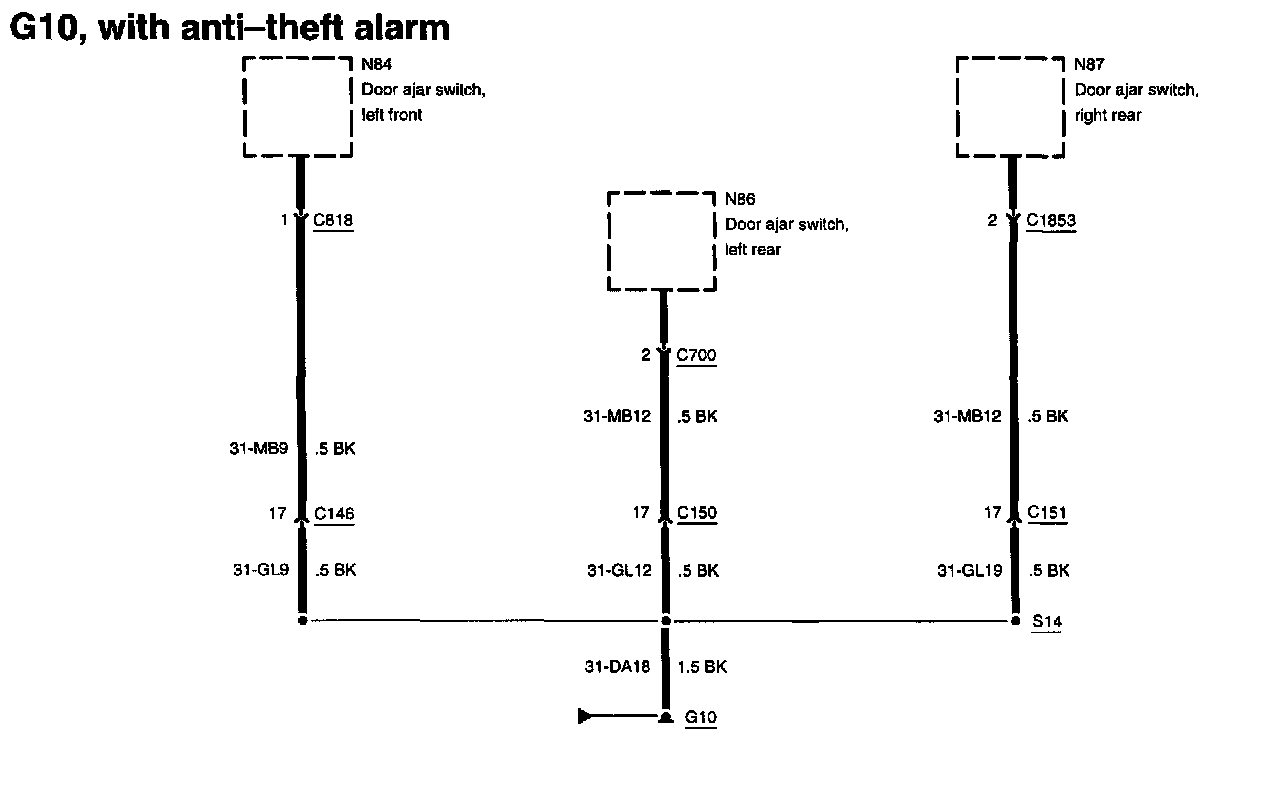

Diagram 700-04-00-10:

Door Ajar Switch, Left Front
Door Ajar Switch, Left Rear
Door Ajar Switch, Right Rear

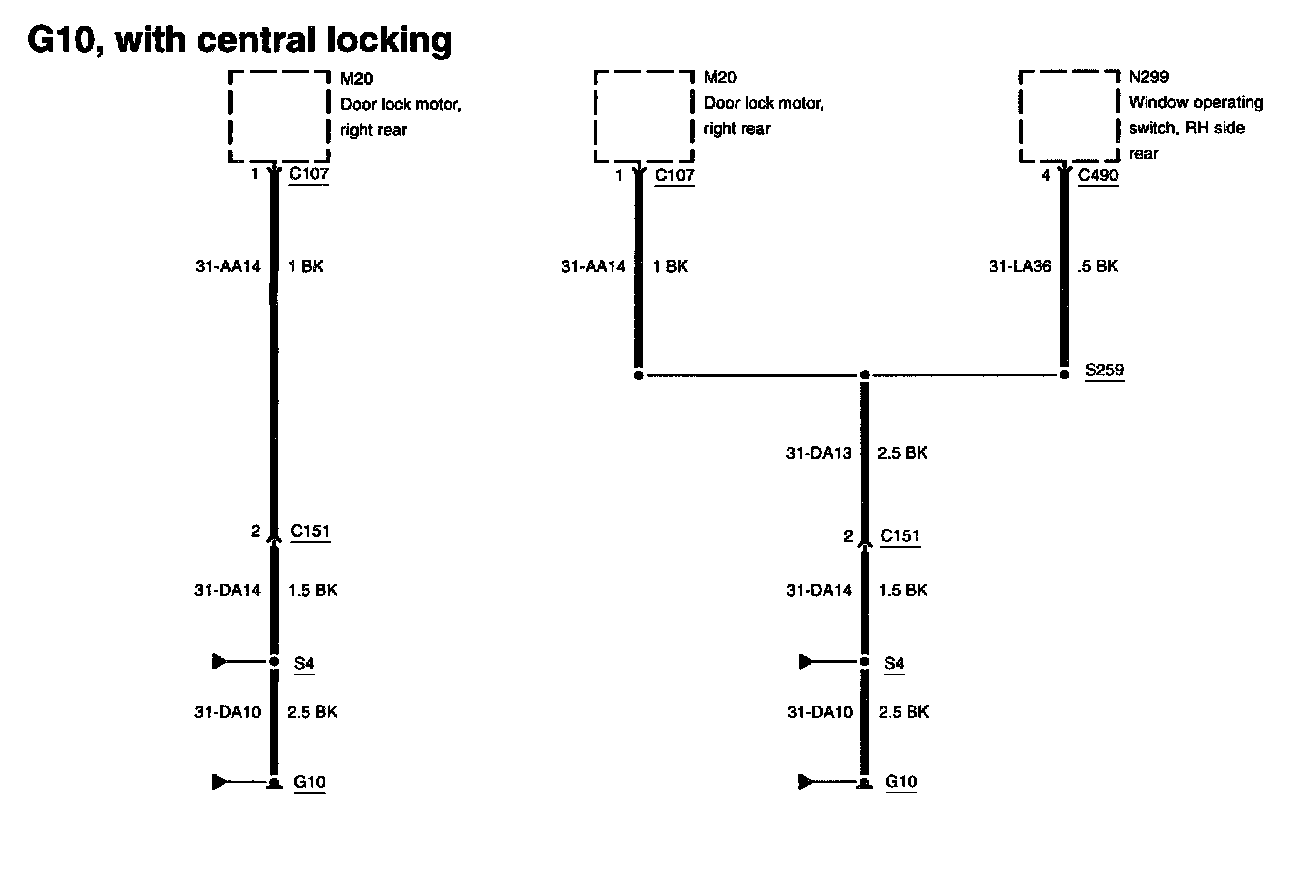

Diagram 700-04-00-11:

Door Lock Motor, Right Rear
Window Operating Switch, RH Side Rear Rear

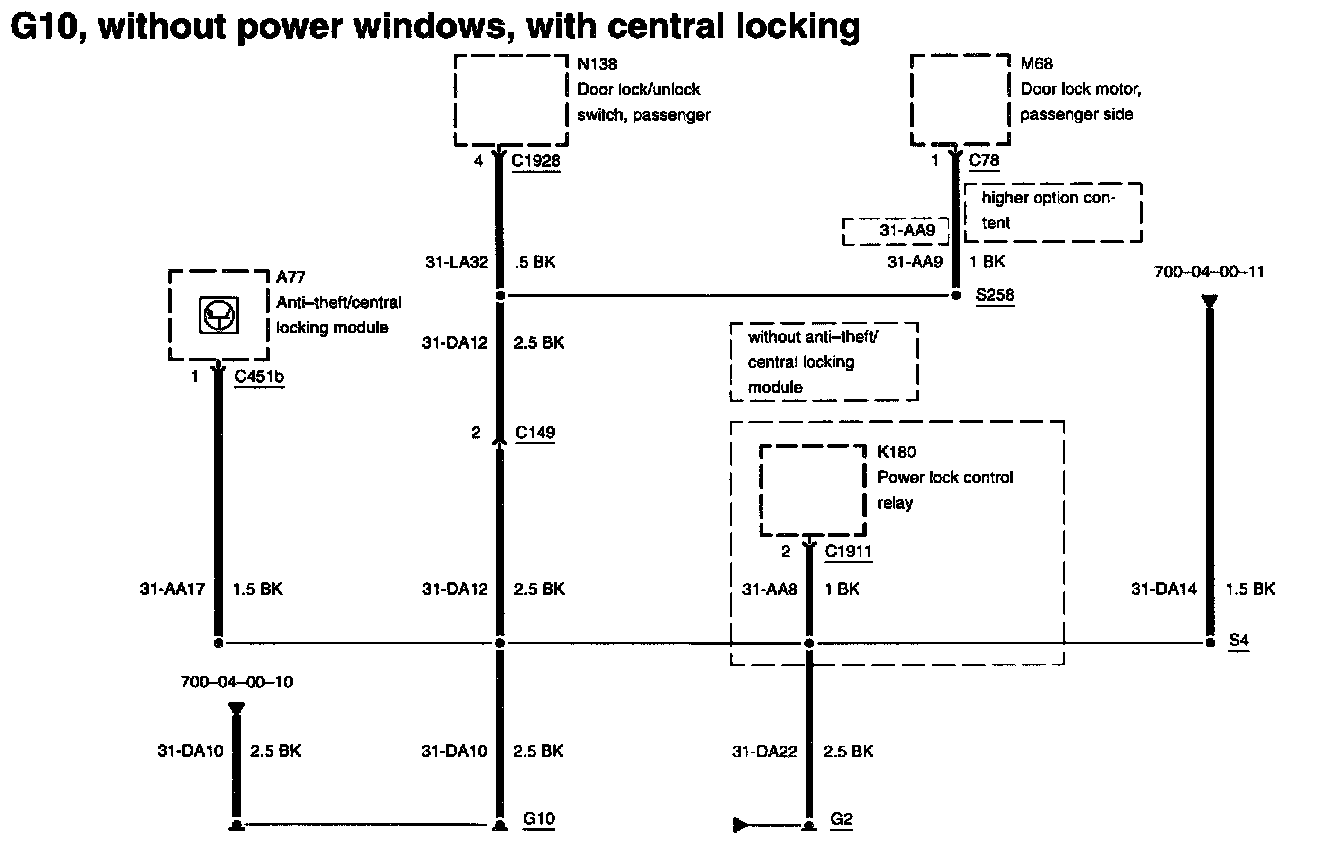

Diagram 700-04-00-12:

Anti-Theft Central Locking Module
Door Lock Motor, Passenger Side
Door Lock/Unlock Switch, Passenger
Power Lock Control Relay

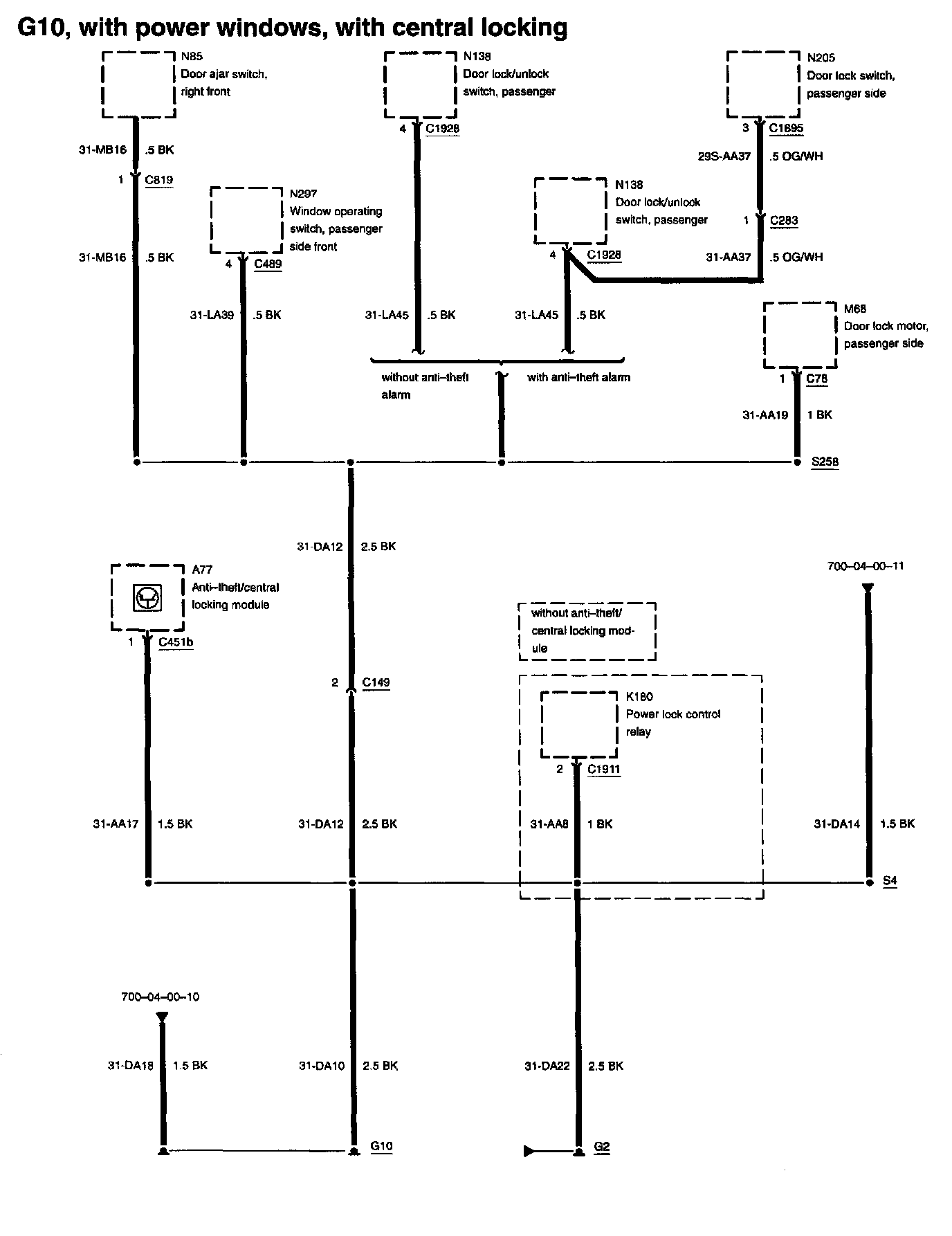

Diagram 700-04-00-13:

Anti-Theft/Central Locking Module
Door Ajar Switch, Right Front
Door Lock Motor, Passenger Side
Door Lock Switch, Passenger Side
Door Lock/Unlock Switch, Passenger
Power Lock Control Relay
Window Operating Switch, Passenger Side Front
