G1

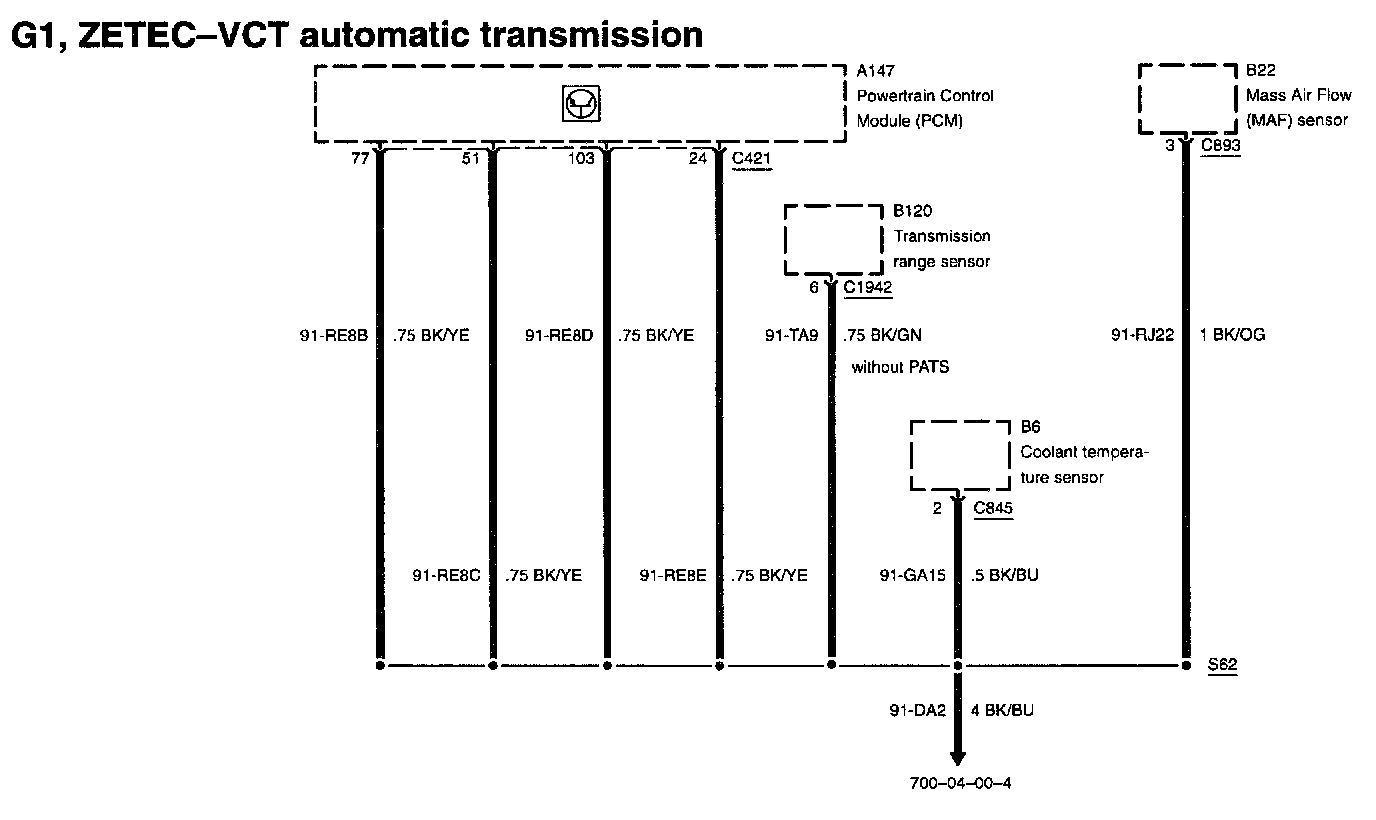

Diagram 700-04-00-2:






Coolant Temperature Sensor
Mass Air Flow Sensor
Powertrain Control Module
Transmission Range Sensor

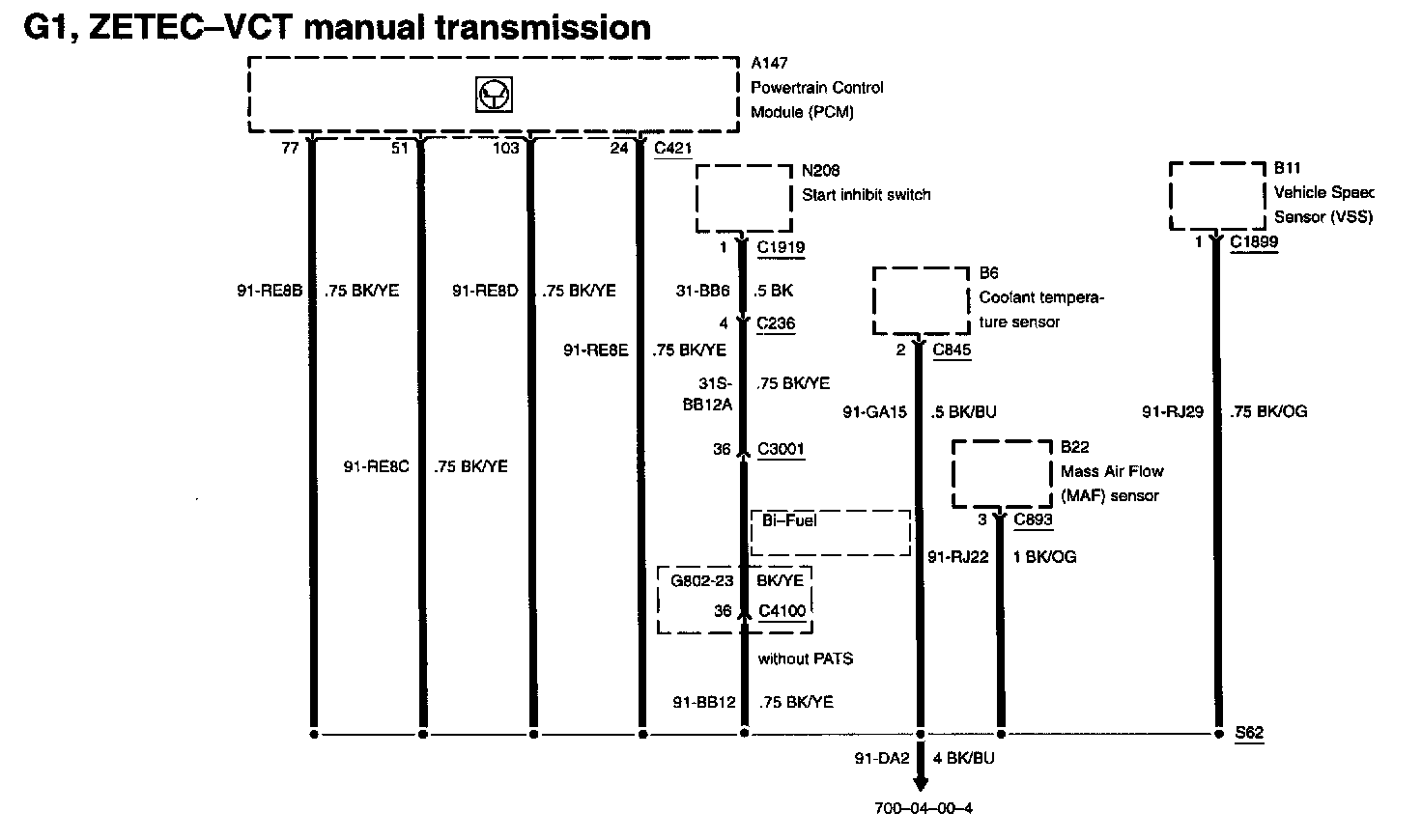

Diagram 700-04-00-3:






Coolant Temperature Sensor
Mass Air Flow Sensor
Powertrain Control Module
Start Inhibit Switch
Vehicle Speed Sensor

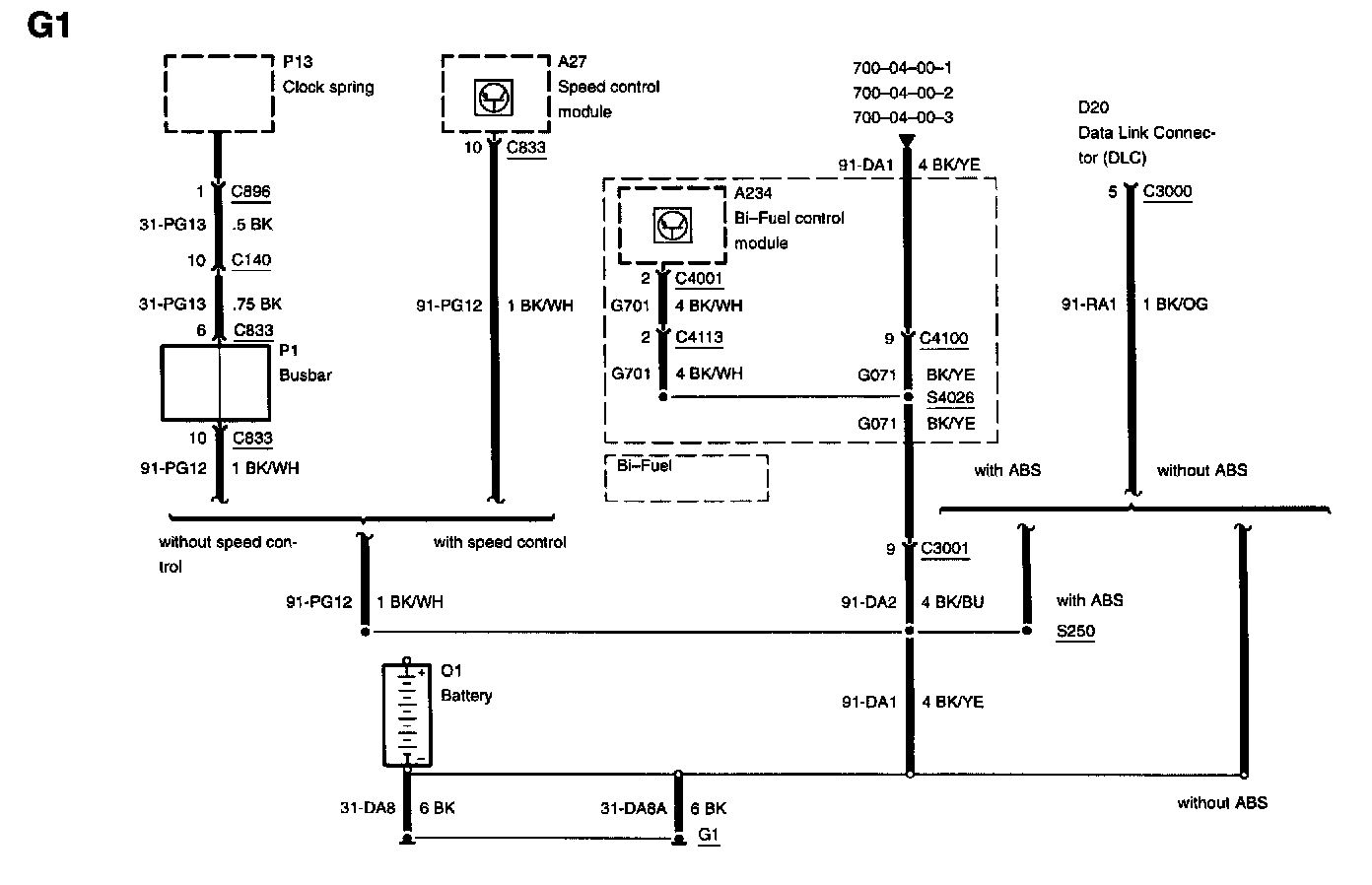

Diagram 700-04-00-4:






Battery
Bi-Fuel Control Module
Busbar
Clock Spring
Data Link Connector
Speed Control Module
