Interior Lighting

DETAILED DIAGRAMS

Diagram 417-02-00-1:

Battery Junction Box
Central Junction Box
Central Timer Module
Courtesy Lamp Relay
Footwell Lamp, Left Front
Footwell Lamp, Right Front
Fuse F34
Fuse F52
Illumination Dimmer
Interior Lamp, Front

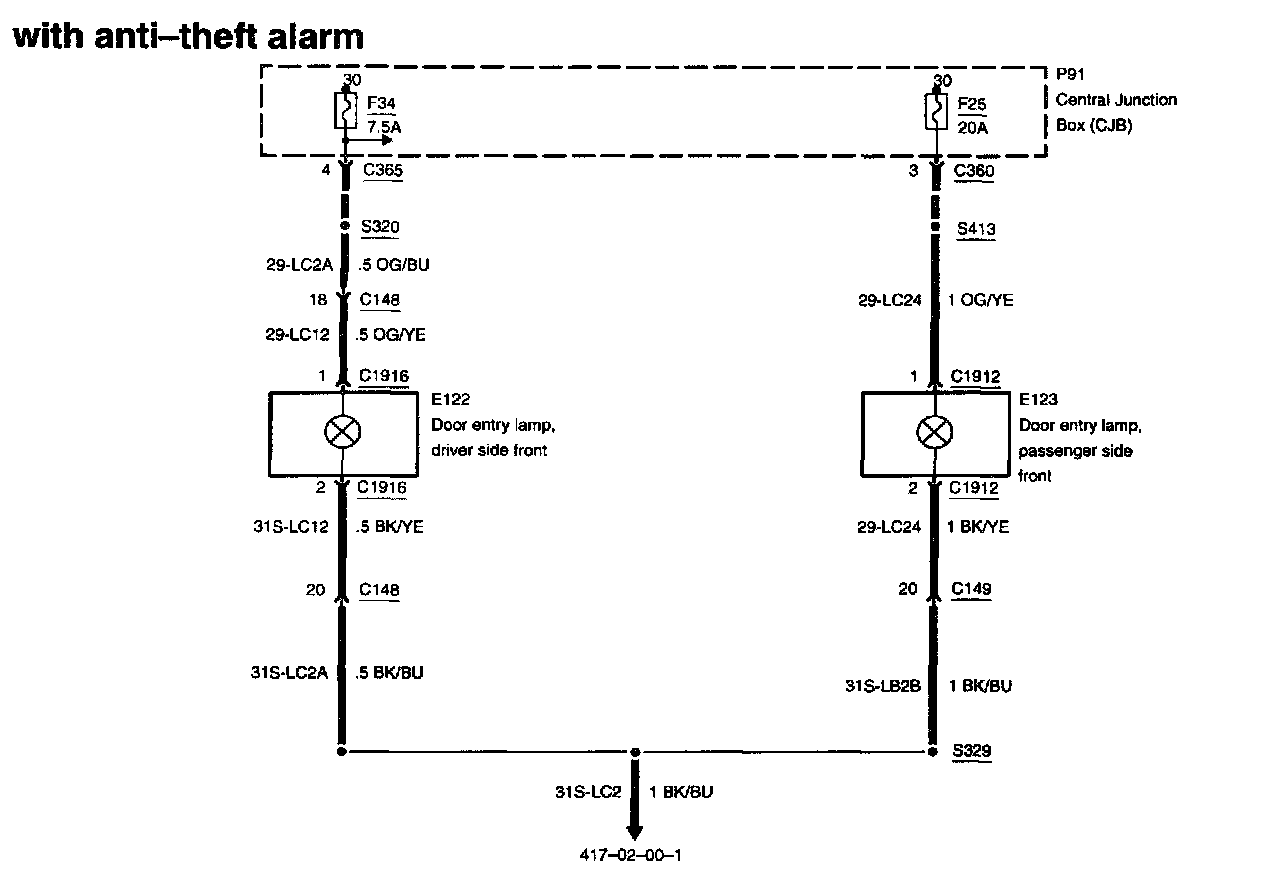

Diagram 417-02-00-2:

Central Junction Box
Door Entry Lamp, Driver Side Front
Door Entry Lamp, Passenger Side Front
Fuse F25
Fuse F34

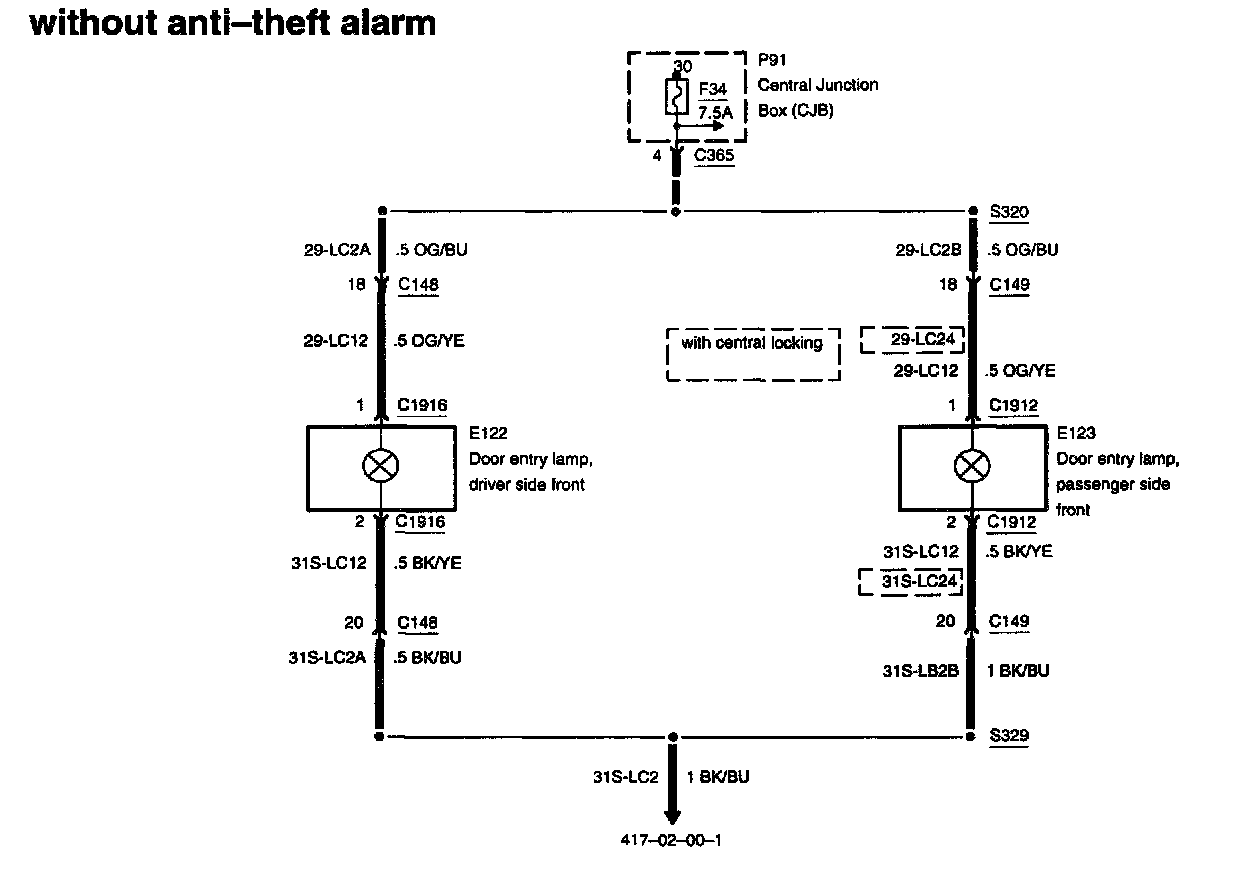

Diagram 417-02-00-3:

Central Junction Box
Door Entry Lamp, Driver Side Front
Door Entry Lamp, Passenger Side Front
Fuse F34

Diagram 417-02-00-4:

Anti-Theft/Central Locking Module
Battery Junction Box
Central Junction Box
Central Timer Module
Fuse F31
Fuse F40
Left Front Door Courtesy Lamp Switch
Left Rear Door Courtesy Lamp Switch
Light Switch
Right Front Door Courtesy Lamp Switch
Right Rear Door Courtesy Lamp Switch

Diagram 417-02-00-5:

Central Junction Box
Fuse F34
Luggage Compartment Lamp
Luggage Compartment Lamp Switch
Vanity Mirror Lamp, Right

RELATED DIAGRAM
