System Diagram

DETAILED DIAGRAMS

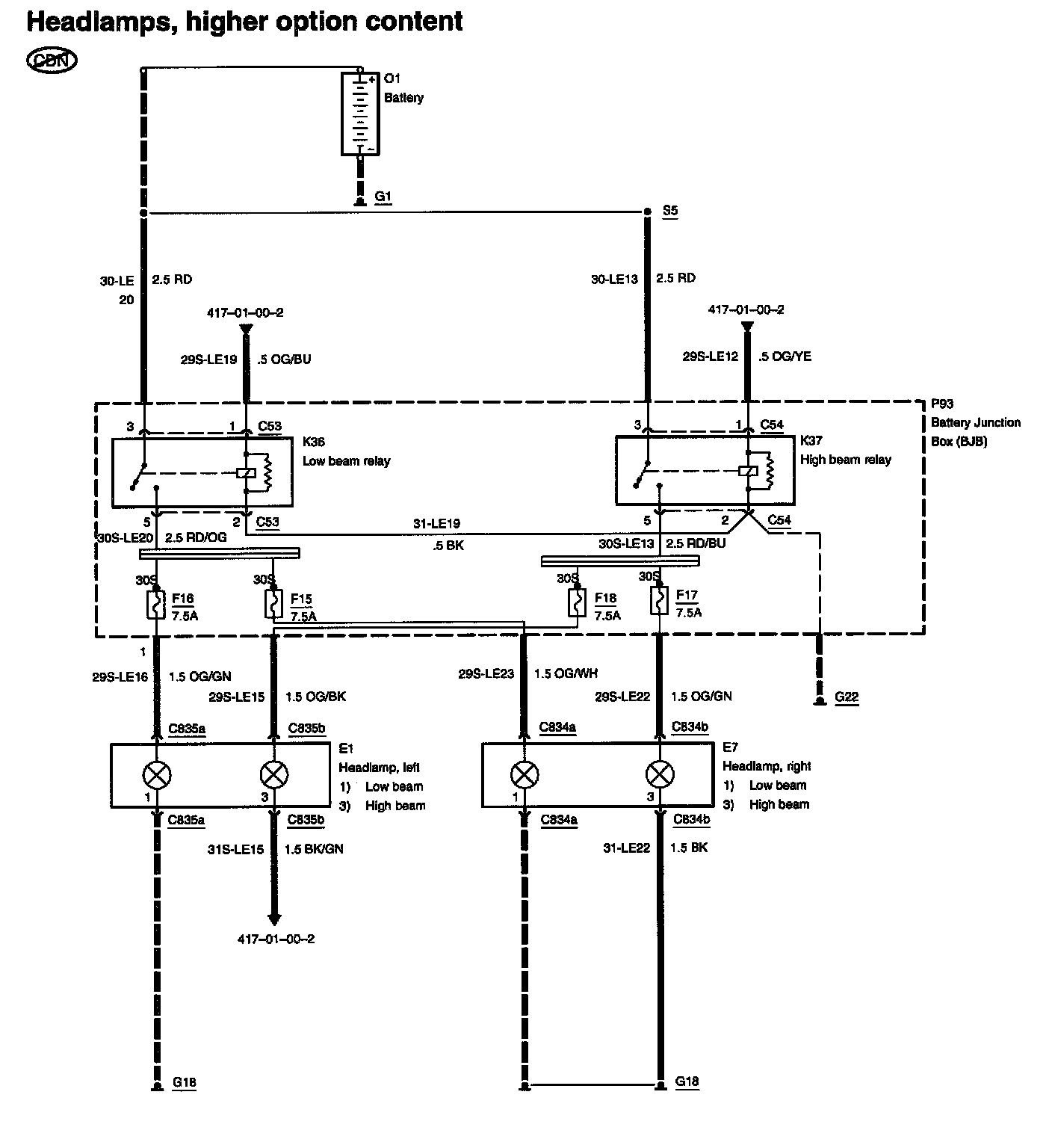

Diagram 417-01-00-1:

Battery
Battery Junction Box
Central Junction Box
Fuse F15
Fuse F16
Fuse F17
Fuse F18
Fuse F26
Headlamp, Left
Headlamp, Right
High Beam Relay
Instrument Cluster
Low Beam Relay
Light Switch
Multifunction Switch
Panic Alarm Headlamp Relay

Diagram 417-01-00-2:

Battery Junction Box
Central Junction Box
Fuse F26
Headlamp Flasher
High Beam Blocking Diode
Instrument Cluster
Low Beam Blocking Diode
Light Switch
Multifunction Switch
Non-Daytime Running Lamps Jumper
Panic Alarm Headlamp Relay

Diagram 417-01-00-3:

Battery
Battery Junction Box
Fuse F15
Fuse F16
Fuse F17
Fuse F18
Headlamp, Left
Headlamp, Right
High Beam Relay
Low Beam Relay
