Instrument Cluster and Panel Lighting
DETAILED DIAGRAMS (Instrument Panel Illumination)Diagram 413-00-00-1:
Central Junction Box
Central Timer Module
Fuse F31
Heater Panel Illumination Lamp
Illumination Dimmer
Light Switch
Traction Control System Disable Switch
Diagram 413-00-00-2:
Gearshift Lever Unit
Headlamp Switch Panel Illumination Lamp
Illumination
Instrument Cluster
Radio
Rear Window Defrost Switch

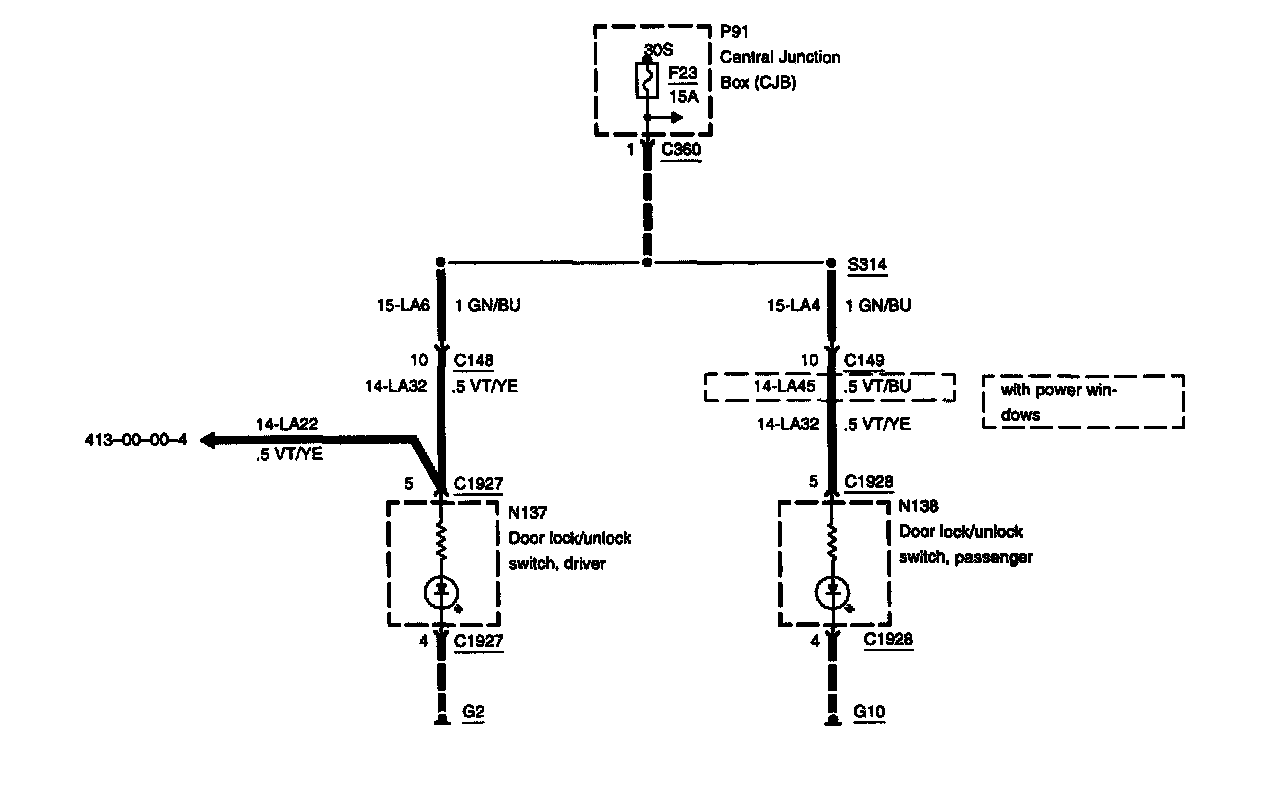

Diagram 413-00-00-3:
Central Junction Box
Door Lock/unlock Switch, Driver
Door Lock/unlock Switch, Passenger
Fuse F23

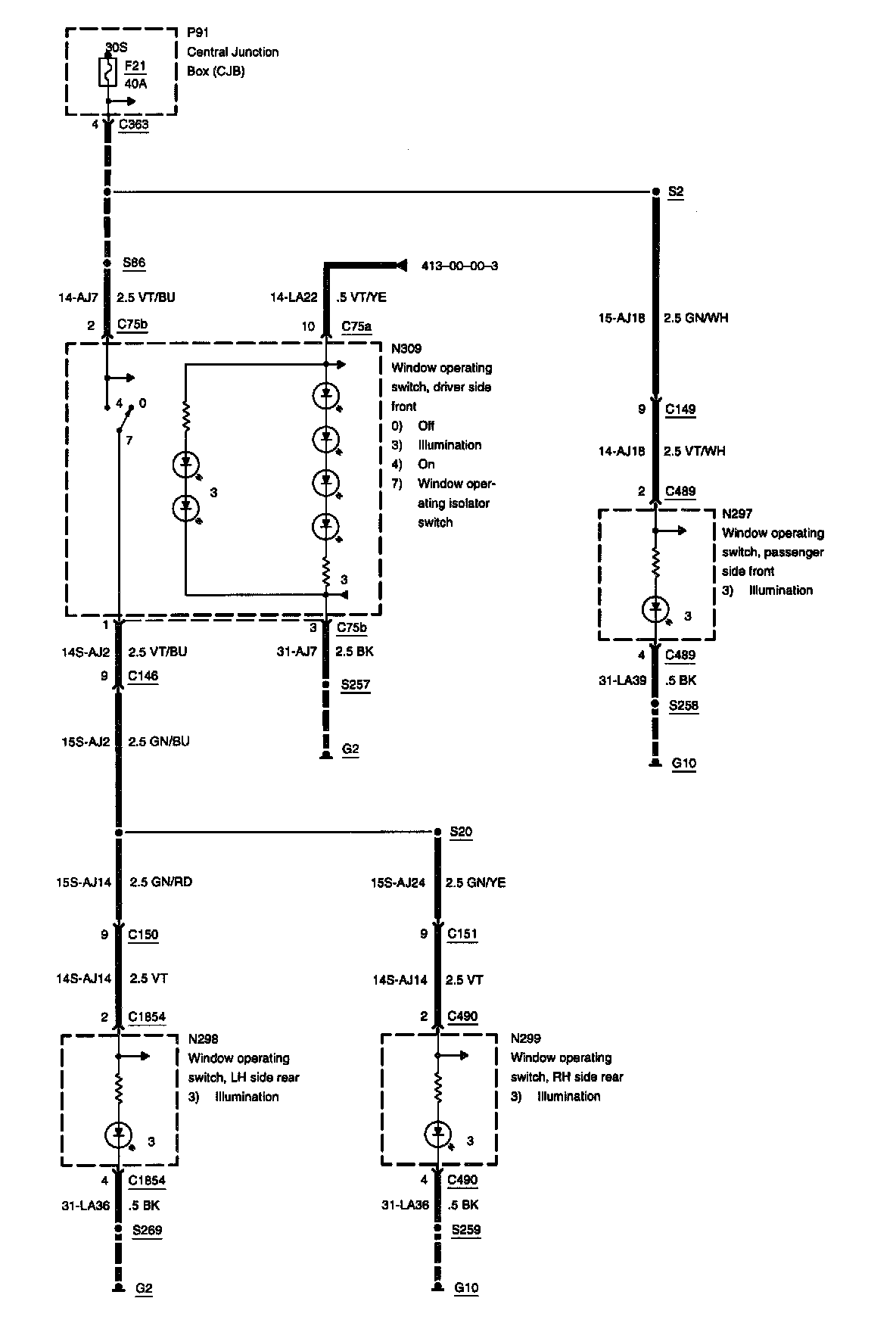

Diagram 413-00-00-4:
Central Junction Box
Fuse F21
Illumination
Window Operating Isolator Switch
Window Operating Switch, Driver Side Front
Window Operating Switch, Passenger Side Front
Window Operating Switch, LH Side Rear
Window Operating Switch, RH Side Rear
