Instrument Cluster

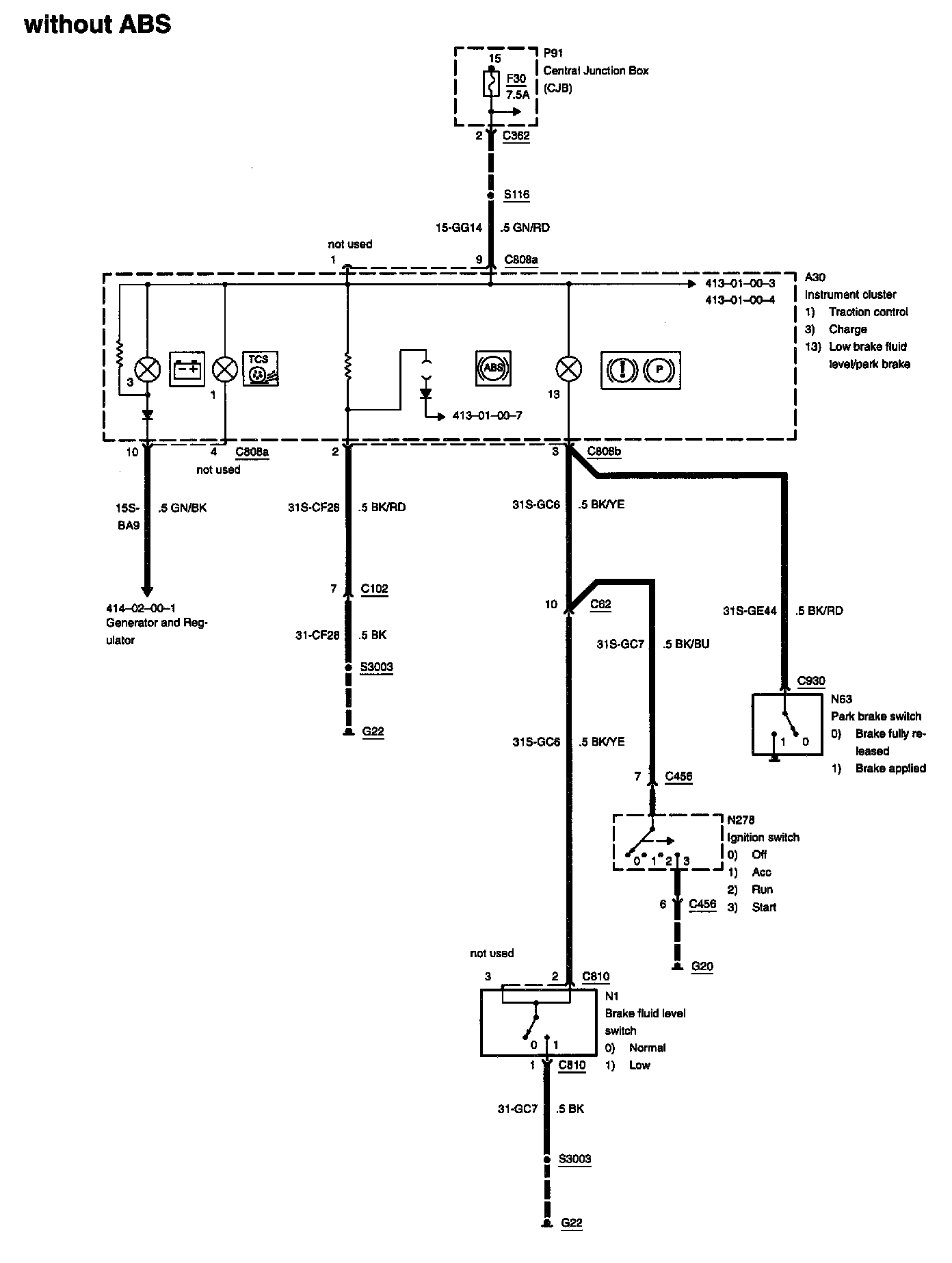

DETAILED DIAGRAMS (Instrument Cluster Wiring)Diagram 413-01-00-1:
Anti-Lock Brake System
Anti-Lock Brake System Control Module
Brake Fluid Level Switch
Central Junction Box
Charge
Fuse F30
Instrument Cluster
Ignition Switch
Low Brake Fluid Level/Park Brake
Park Brake Switch

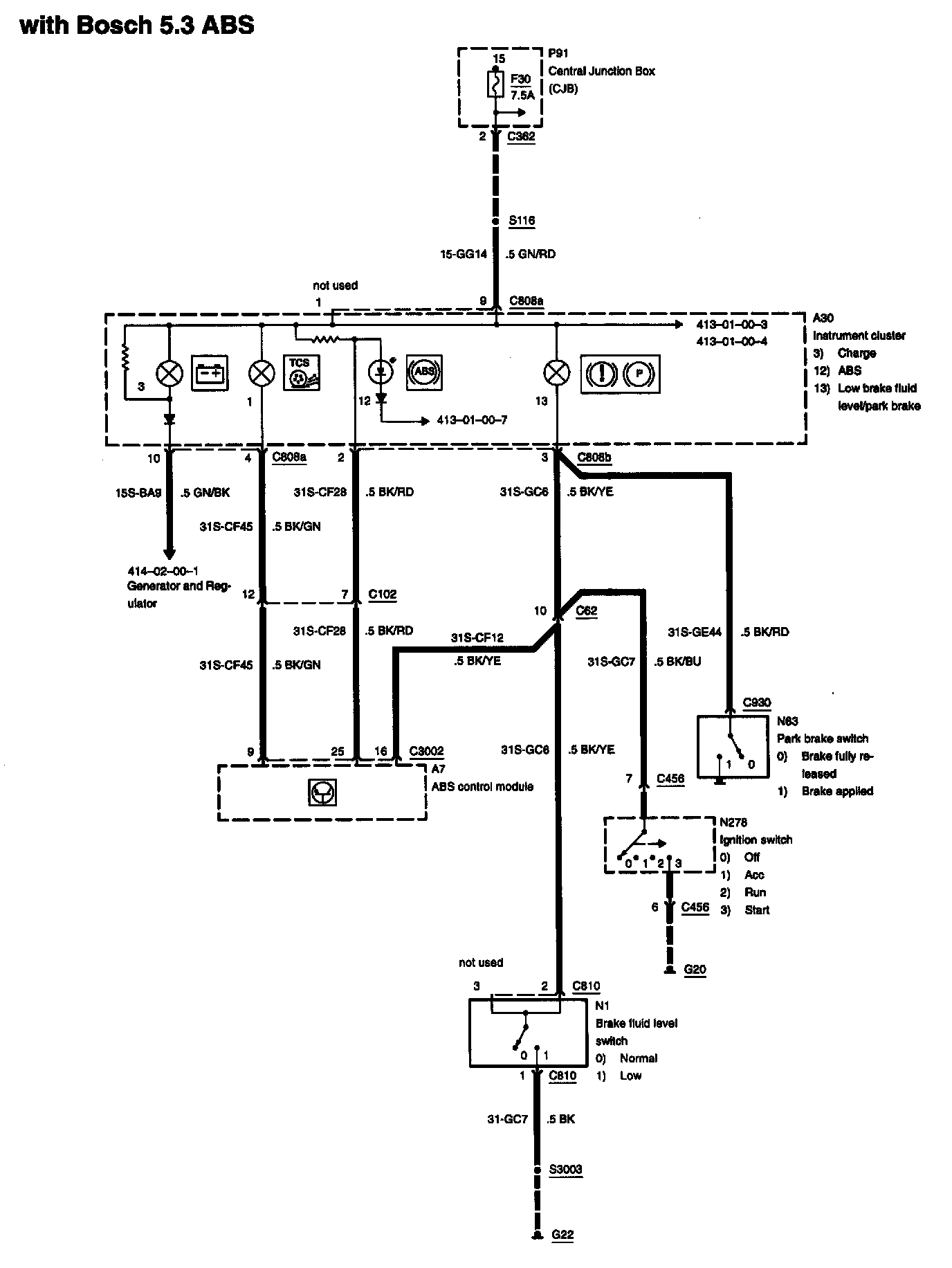

Diagram 413-01-00-2:
Anti-Lock Brake System
Brake Fluid Level Switch
Central Junction Box
Charge
Fuse F30
Instrument Cluster
Ignition Switch
Low Brake Fluid Level/Park Brake
Park Brake Switch
Traction Control
Diagram 413-01-00-3:
Central Junction Box
Central Timer Module
Compuvalve Module
Instrument Cluster
Low Oil Pressure
Oil Pressure Switch
Powertrain Control Module
Seat Belt Buckle Switch
Seat Belt Indicator
Tachometer

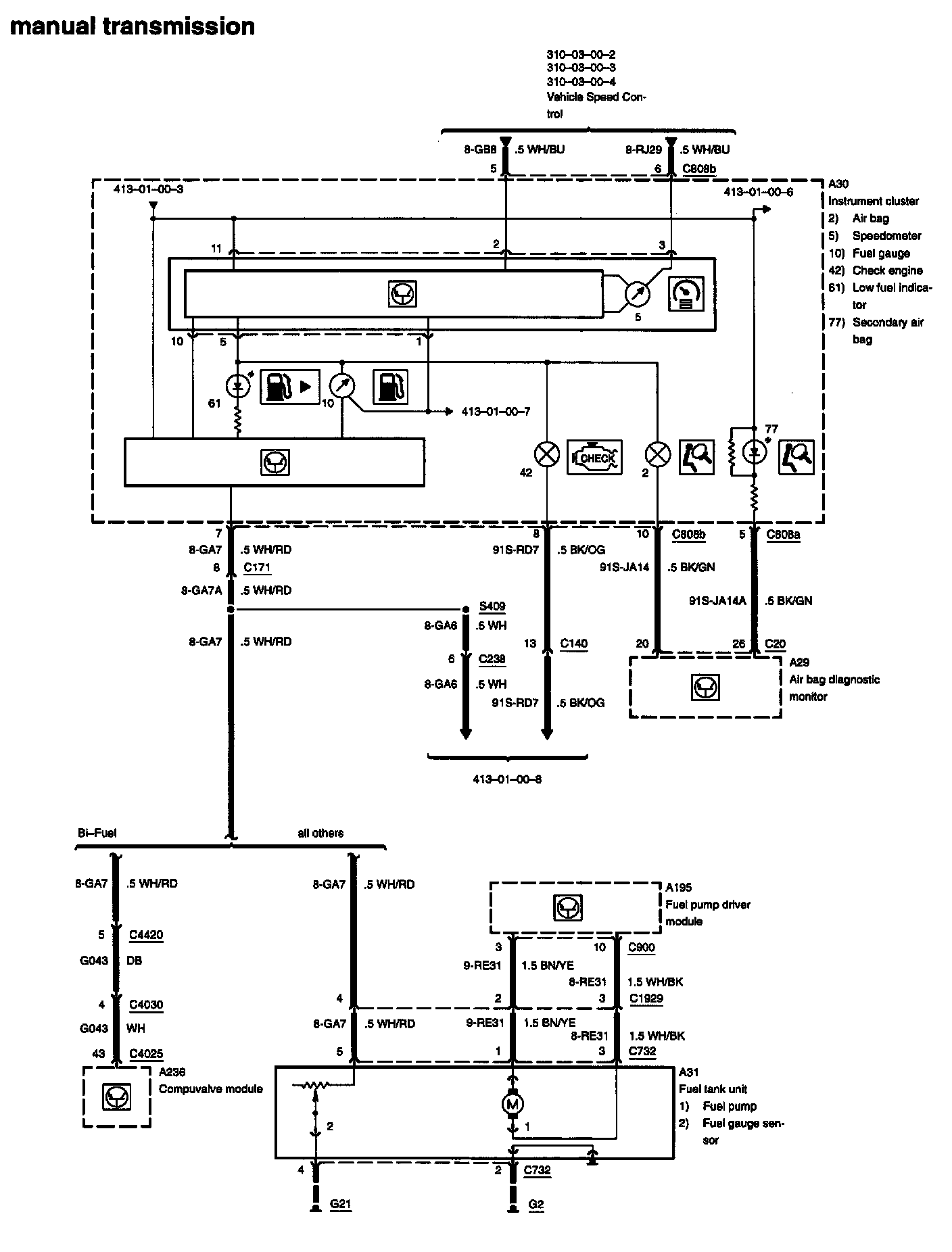

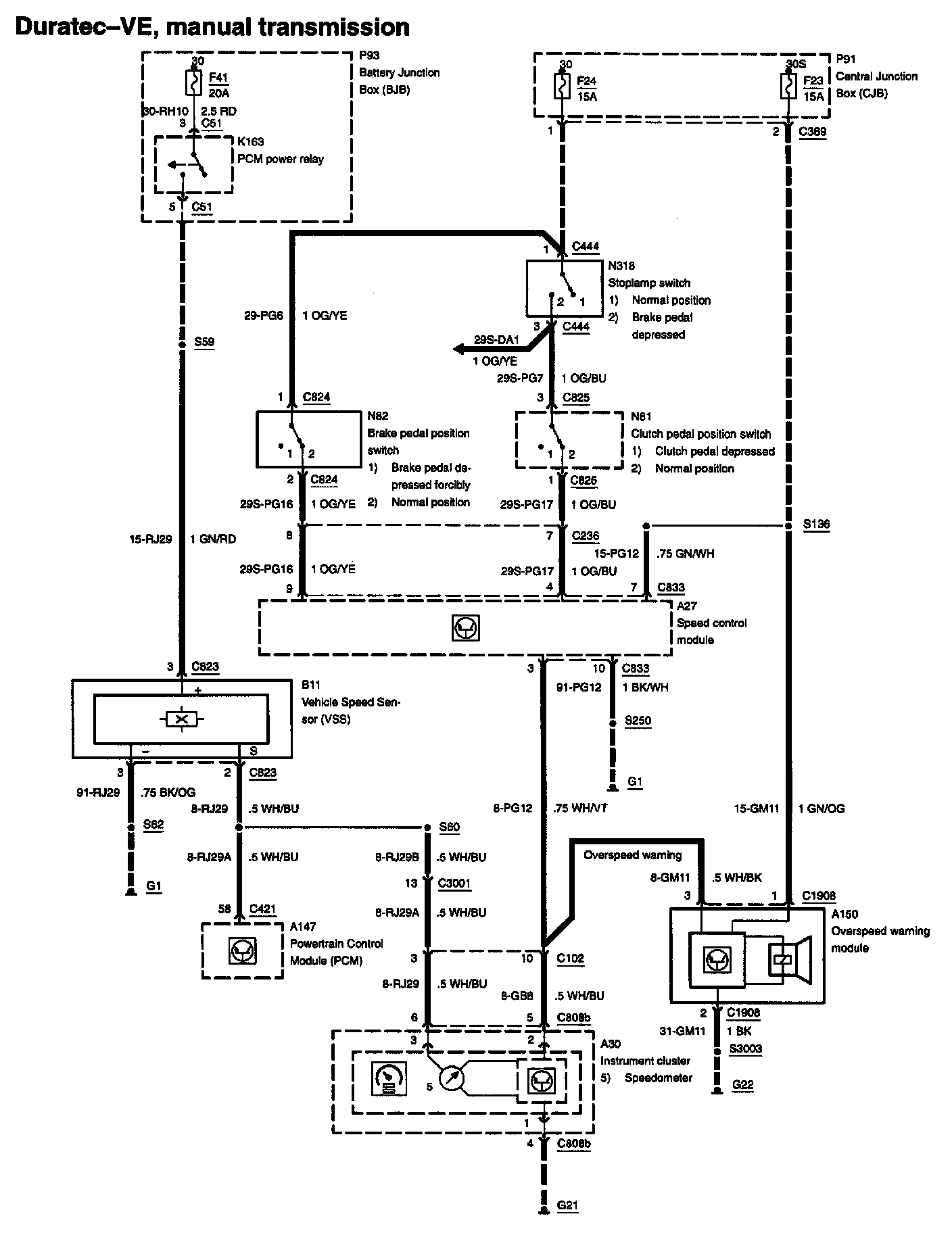

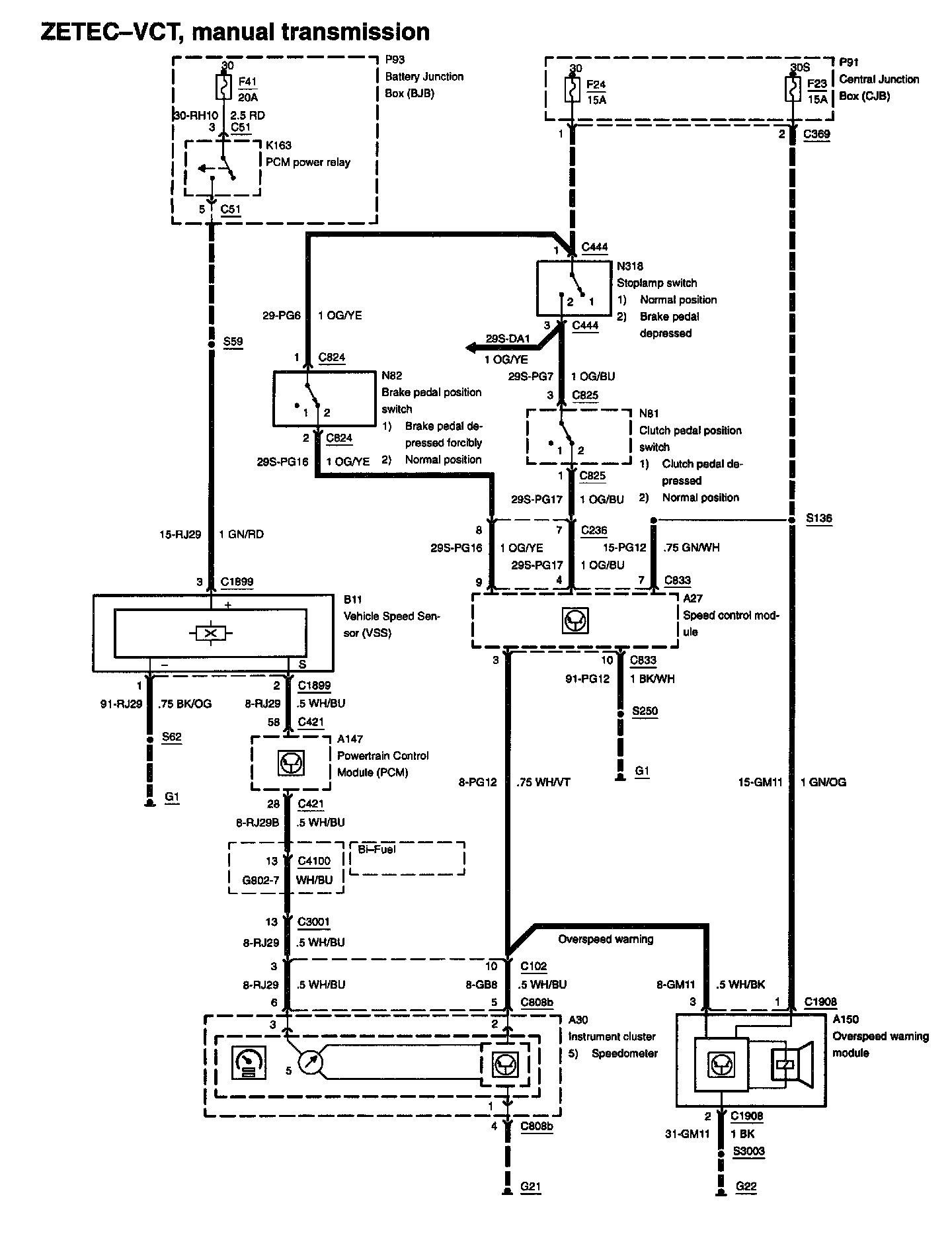

Diagram 413-01-00-4:
Air Bag
Air Bag Diagnostic Monitor
Compuvalve Module
Fuel Gauge
Fuel Gauge Sensor
Fuel Pump
Fuel Pump Driver Module
Fuel Tank Unit
Instrument Cluster
Low Fuel Indicator
Secondary Air Bag
Speedometer

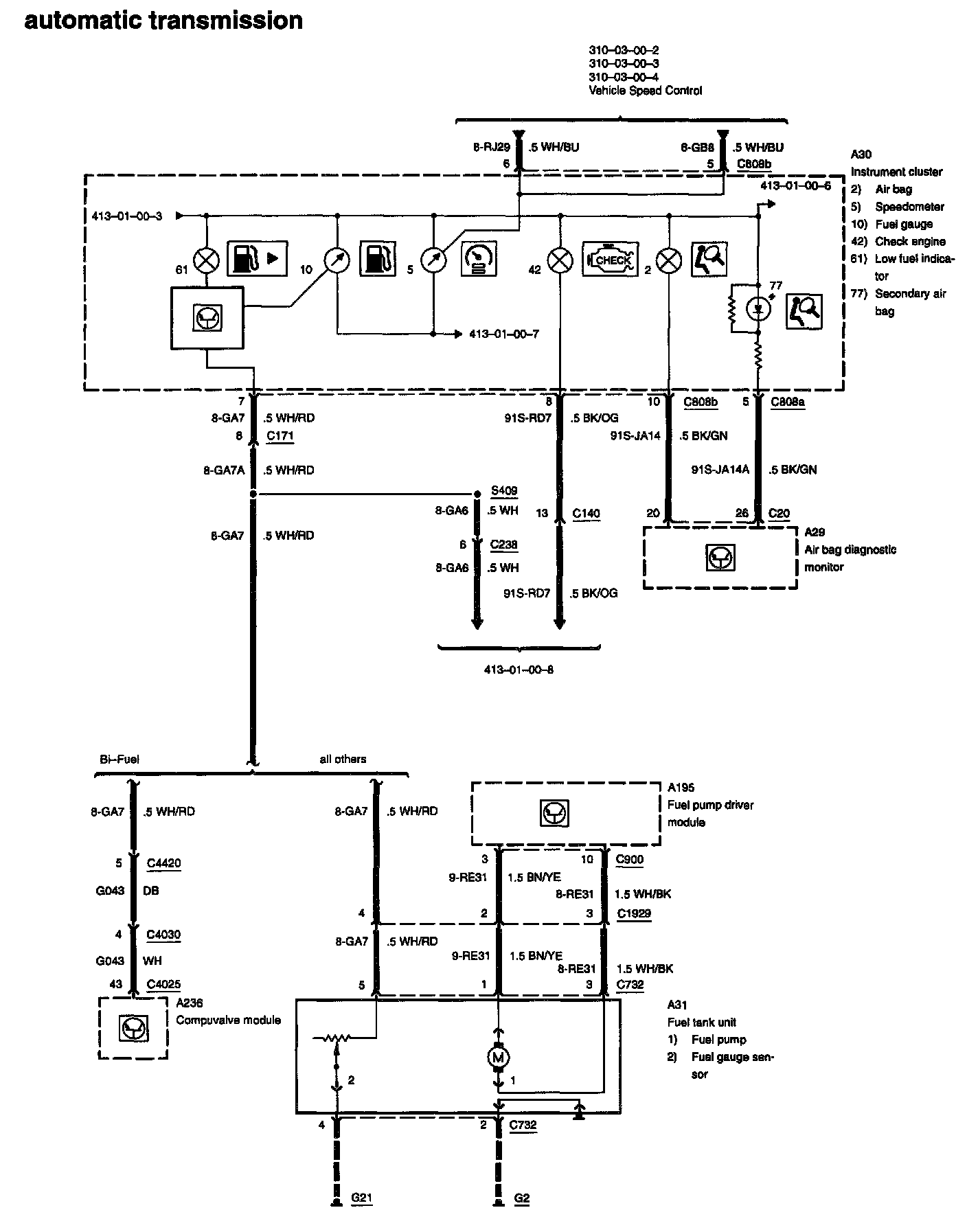

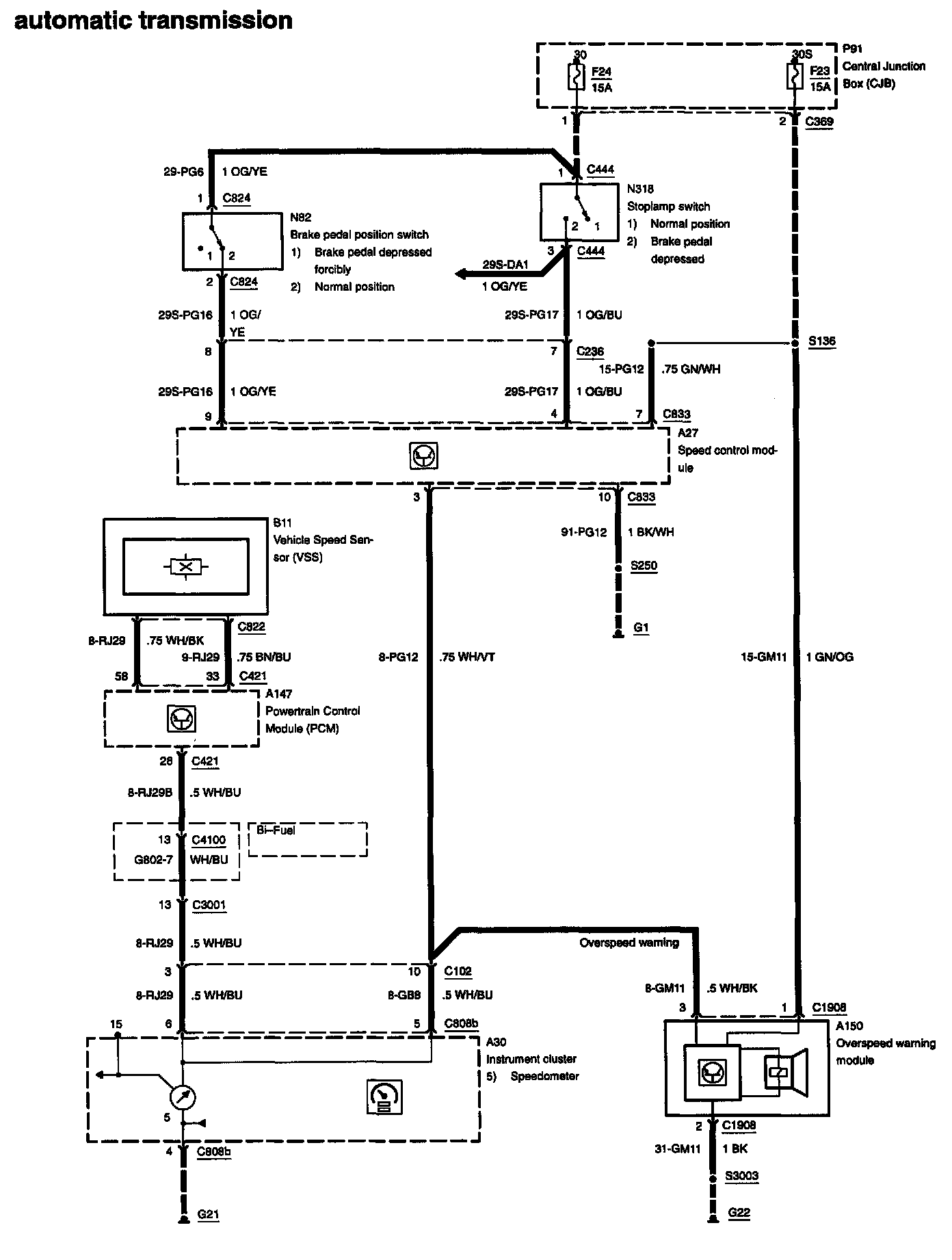

Diagram 413-01-00-5:
Air Bag
Air Bag Diagnostic Monitor
Compuvalve Module
Fuel Gauge
Fuel Gauge Sensor
Fuel Pump
Fuel Pump Driver Module
Fuel Tank Unit
Instrument Cluster
Low Fuel Indicator
Secondary Air Bag
Speedometer

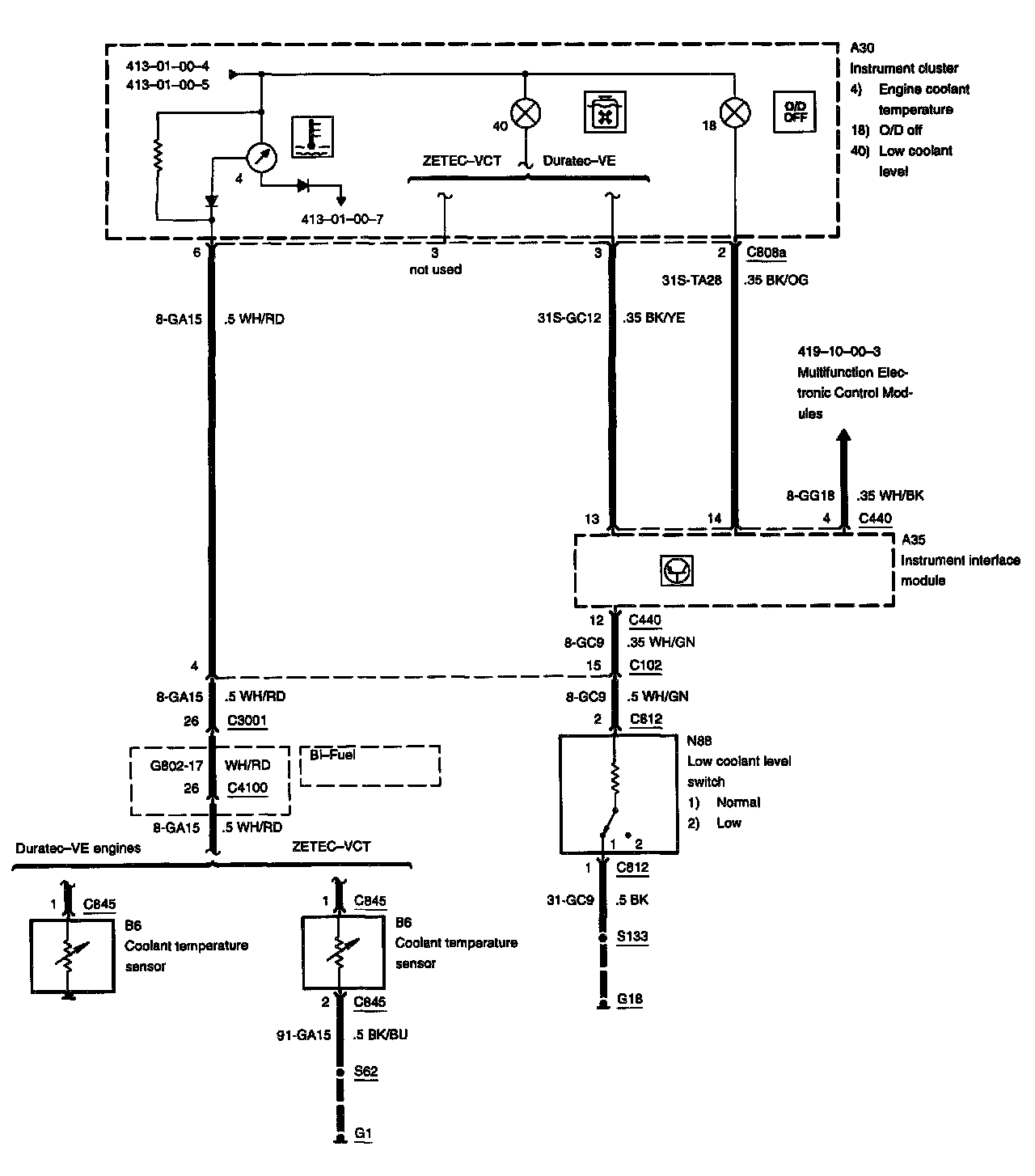

Diagram 413-01-00-6:
Coolant Temperature Sensor
Engine Coolant Temperature
Instrument Cluster
Instrument Interface Module
Low Coolant Level
Low Coolant Level Switch
Over Drive Off

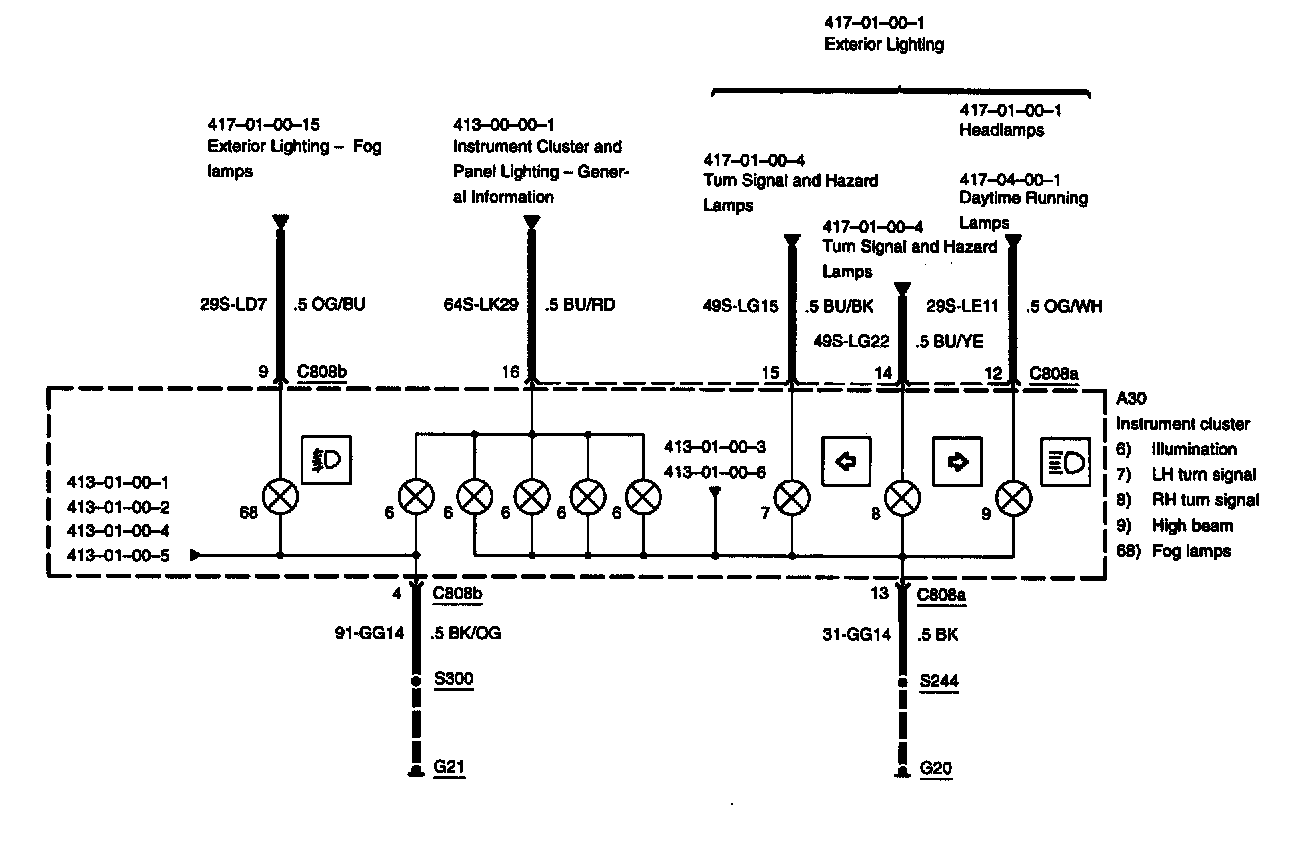

Diagram 413-01-00-7:

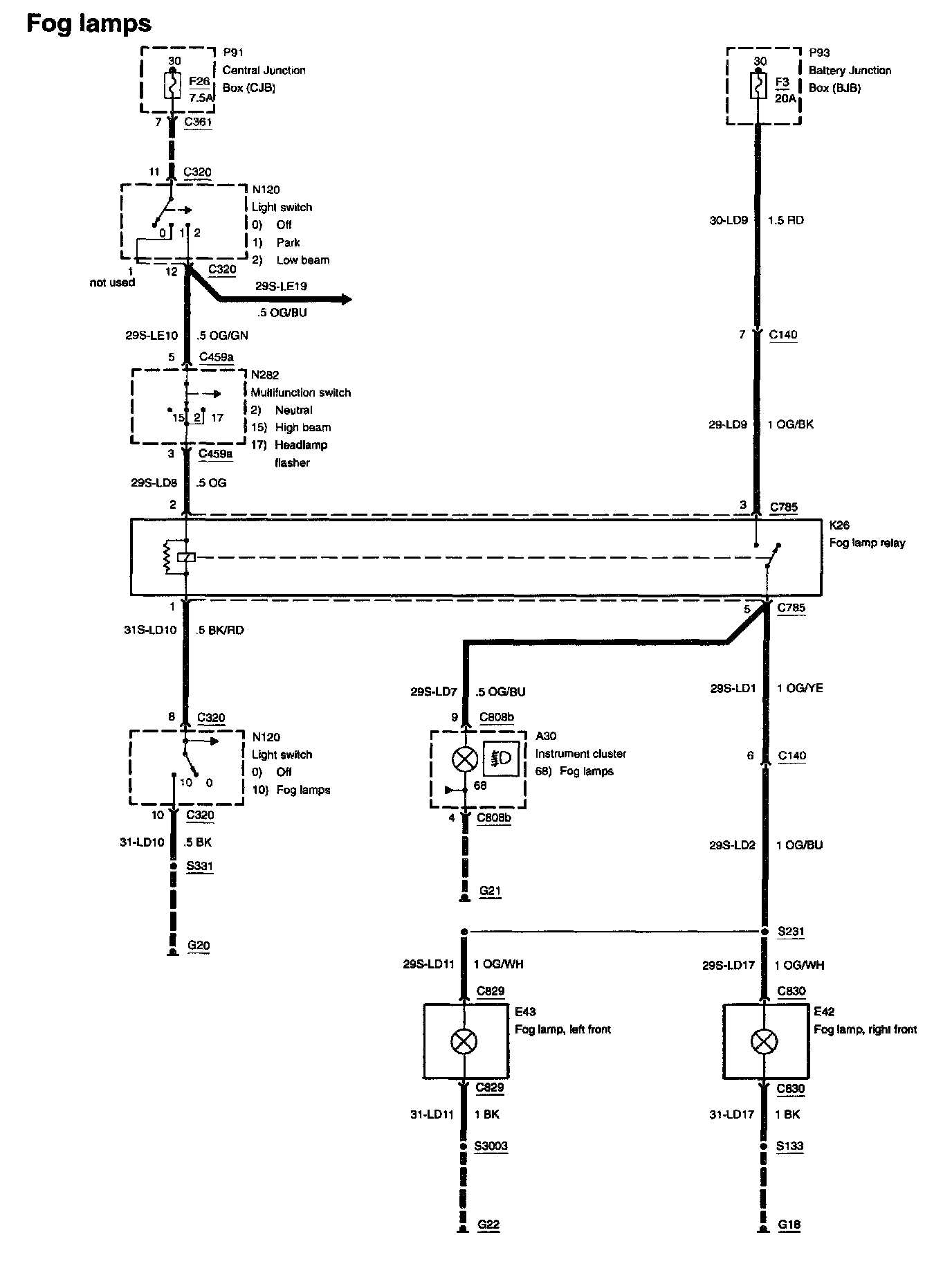

Fog Lamps
High Beam
Instrument Cluster
Illumination
LH Turn Signal
RH Turn Signal

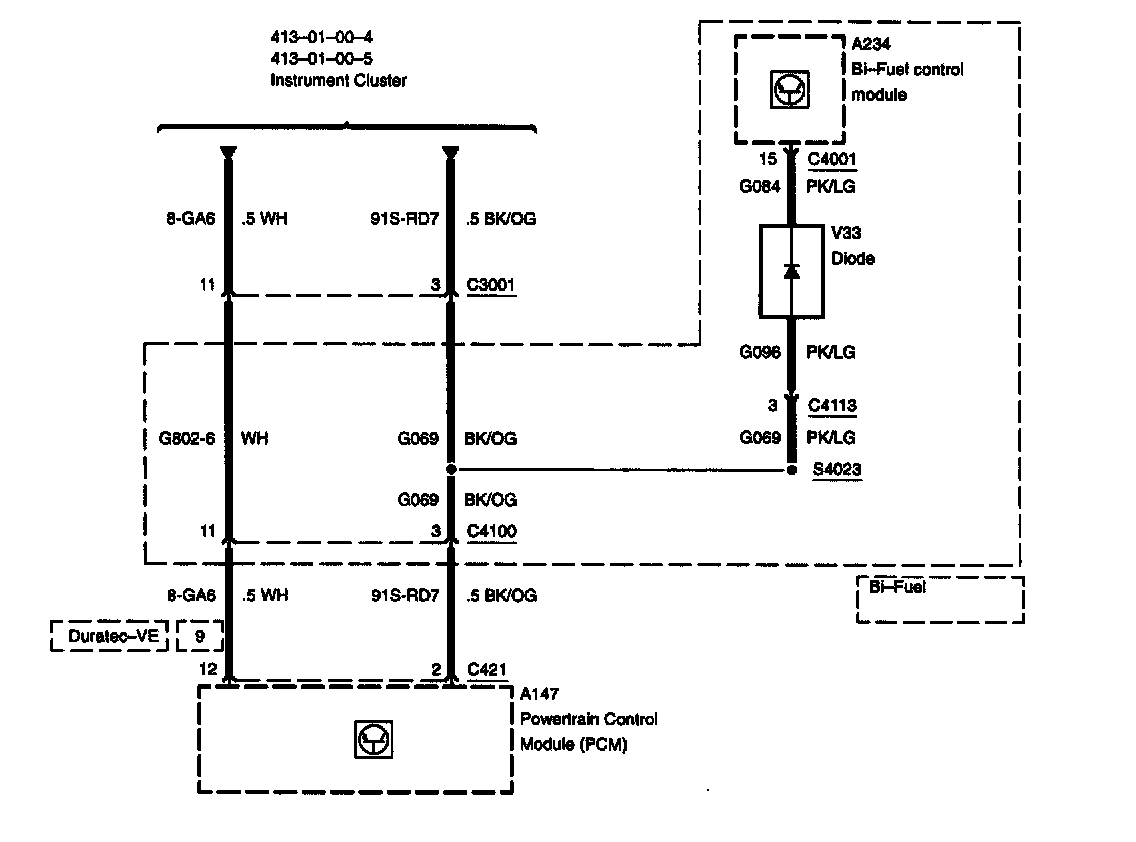

Diagram 413-01-00-8:
Bi-Fuel Control Module
Diode
Powertrain Control Module
