Air Conditioning

Diagram 412-00-00-1:

Air Temperature Actuator
Central Junction Box
Fuse F23
Fuse F37
Heater Blower Motor
Heater Blower Relay
Heater Blower Series Resistor
Heater Blower Switch
Heater Mode Switch
Temperature Door Variable Resistor

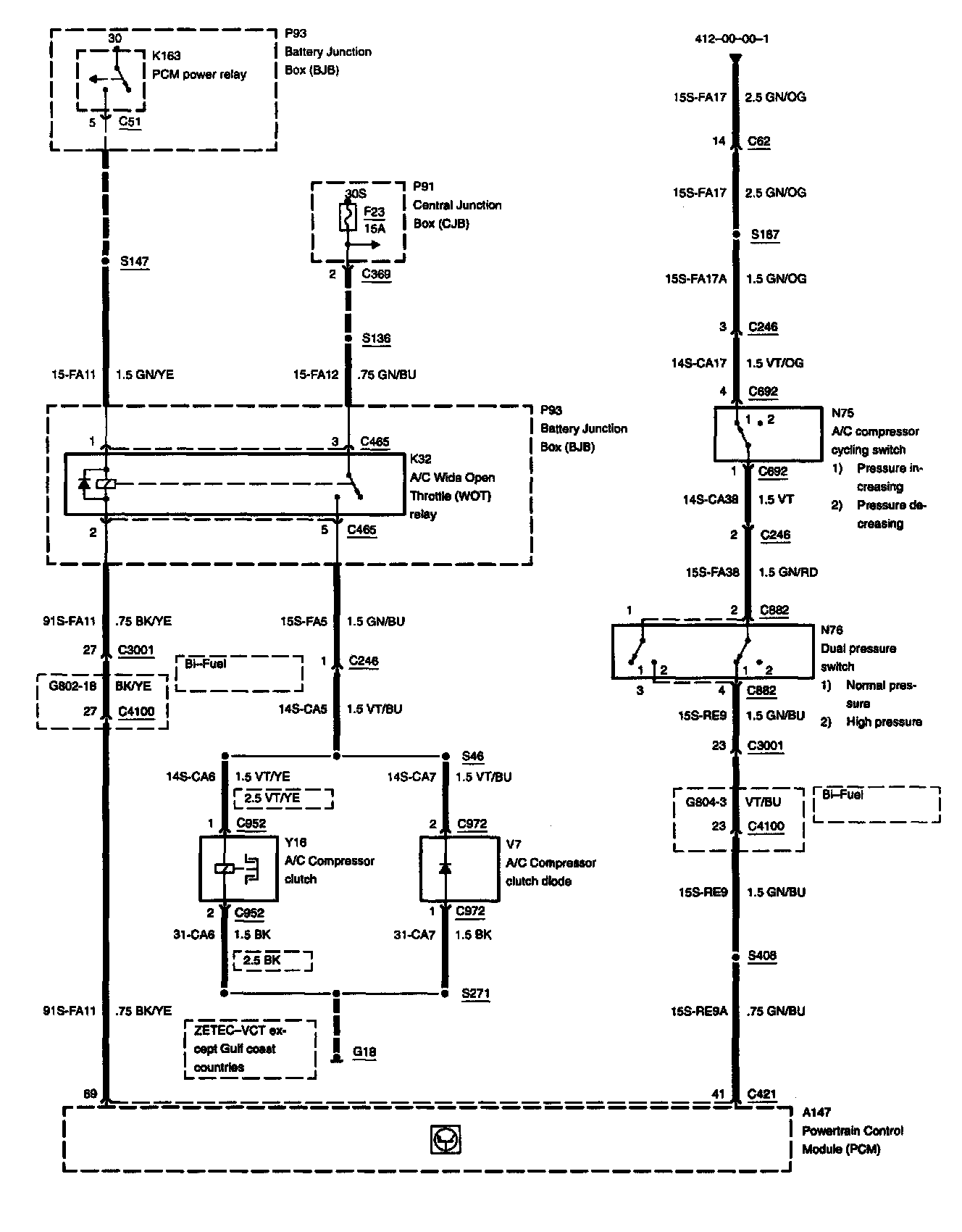

Diagram 412-00-00-2:

A/C Compressor Clutch Diode
A/C Compressor Clutch
A/C Compressor Cycling Switch
A/C Wide Open Throttle Relay
Battery Junction Box
Central Junction Box
Dual Pressure Switch
Fuse F23
Powertrain Control Module
Powertrain Control Module Power Relay

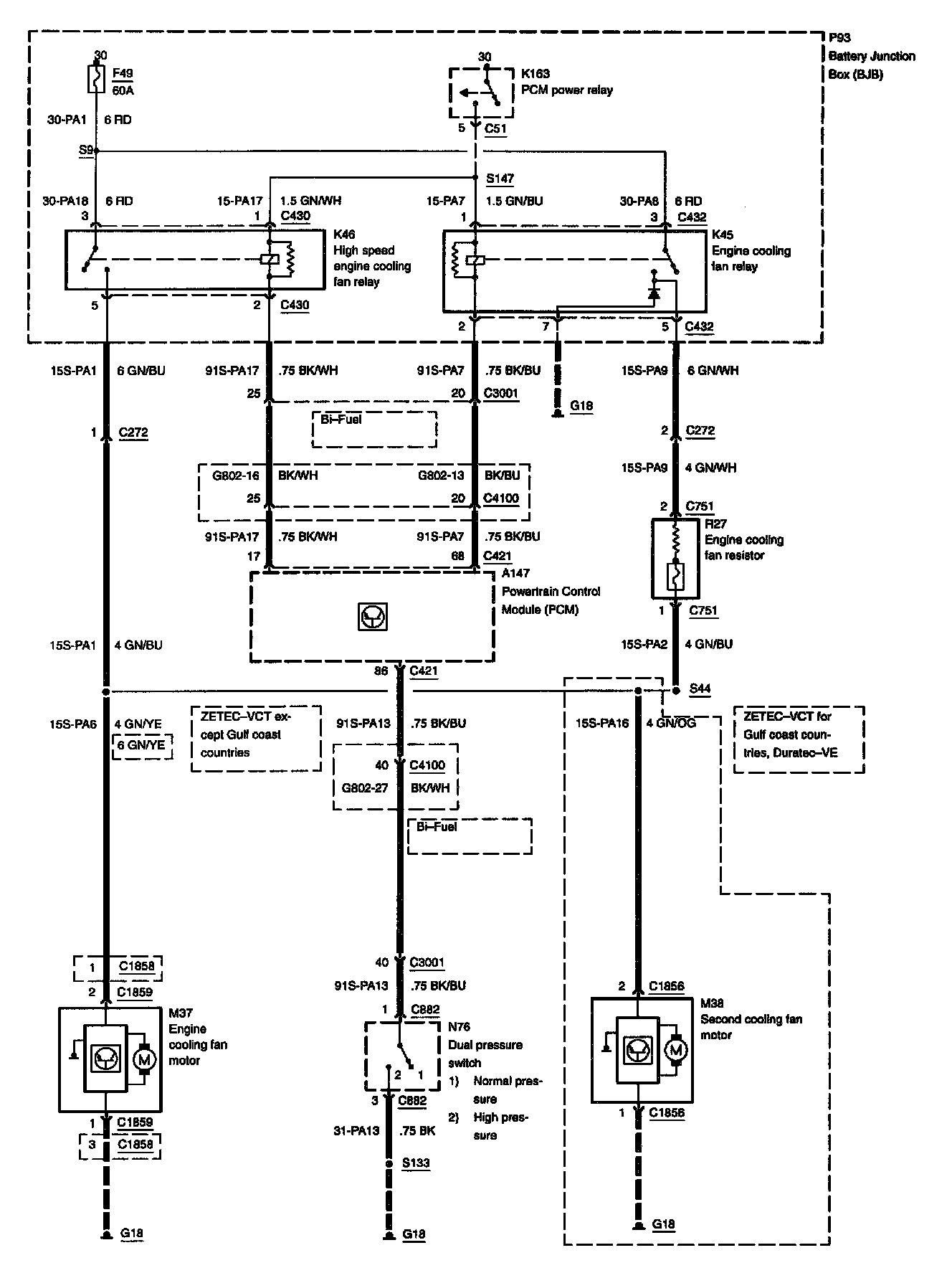

Diagram 412-00-00-3:

Battery Junction Box
Dual Pressure Switch
Engine Cooling Fan Relay
Engine Cooling Fan Resistor
Engine Cooling Fan Motor
Fuse F49
High Speed Engine Cooling Fan Relay
Powertrain Control Module
Powertrain Control Module Power Relay
Second Cooling Fan Motor
