Instrument Interface Module

DETAILED DIAGRAMS

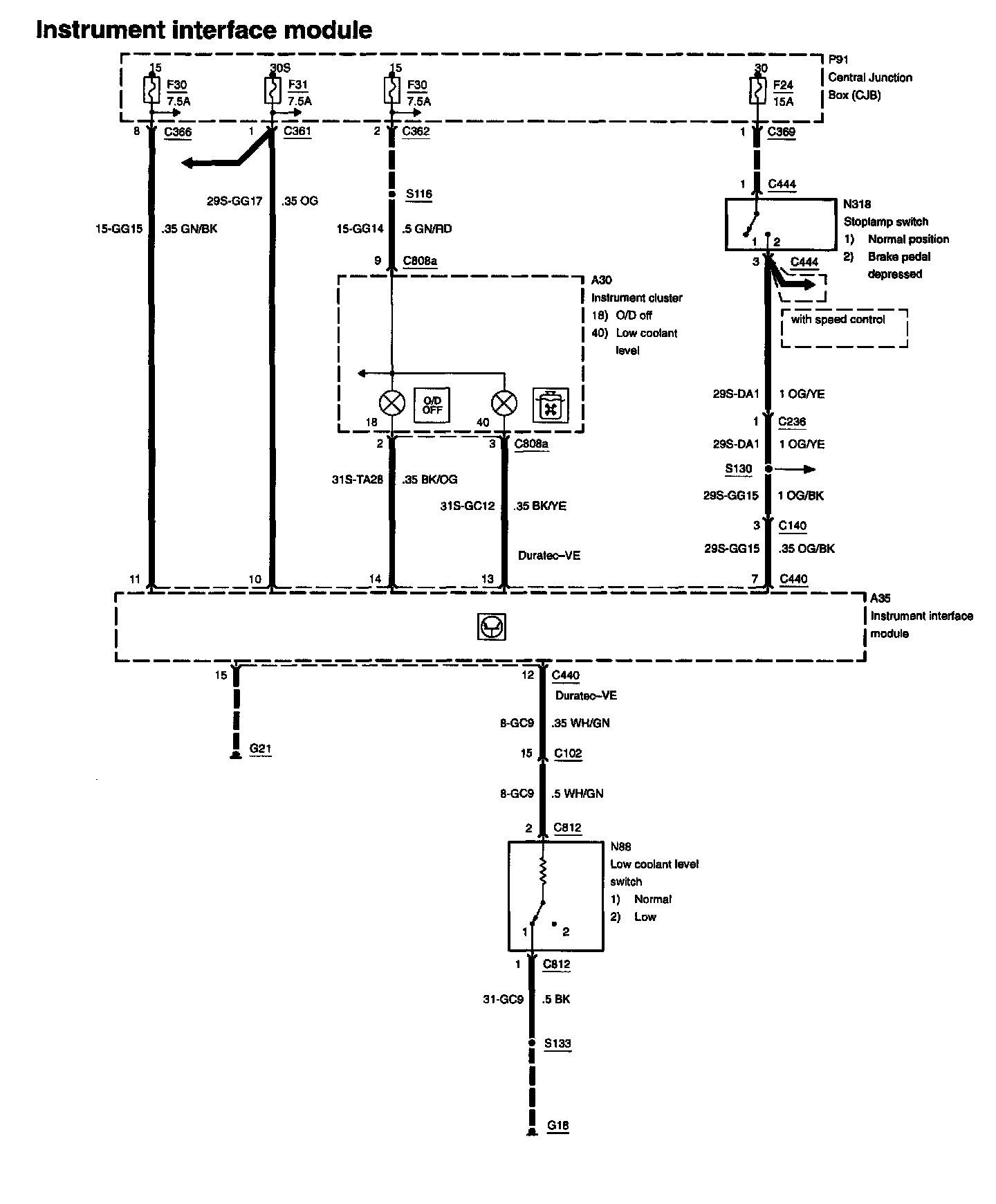

Diagram 419-10-00-3:

Central Junction Box
Fuse F24
Fuse F30
Fuse F31
Instrument Cluster
Instrument Interface Module
Low Coolant Level Switch
Stoplamp Switch

Diagram 419-10-00-4:

Central Junction Box
Fuse F23
Fuse F30
Fuse F34
Gearshift Lever Unit
Illumination
Instrument Interface Module
Key Removal Inhibit Solenoid
Overdrive Cancel Switch
Park Interlock Solenoid
Park Interlock Switch
Powertrain Control Module

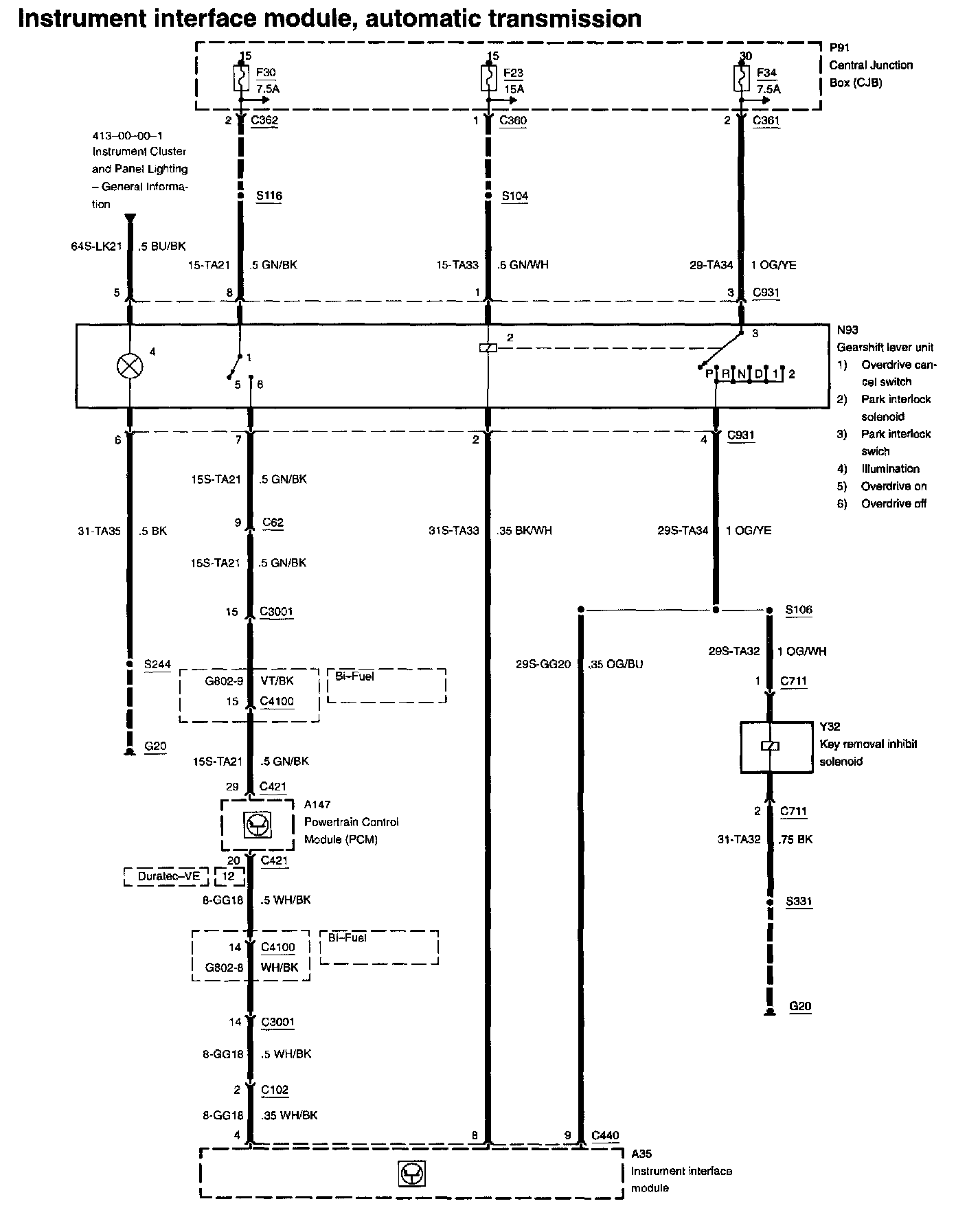

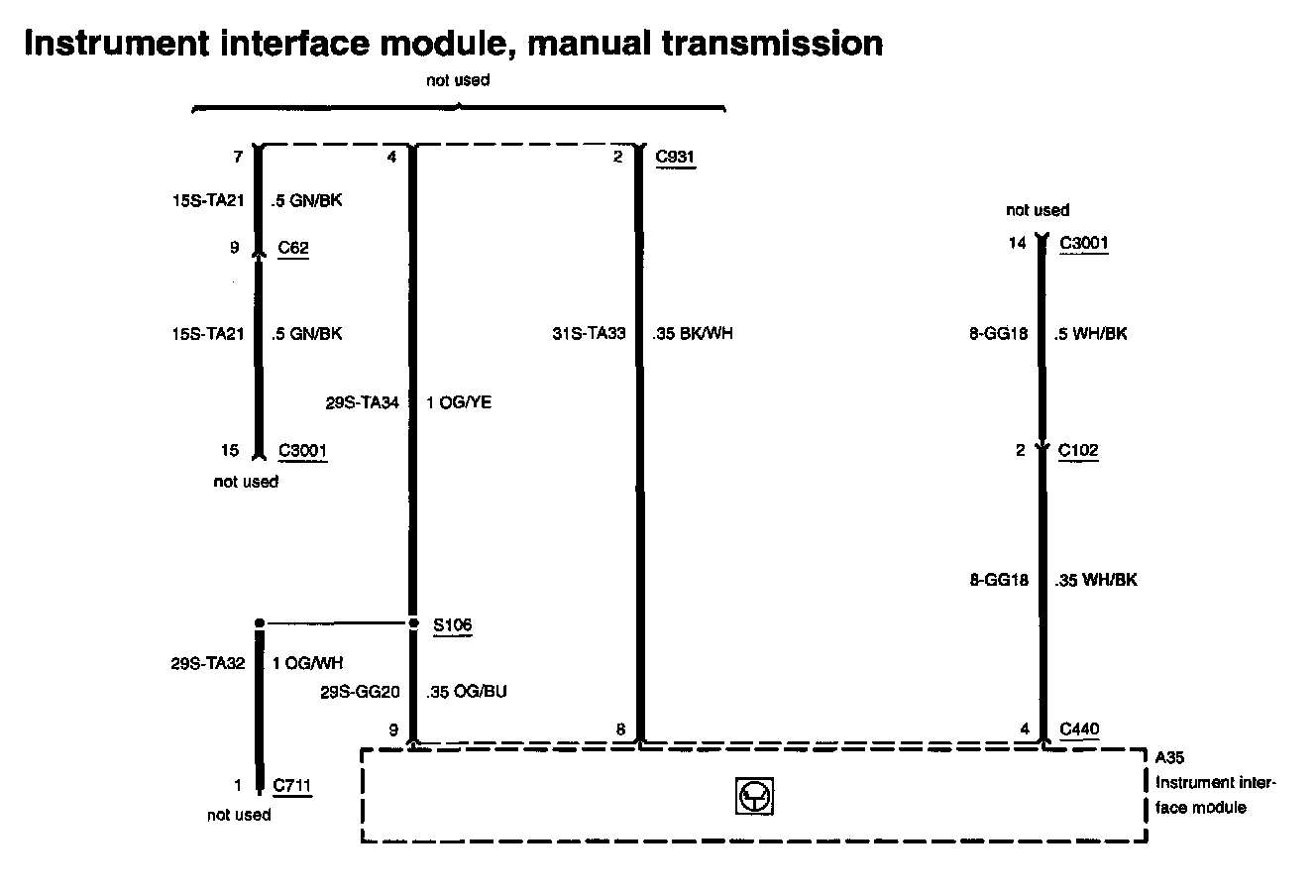

Diagram 419-10-00-5:

Instrument Interface Module

RELATED DIAGRAMS

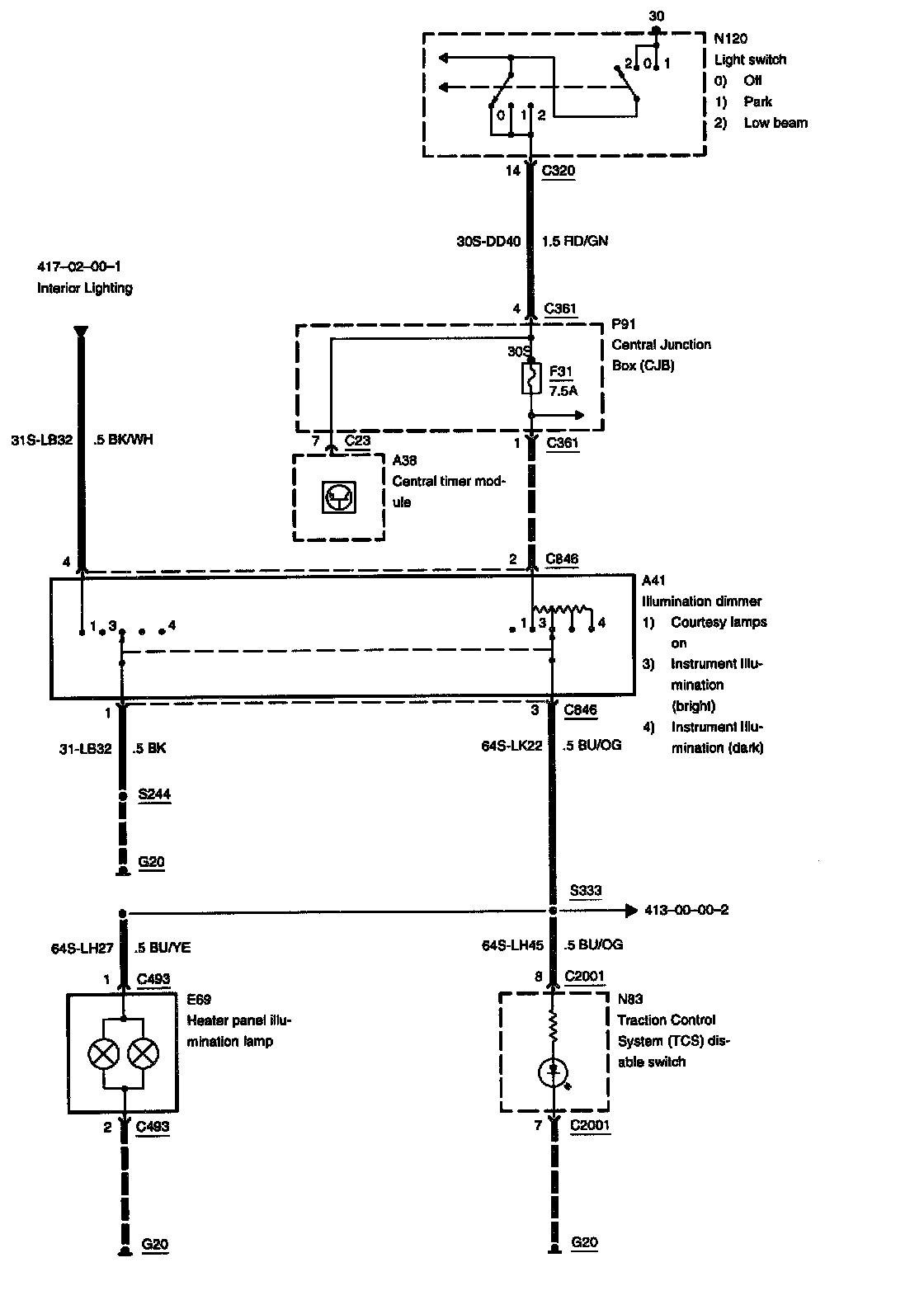

Diagram 413-00-00-1:
