Diagram Set 303-14A-00

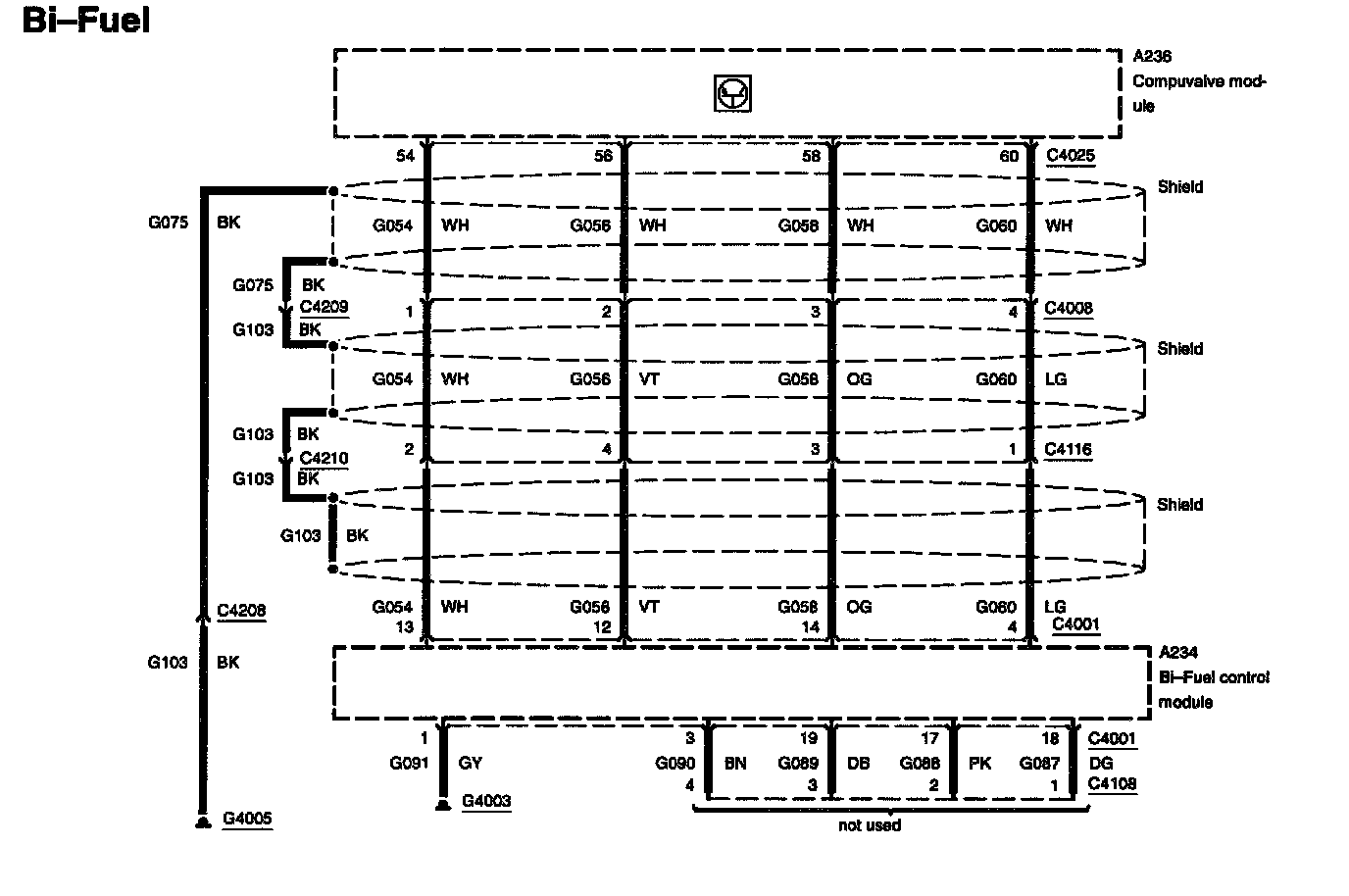

Diagram 303-14a-00-1:

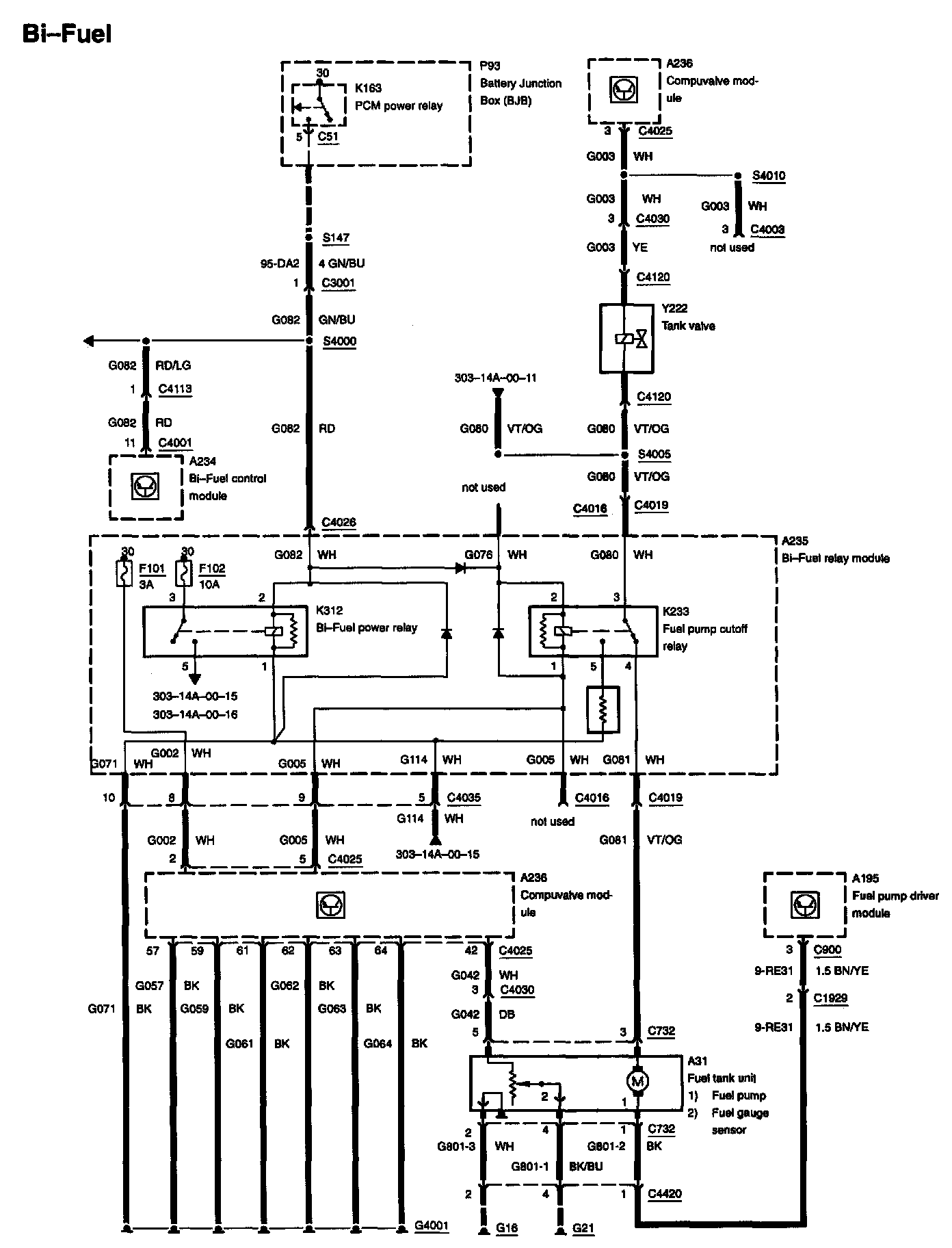

Diagram 303-14a-00-2:

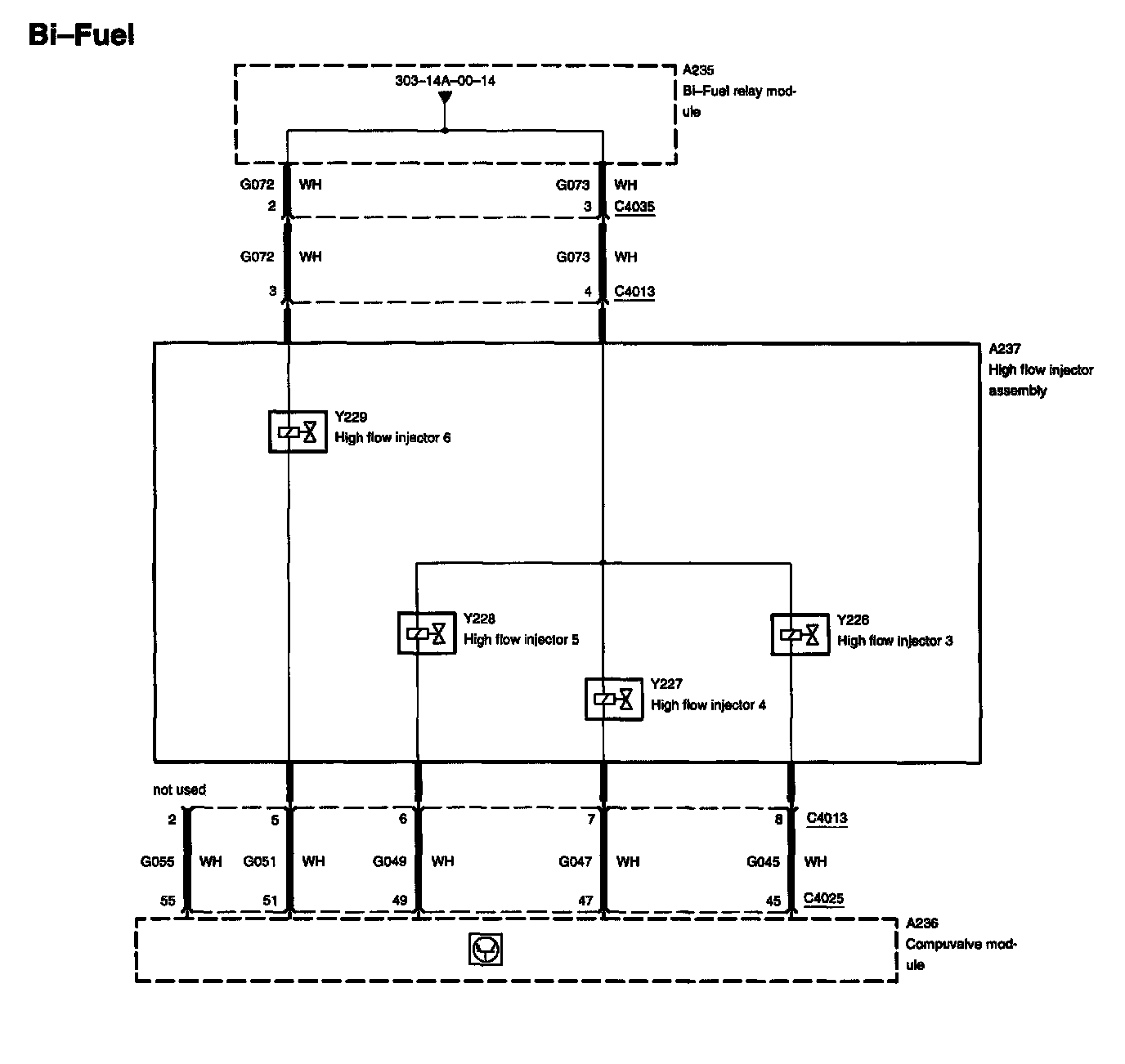

Diagram 303-14a-00-3:

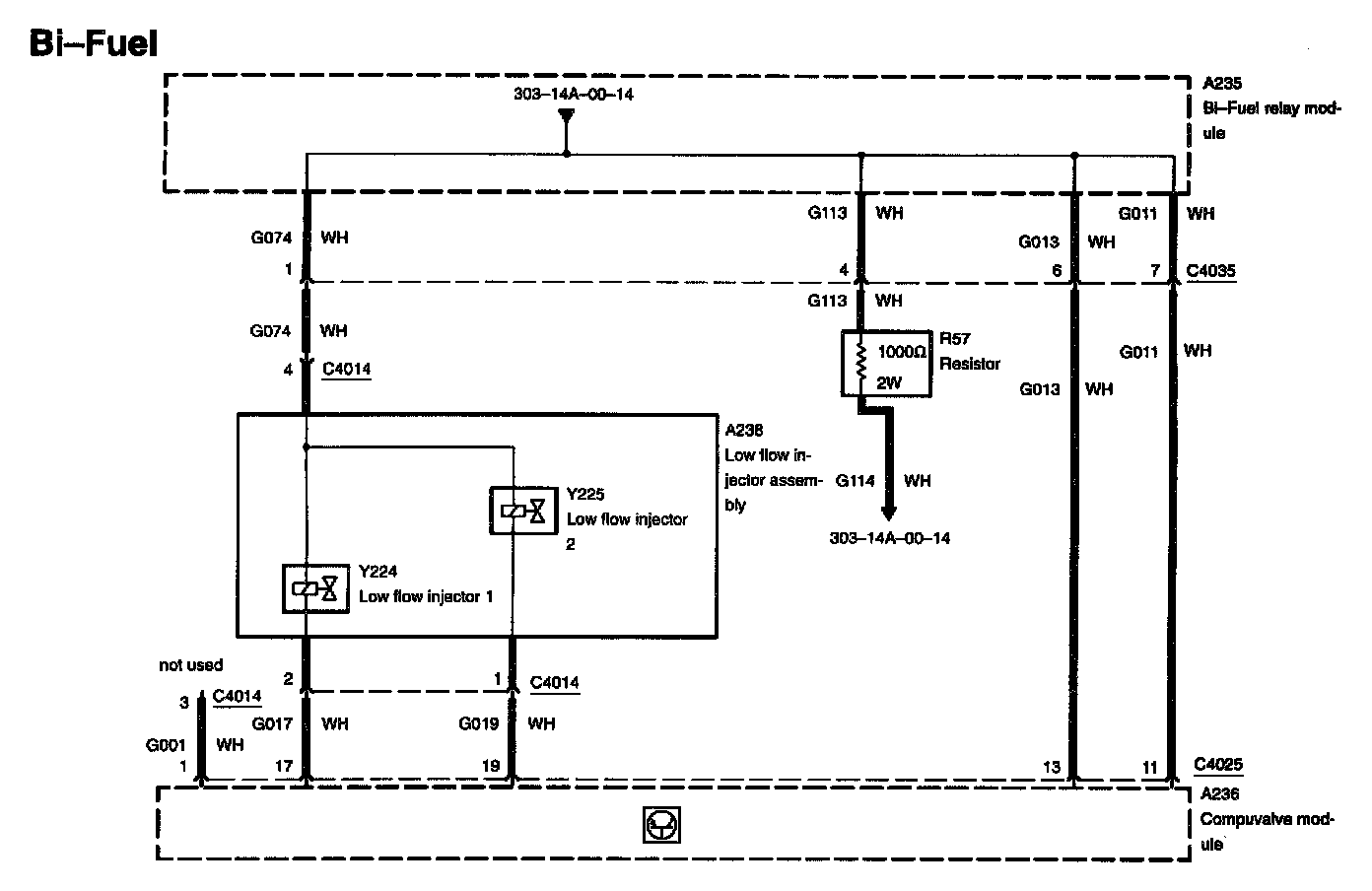

Diagram 303-14a-00-4:

Diagram 303-14a-00-5:

Diagram 303-14a-00-6:

Diagram 303-14a-00-7:

Diagram 303-14a-00-8:

Diagram 303-14a-00-9:

Diagram 303-14a-00-10:

Diagram 303-14a-00-11:

Diagram 303-14a-00-12:

Diagram 303-14a-00-13:

Diagram 303-14a-00-14:

Diagram 303-14a-00-15:

Diagram 303-14a-00-16:

Diagram 303-14a-00-17:

Diagram 303-14a-00-18:
