Anti-Theft-Passive

DETAILED DIAGRAMS

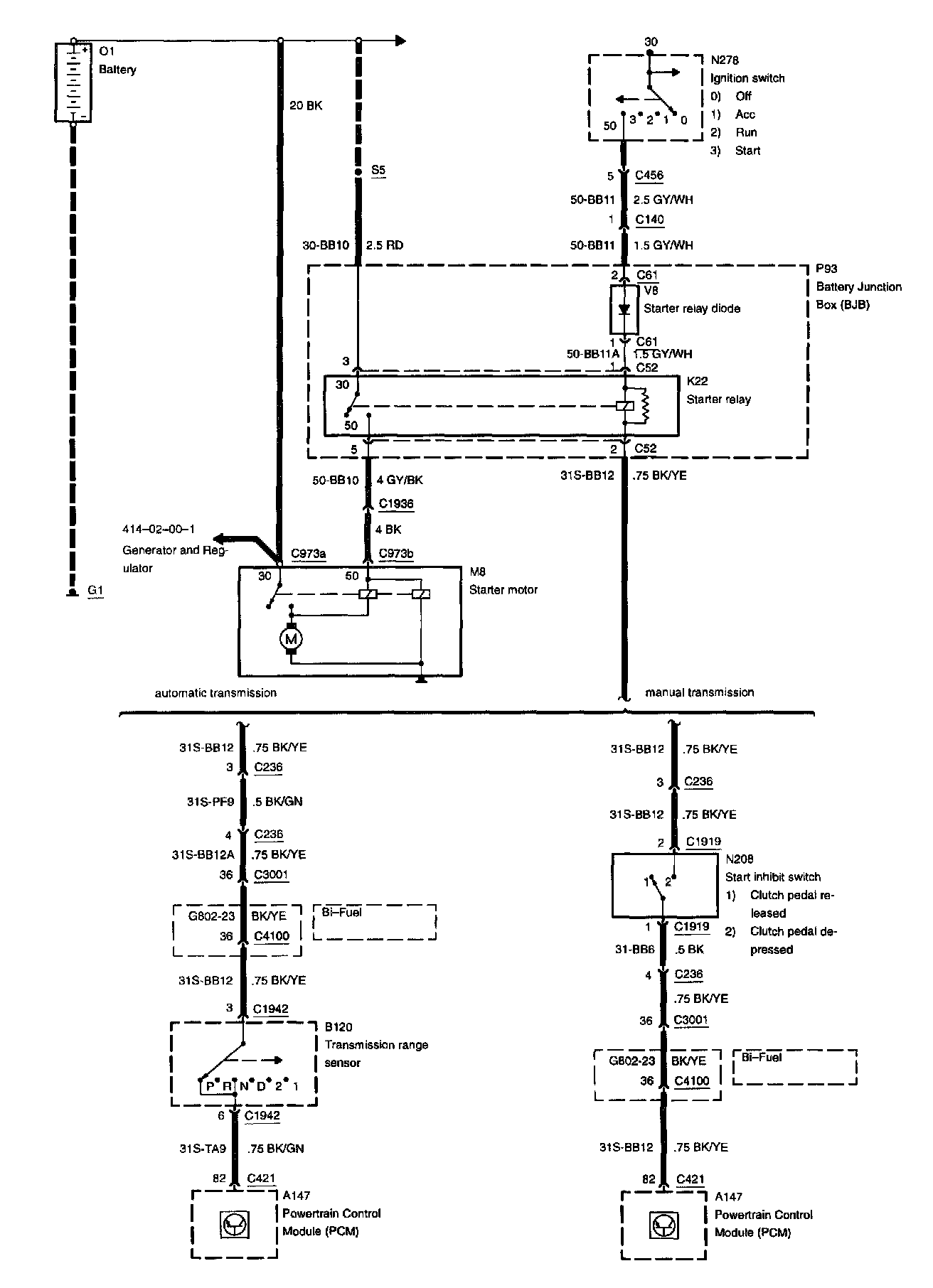

Diagram 419-01b-00-1:

Battery
Battery Junction Box
Ignition Switch
Powertrain Control Module
Start Inhibit Switch
Starter Motor
Starter Relay
Starter Relay Diode
Transmission Range Sensor

Diagram 419-01b-00-2:

Anti-Theft ON Indicator
Battery Junction Box
Central Junction Box
Fuse F34
Fuse F41
Passive Anti-Theft Transceiver Module
Powertrain Control Module
Powertrain Control Module Power Relay

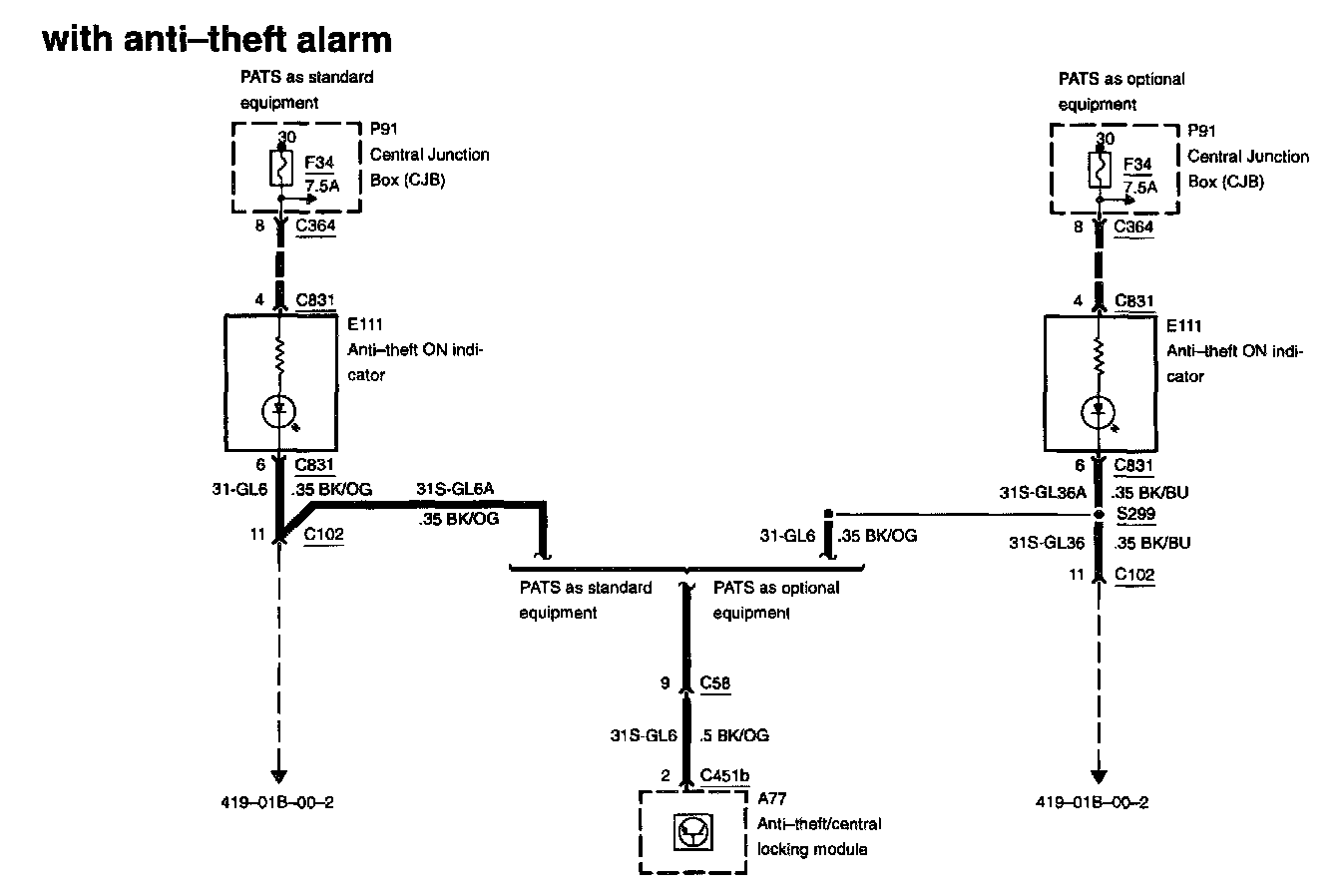

Diagram 419-01b-00-3:

Anti-Theft ON Indicator
Anti-Theft Central Locking Module
Central Junction Box
Fuse F34


RELATED DIAGRAMS

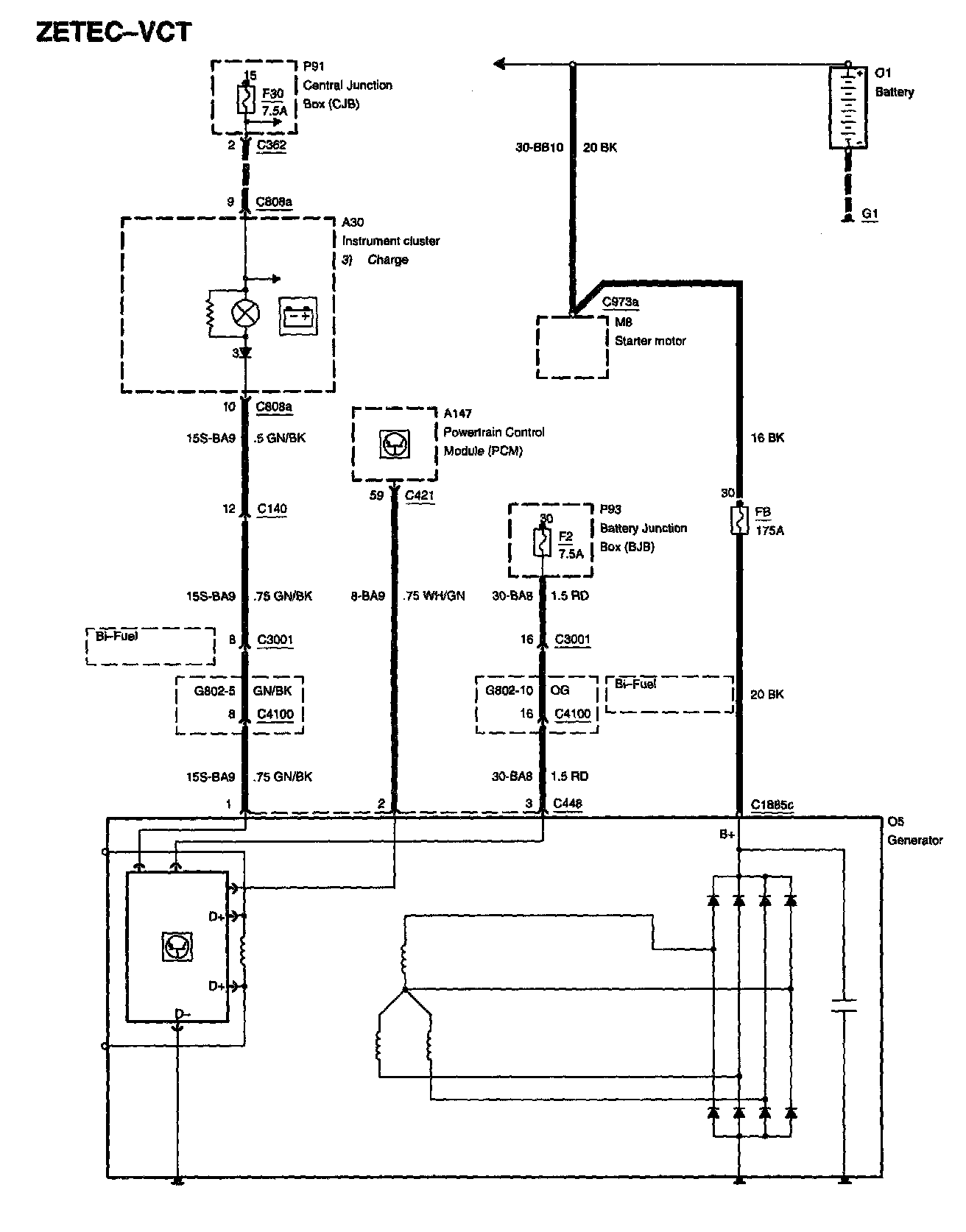

Diagram 414-02-1:
