Test J: Excessive Brake Pedal Effort
TEST J: EXCESSIVE BRAKE PEDAL EFFORT

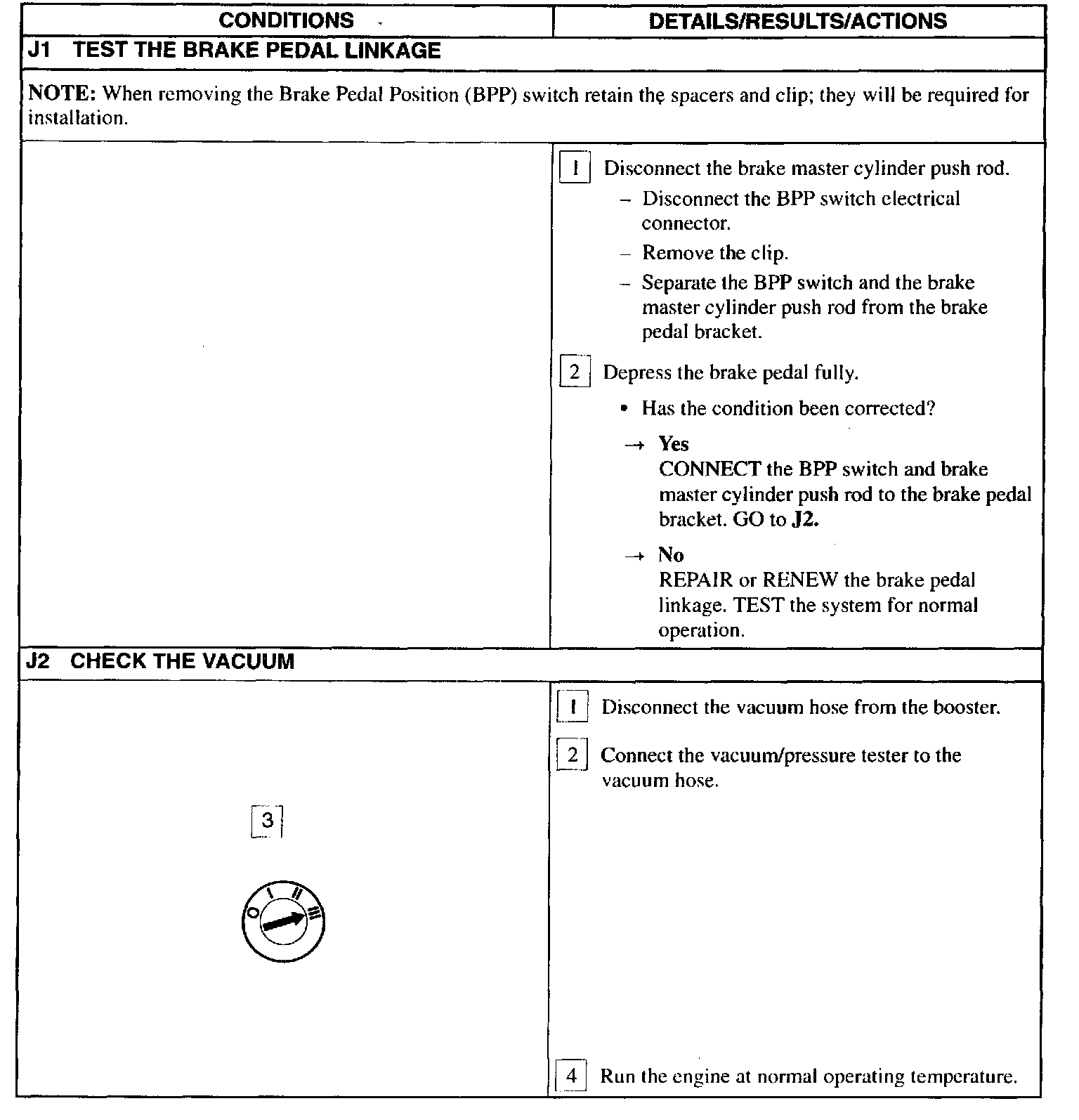

Test J1-J2:

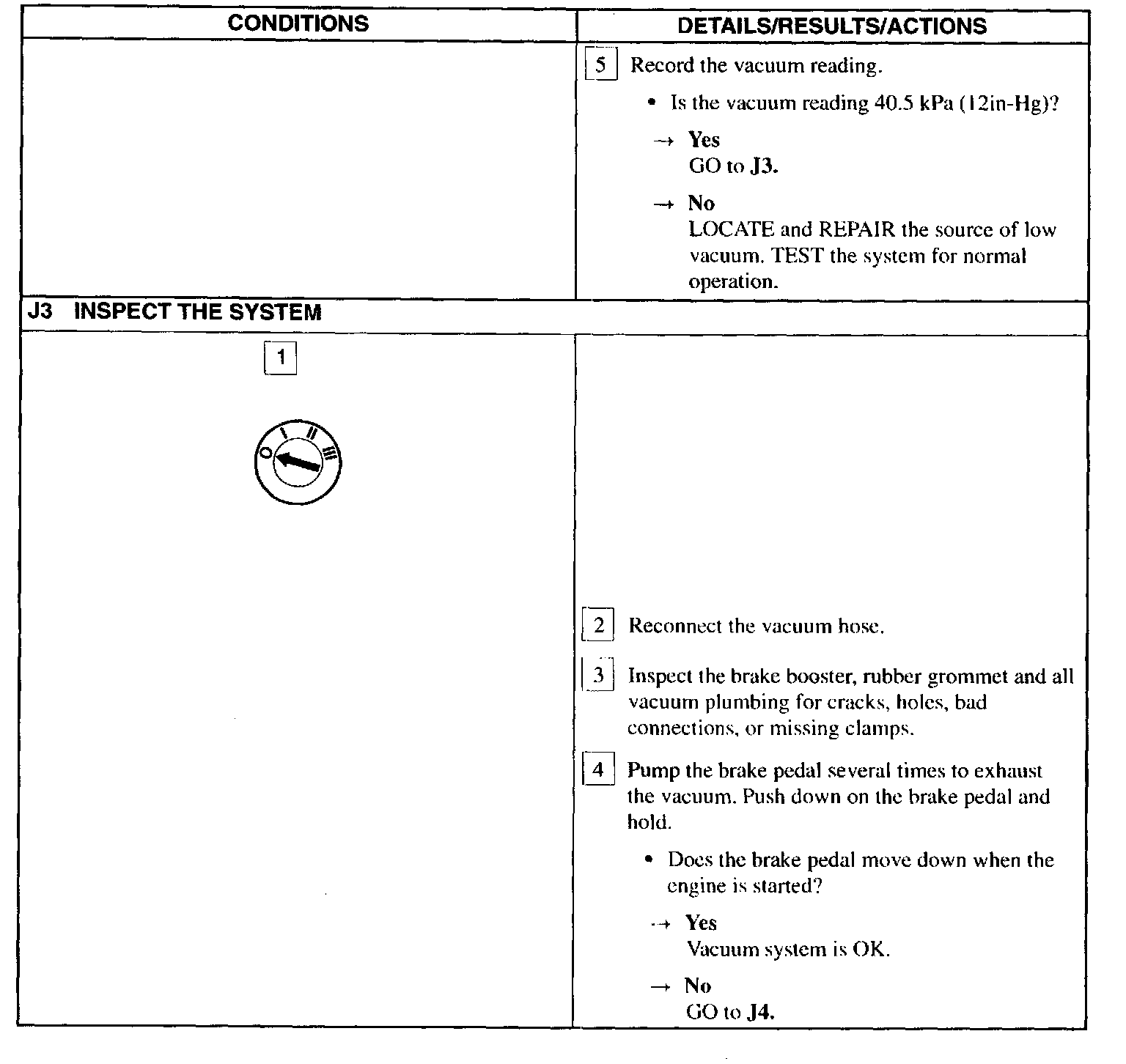

Test J2-J3:

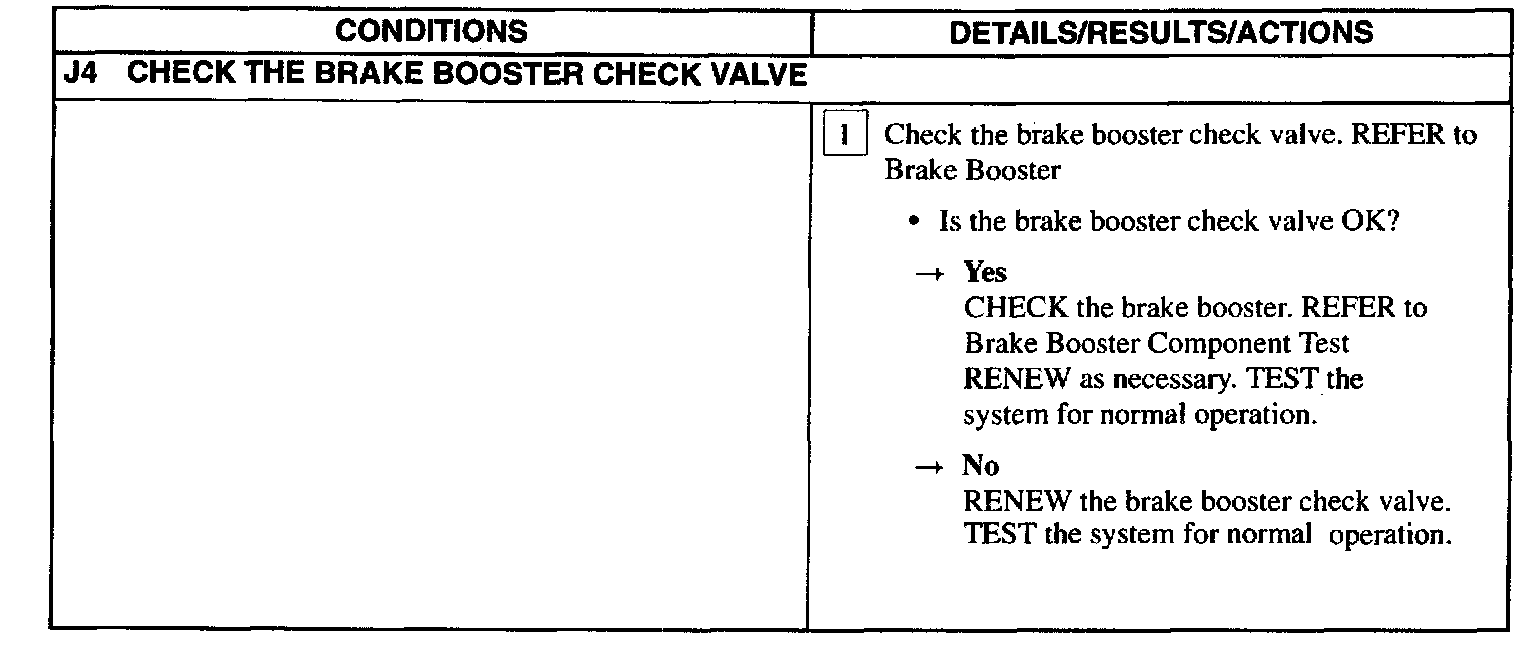

Test J4:
