Test G: Brake Lockup During Light Brake Pedal Force
Test G: Brake Lockup During Light Brake Pedal Force
TEST G: BRAKE LOCKUP DURING LIGHT BRAKE PEDAL FORCE

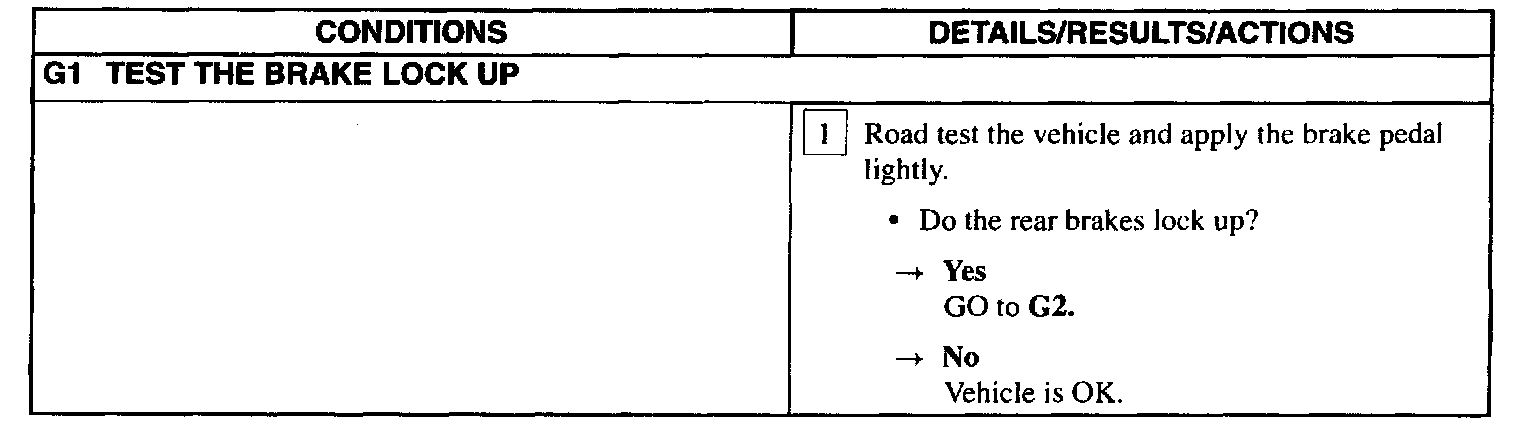

Test G1:

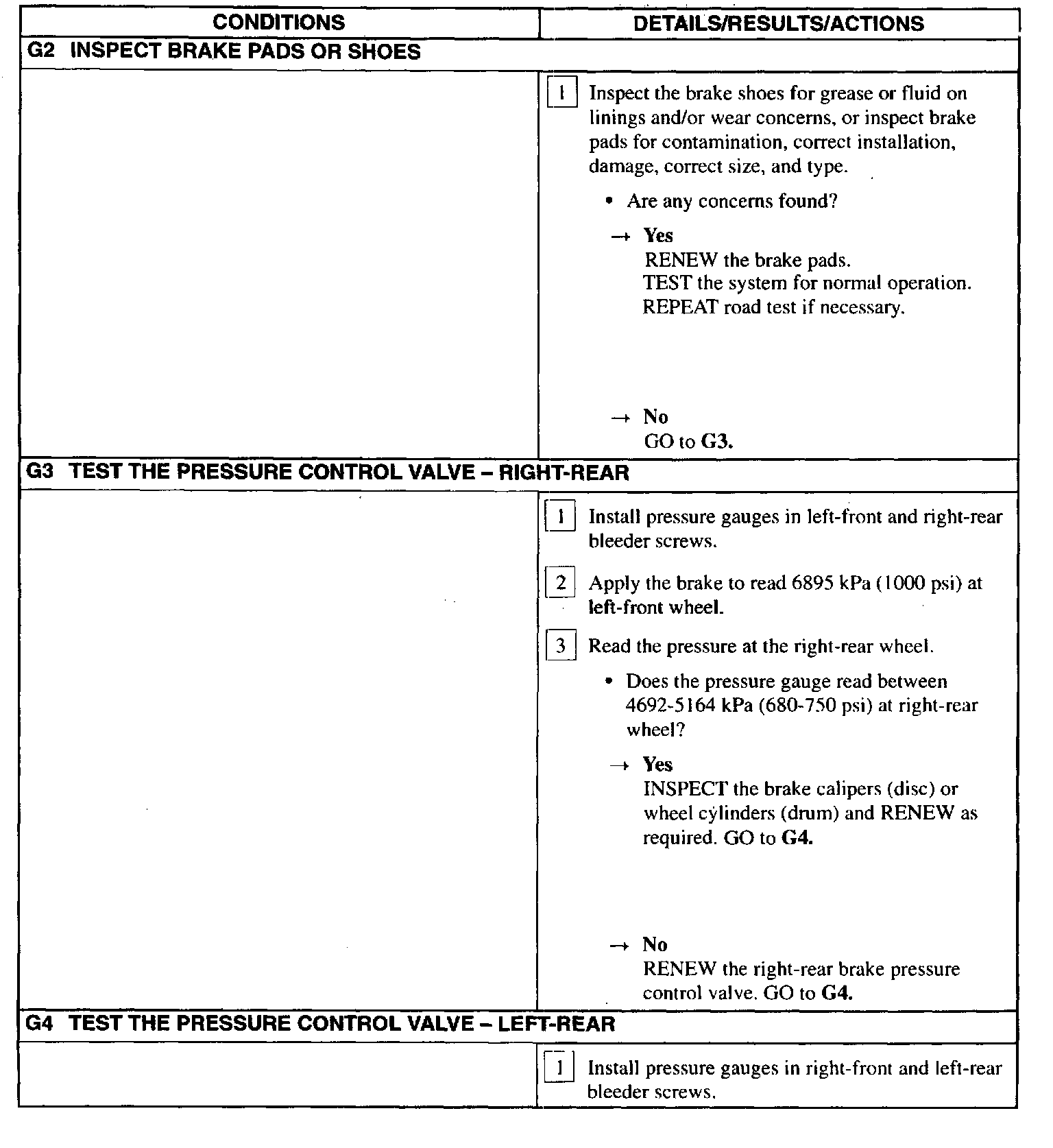

Test G2-G4:

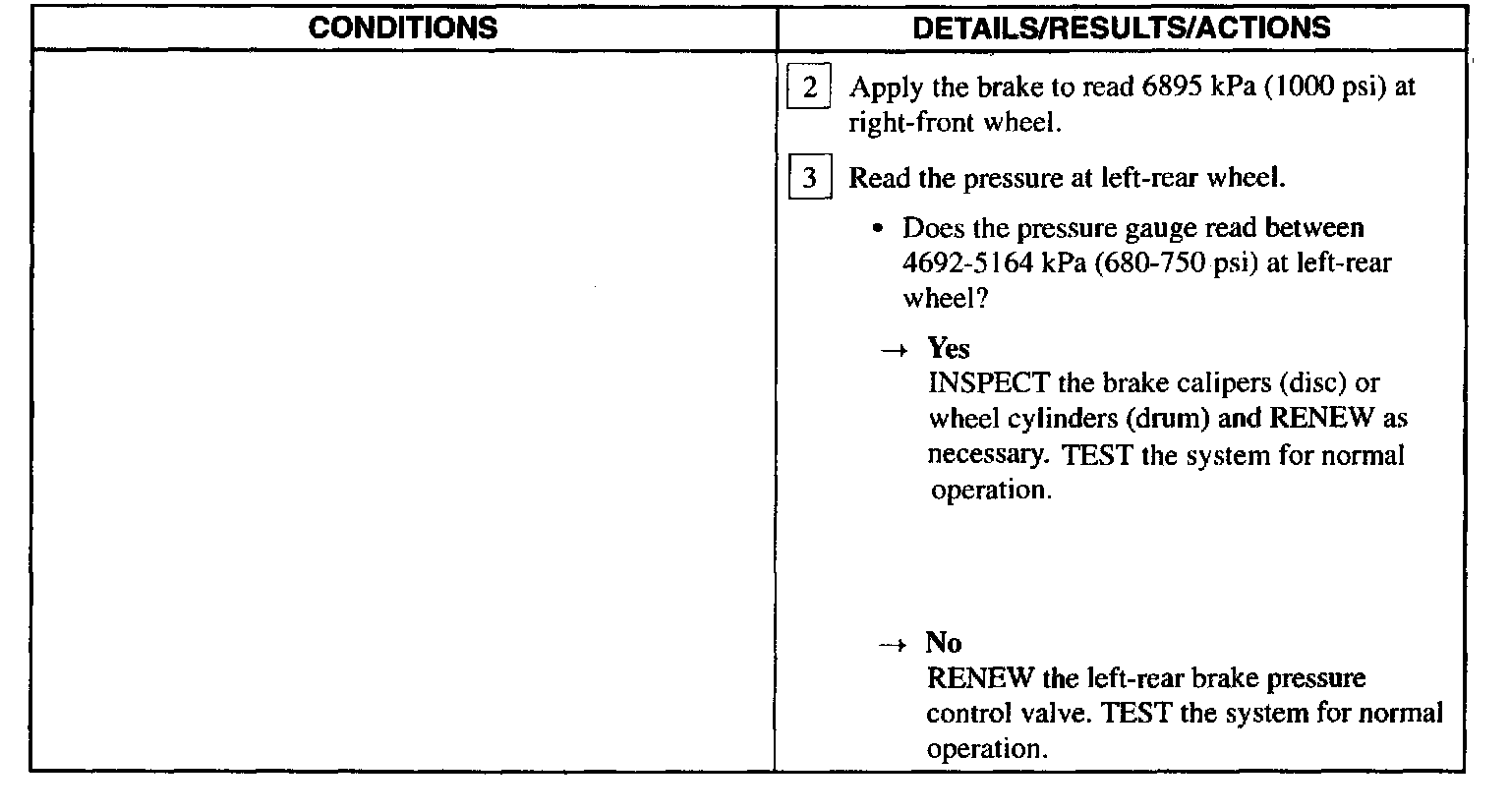

Test G4 Continued:
