Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C: Vibration When Brakes Are Applied
Test C: Vibration When Brakes Are Applied
TEST C: VIBRATION WHEN BRAKES ARE APPLIED

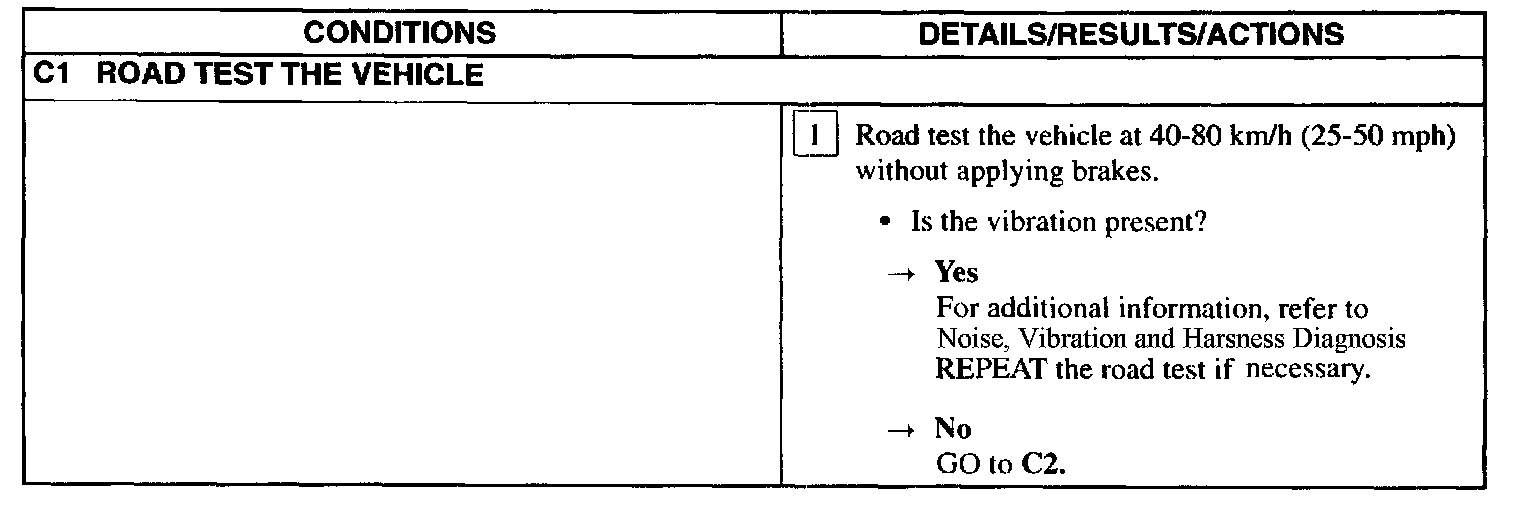

Test C1:

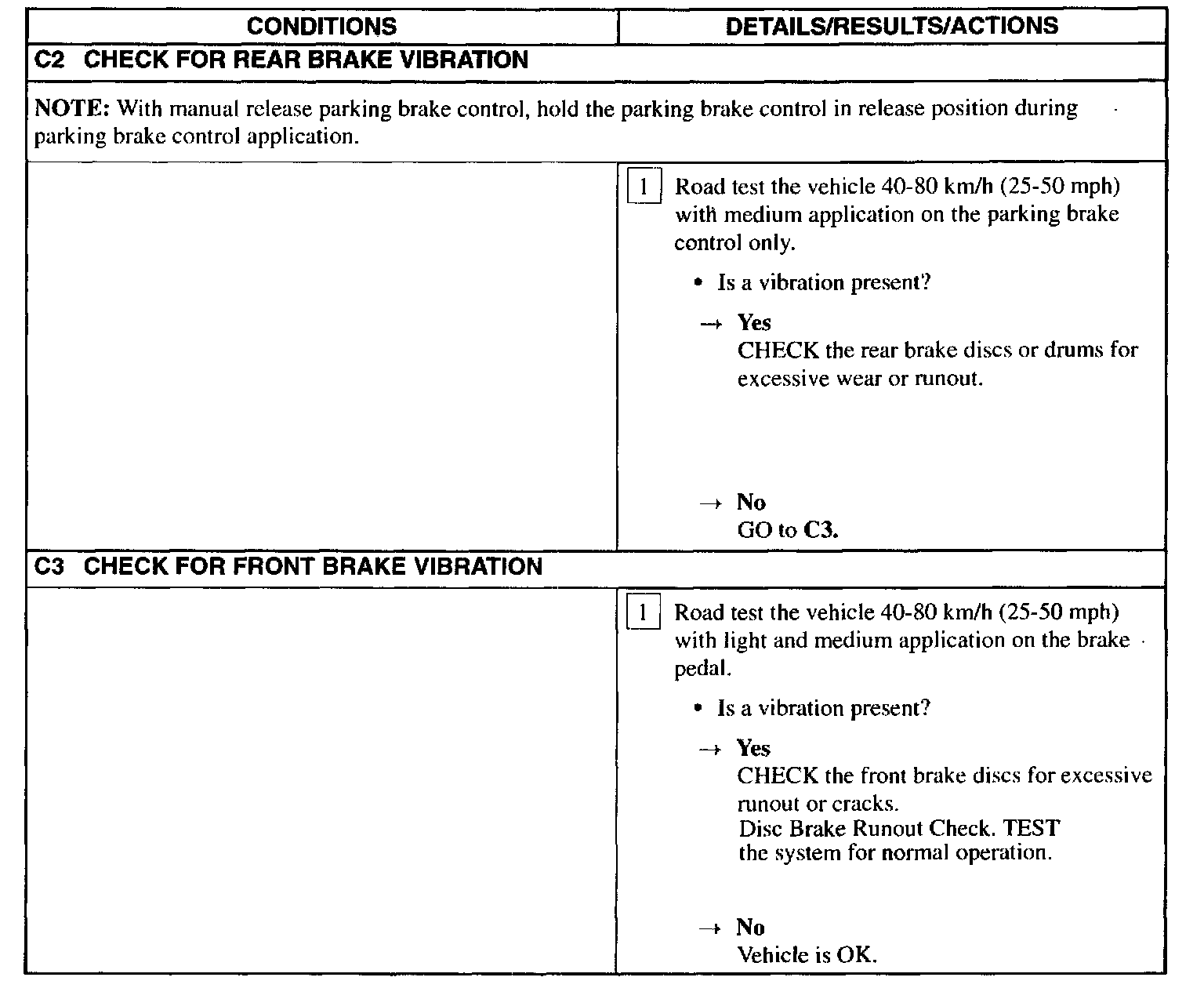

Test C2-C3:
