Test B: Red Brake Warning Indicator Always On
Test B: Red Brake Warning Indicator Always On
TEST B: RED
BRAKE WARNING INDICATOR
ALWAYS ON

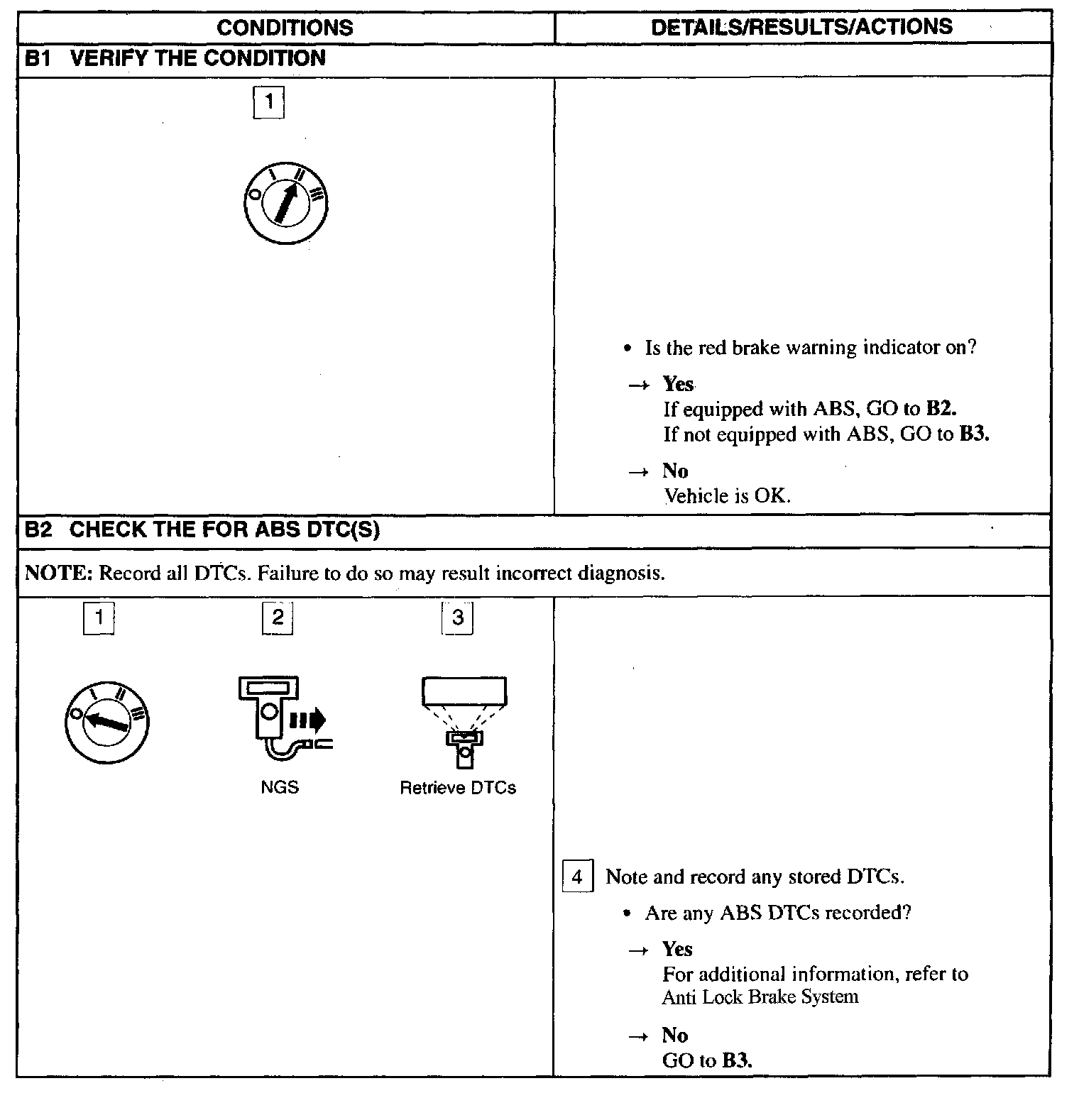

Test B1-B2:

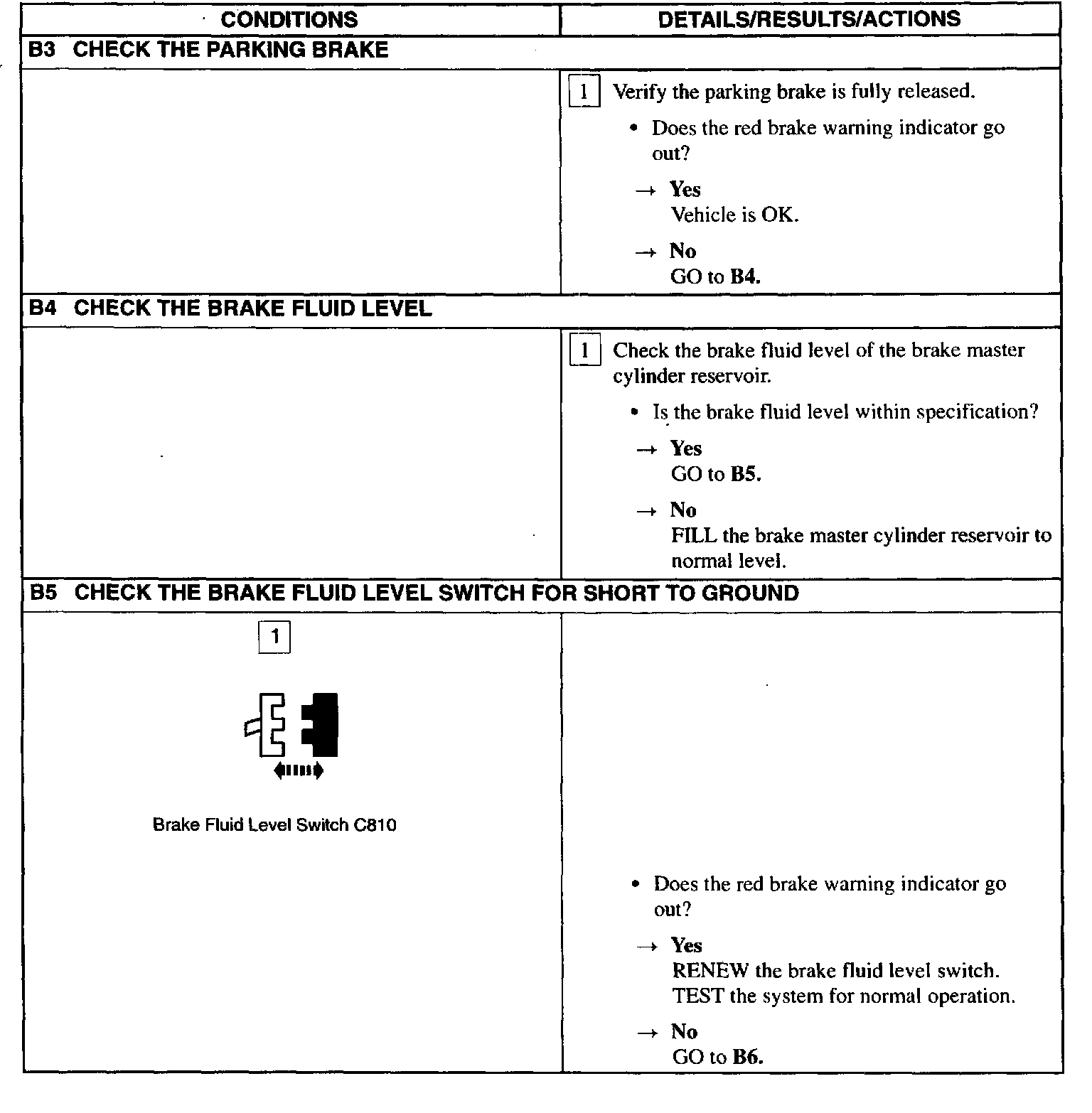

Test B3-B5:

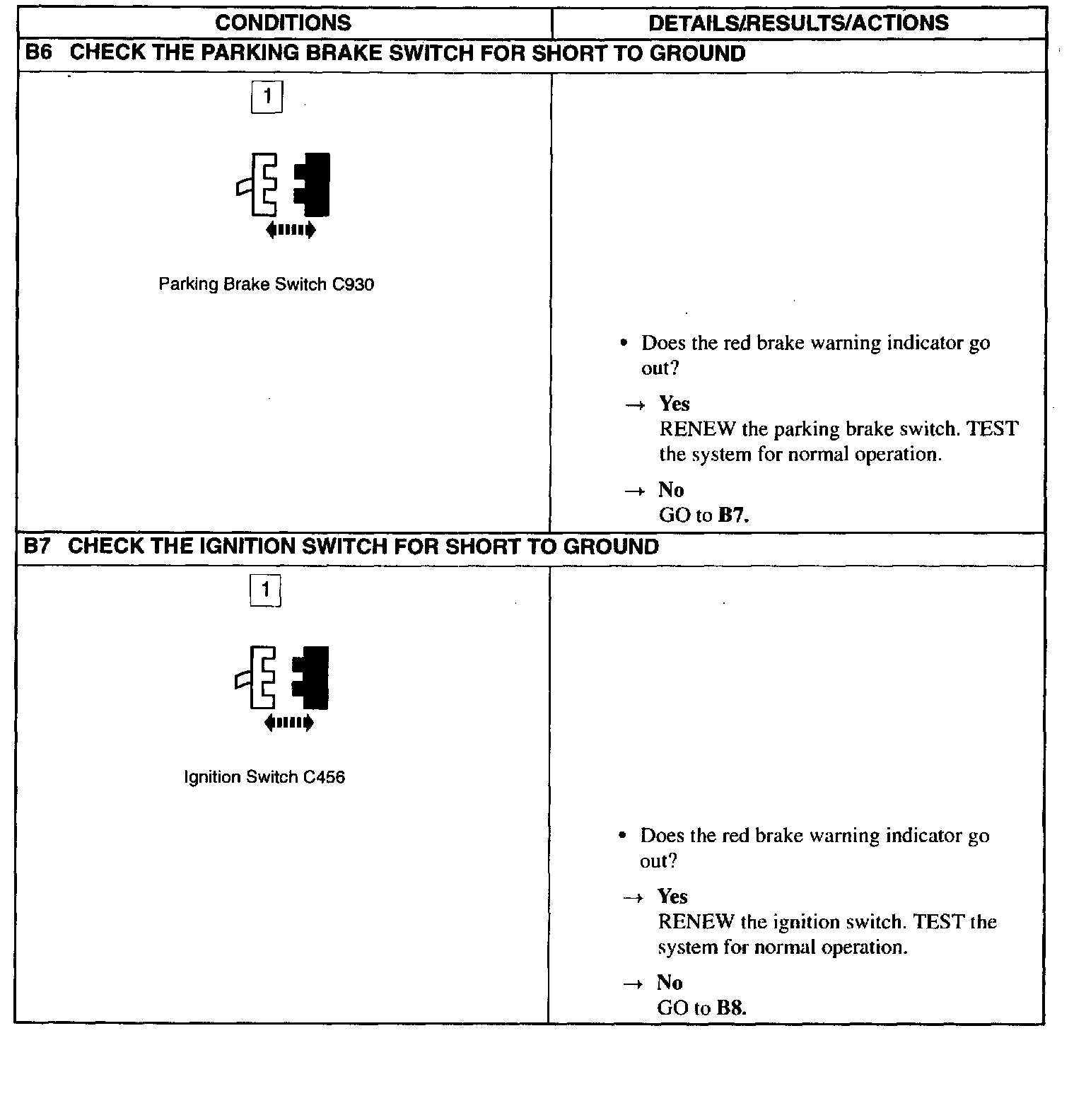

Test B6-B7:

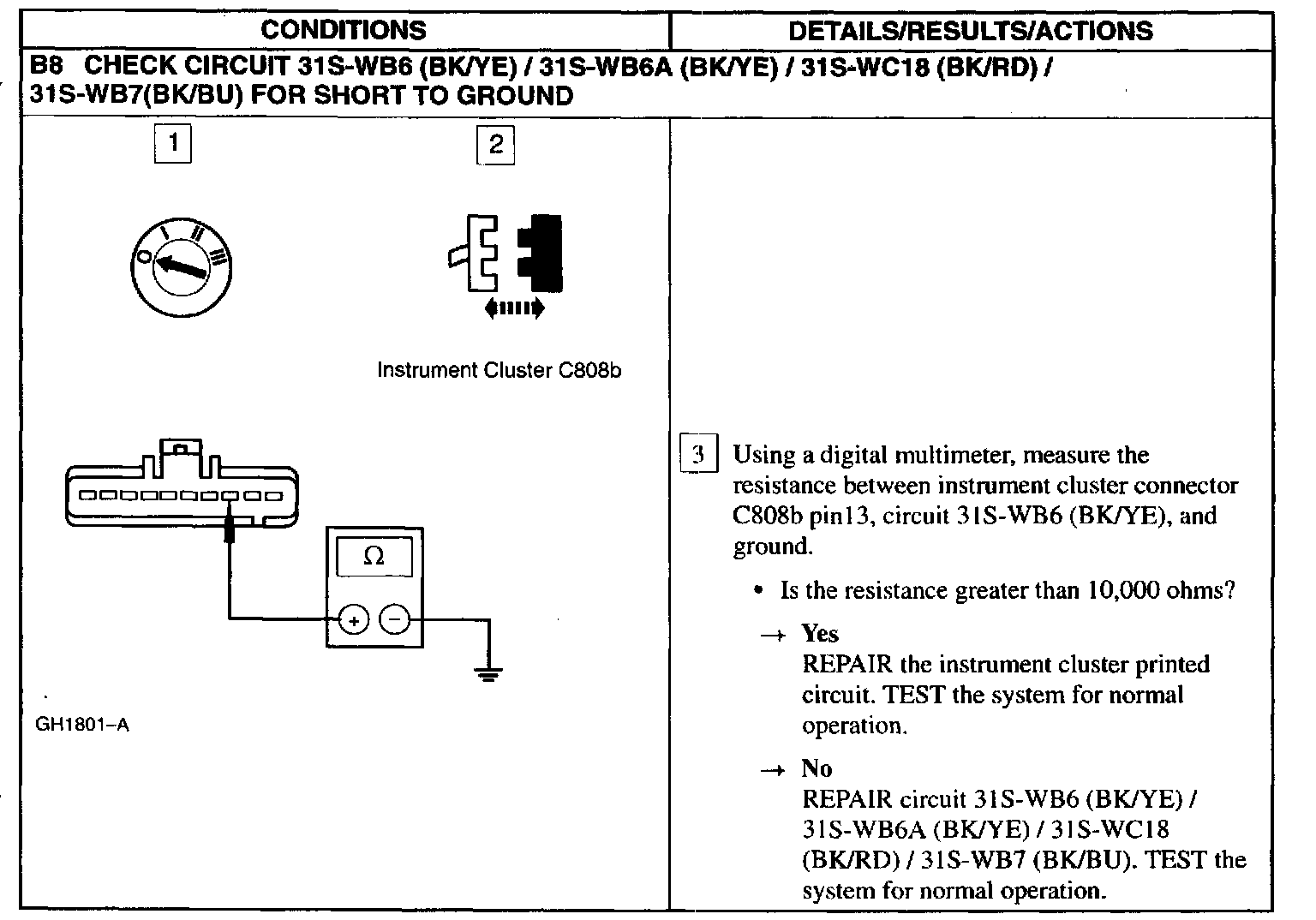

Test B8:
