Front

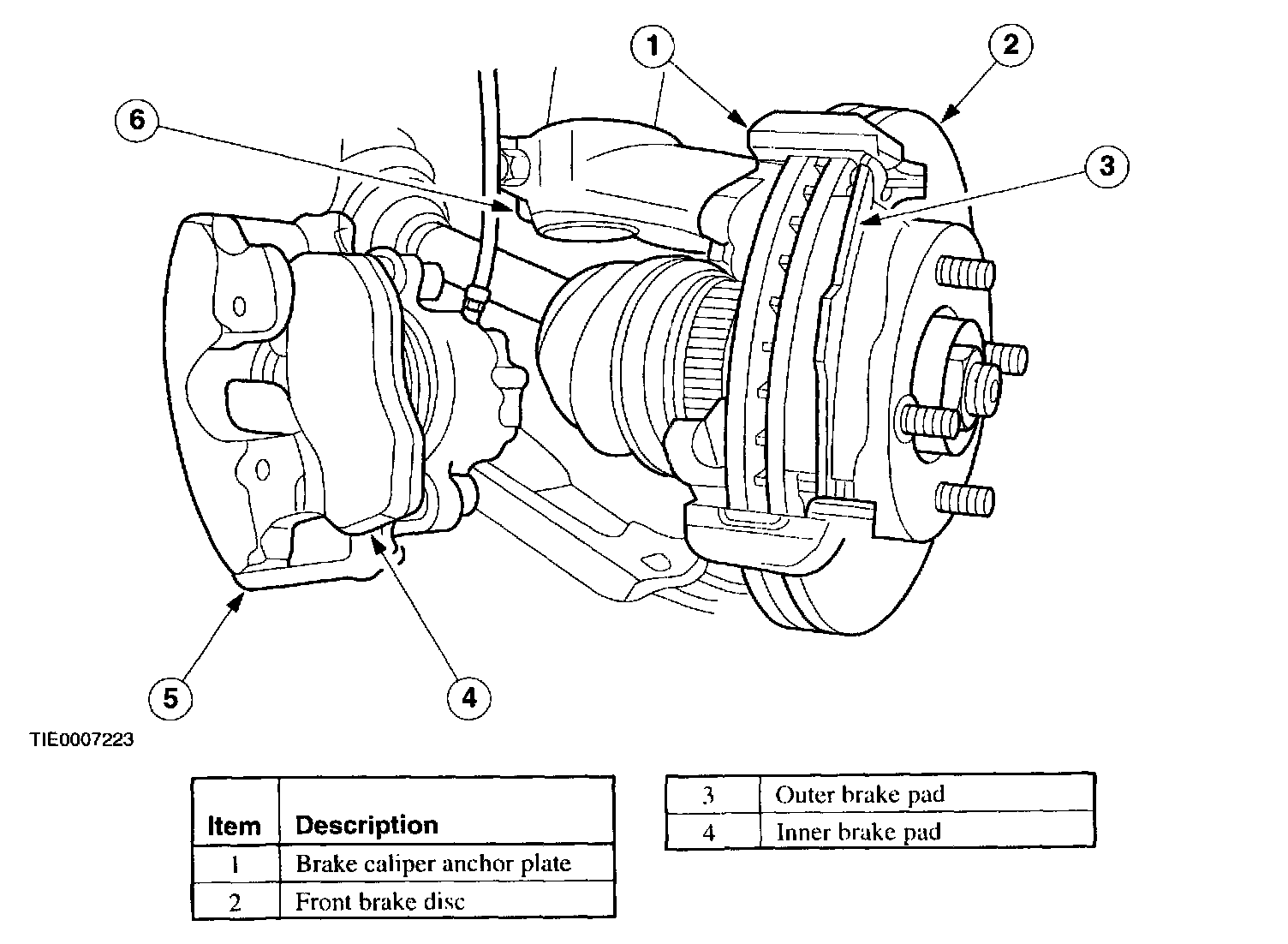

1 Of 2:

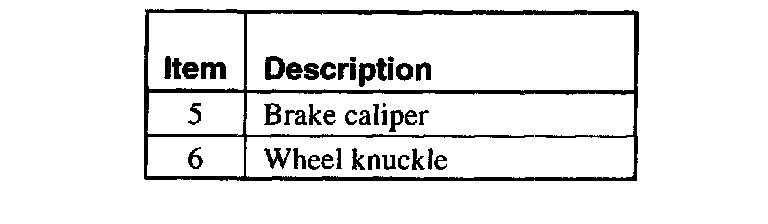

2 Of 2:

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the eyes. Wash hands thoroughly after handling. If brake fluid contacts the eyes, flush the eyes for 15 minutes with cold running water. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting, get medical attention immediately. Failure to follow these instructions may result in personal injury.

NOTE: Brake system materials inherently generate noise and heat in order to dissipate energy. As a result, occasional squeal is possible, which may be enhanced by severe environmental conditions, such as cold, heat, rain, snow, salt and mud.

The front disc brake system consists of the following components:
- brake disc pads
- single piston, floating disc caliper
- brake discs
- brake caliper anchor plate
- brake hoses
