Rear

Removal

1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.

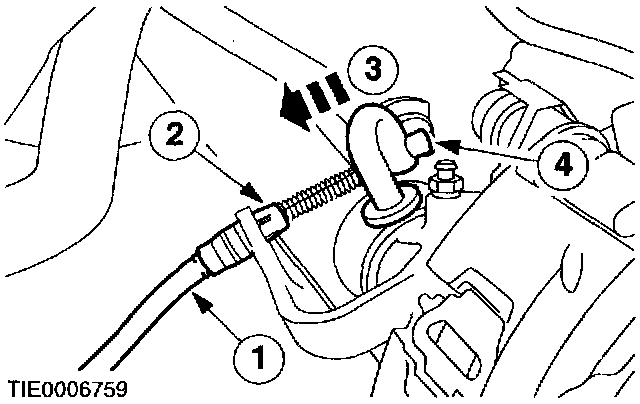

4. Detach the parking brake cable.
1 Pull back the parking brake lever.
2 Disconnect the cable from the lever.
3 Detach the cable clips.
4 Detach the cable.





5. CAUTION: Secure the brake caliper and anchor plate out of the way to prevent damage to the flexible brake hose.

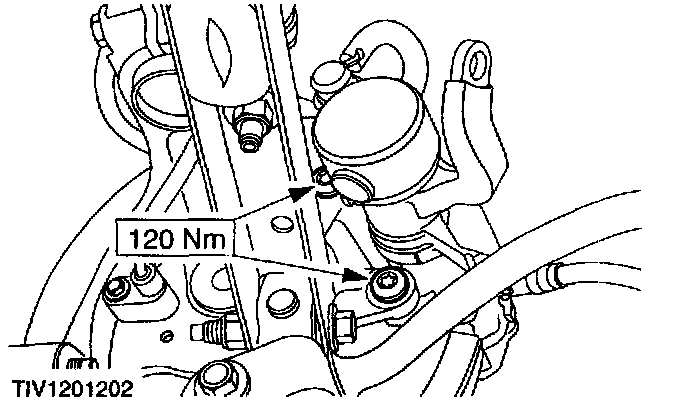

Detach the brake caliper and anchor plate.

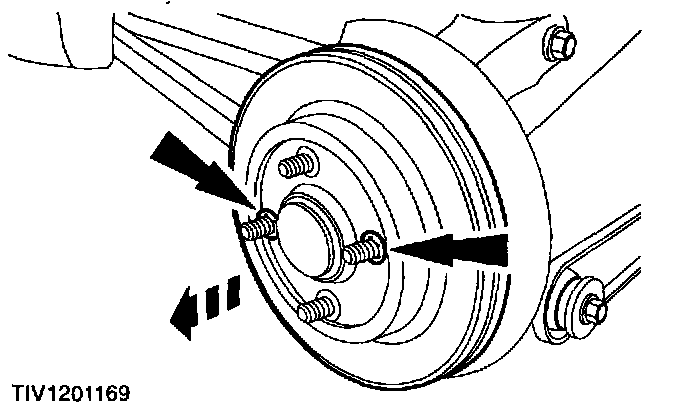

6. Remove the brake disc.
- Remove the retainers (if equipped).

Installation





1. Install the brake disc.





2. Install the caliper and anchor plate assembly.

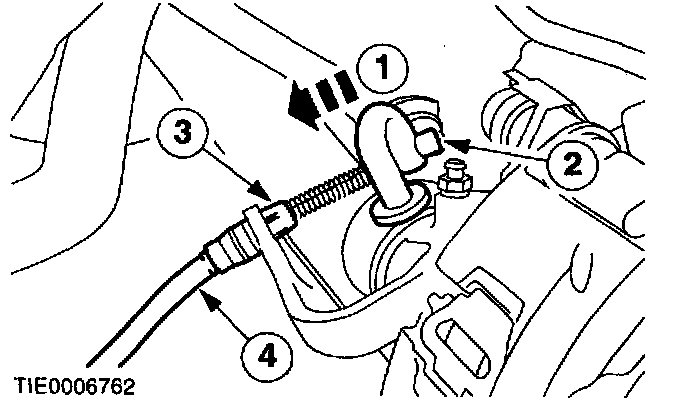

3. Install the parking brake cable.
1 Position the cable.
2 Secure the cable.
3 Pull back the parking brake lever.
4 Connect the cable to the parking brake lever.





4. Install the wheel.
