M: Traction Control Switch Indicator Is Inoperative
M: Traction Control Switch Indicator Is Inoperative
TEST M:
TRACTION CONTROL SWITCH
INDICATOR IS INOPERATIVE

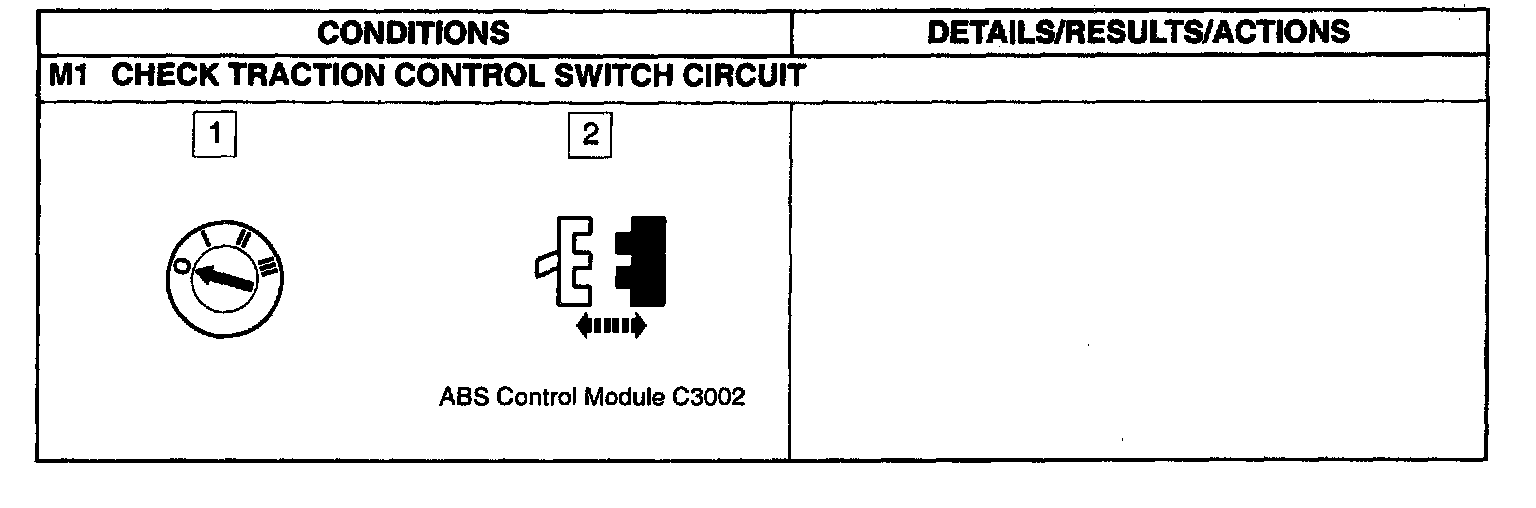

Test M1:

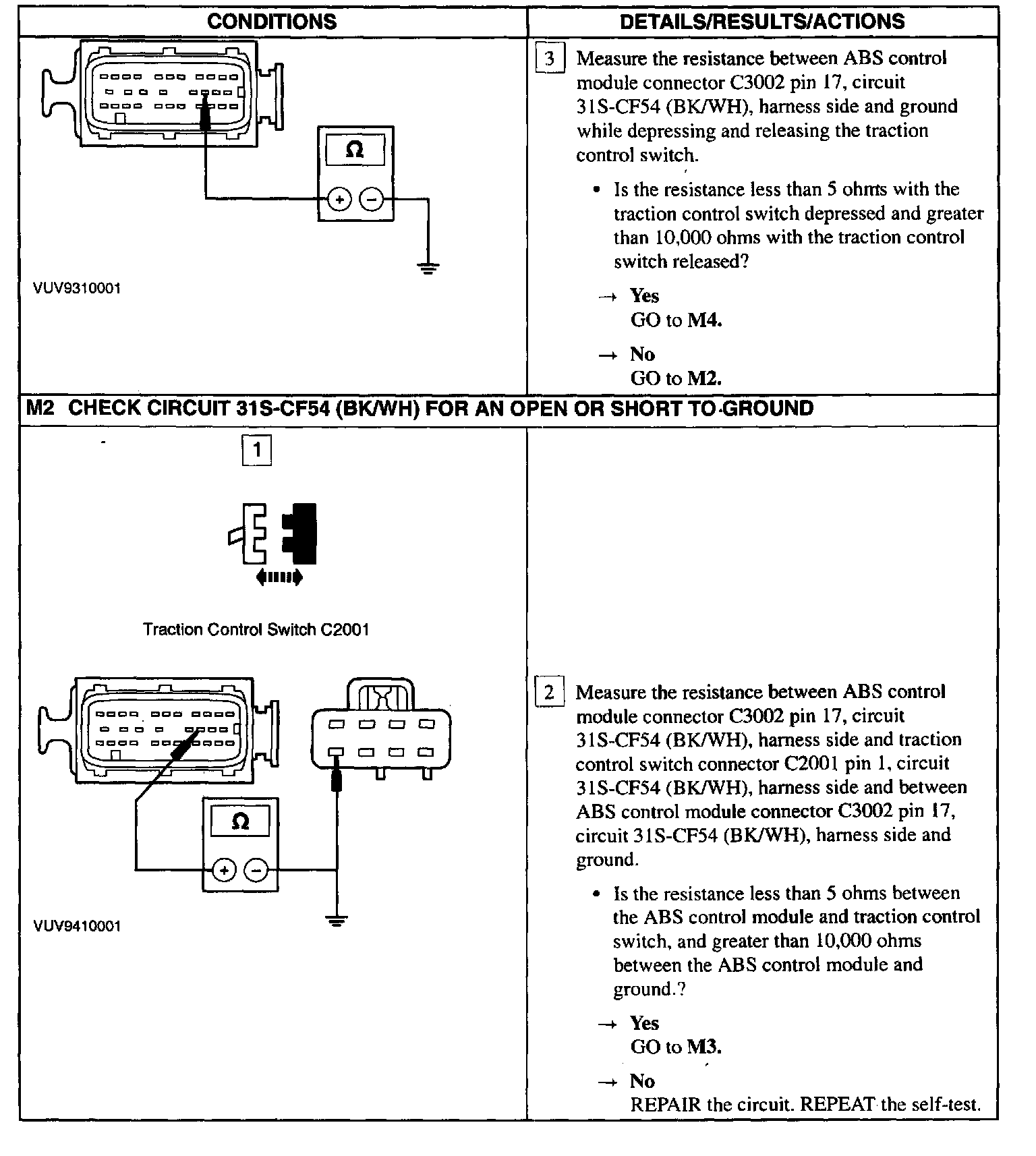

Test M1-M2:

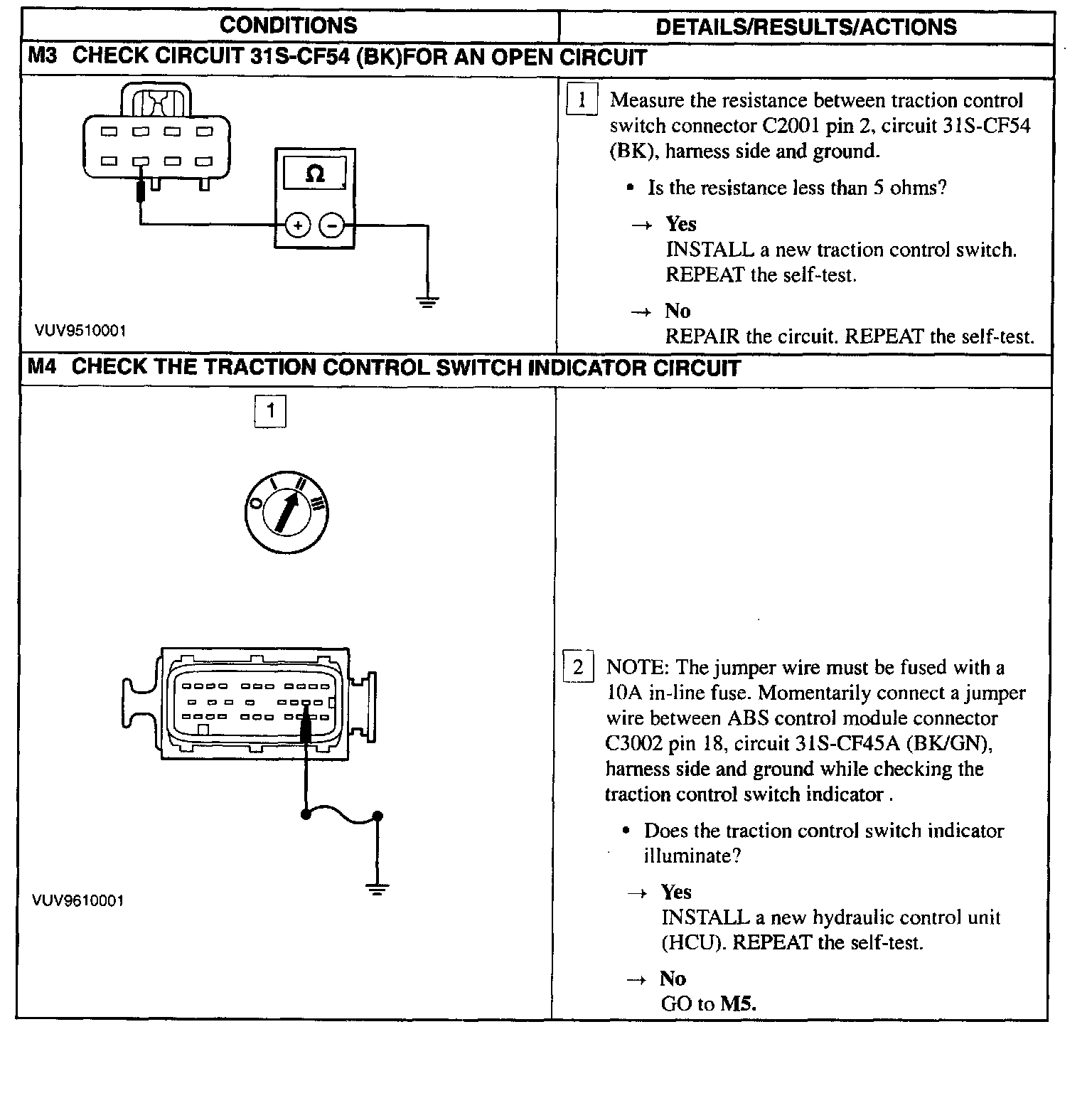

Test M3-M4:

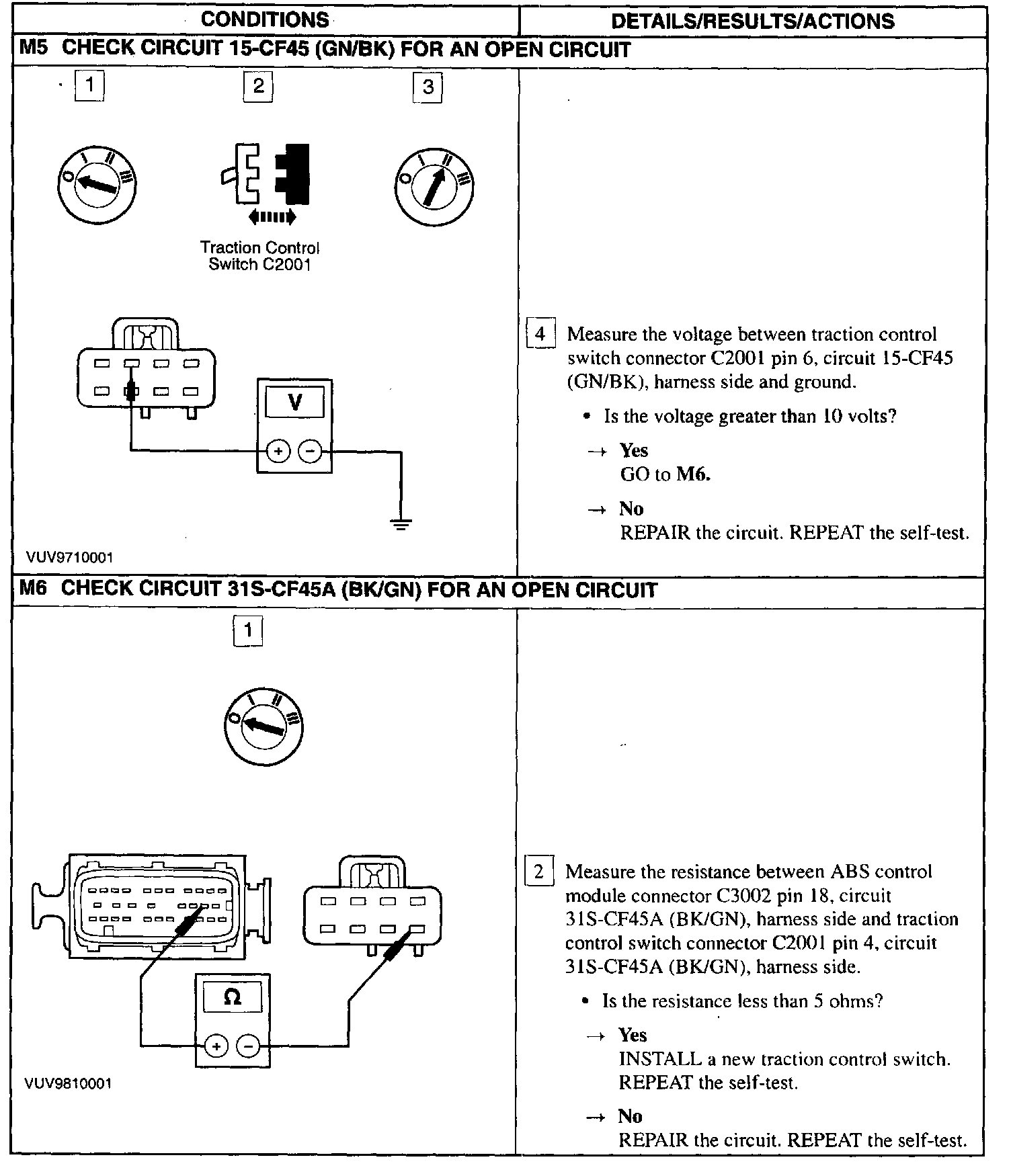

Test M5-M6:
