Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
I: Yellow ABS Lamp Does Not Self Check/Always On/No DTCS
I: Yellow ABS Lamp Does Not Self Check/Always On/No DTCS
TEST I: YELLOW ABS LAMP DOES NOT SELF CHECK/ALWAYS ON/NO DTCS

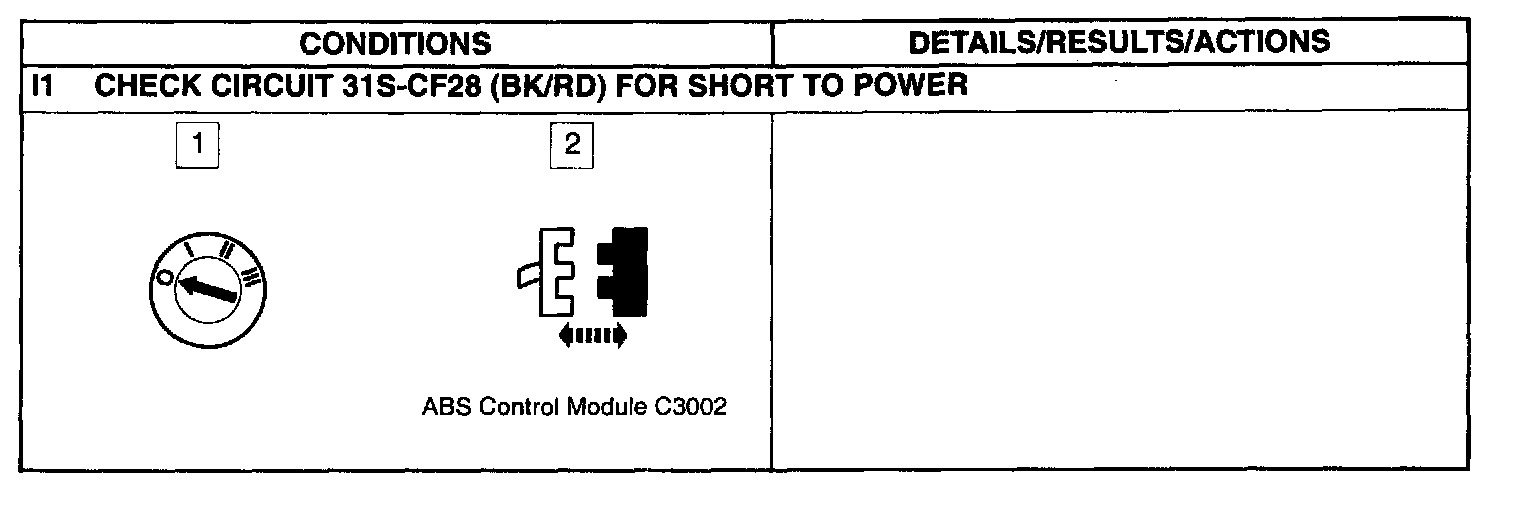

Test I1:

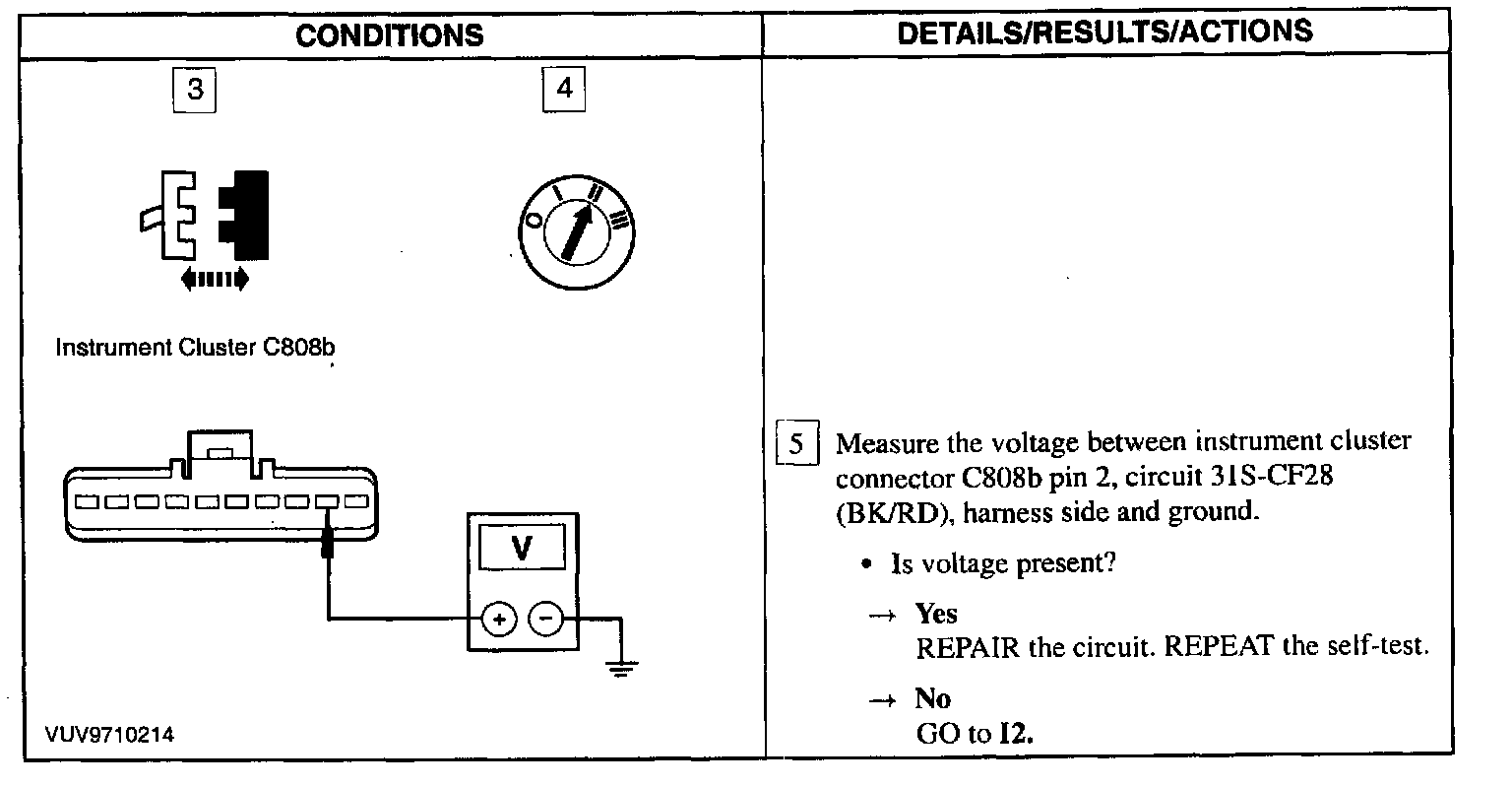

Test I1 Continued:

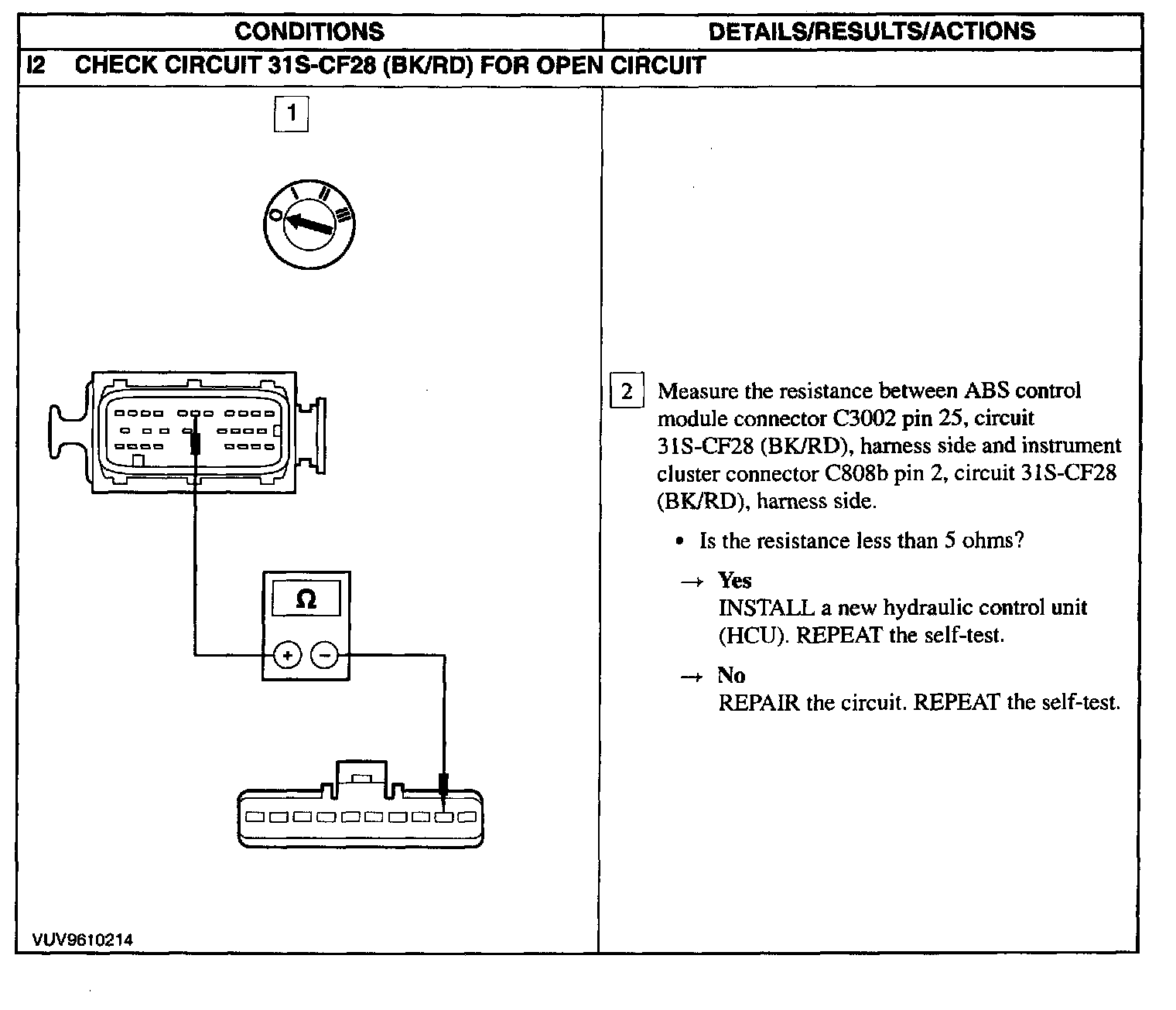

Test I2:
