H: C1233 (LF), C1234 (RF), C1235 (RR), C1236 (LR)
>>
Anti-Lock Brakes
Anti-Lock Brakes
H: DTC C1233 (LF), C1234 (RF), C1235 (RR), C1236 (LR)

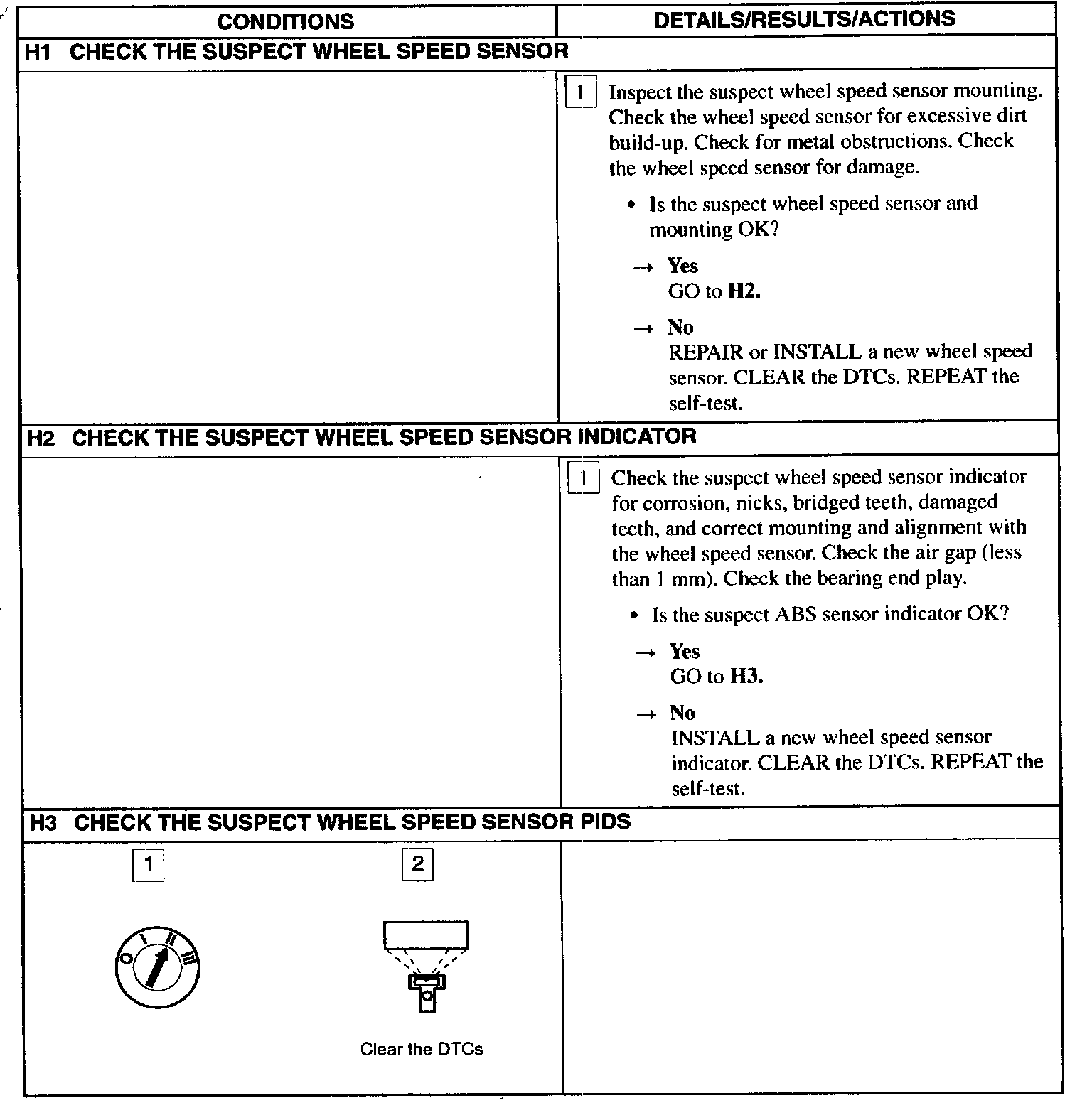

Test H1-H3:

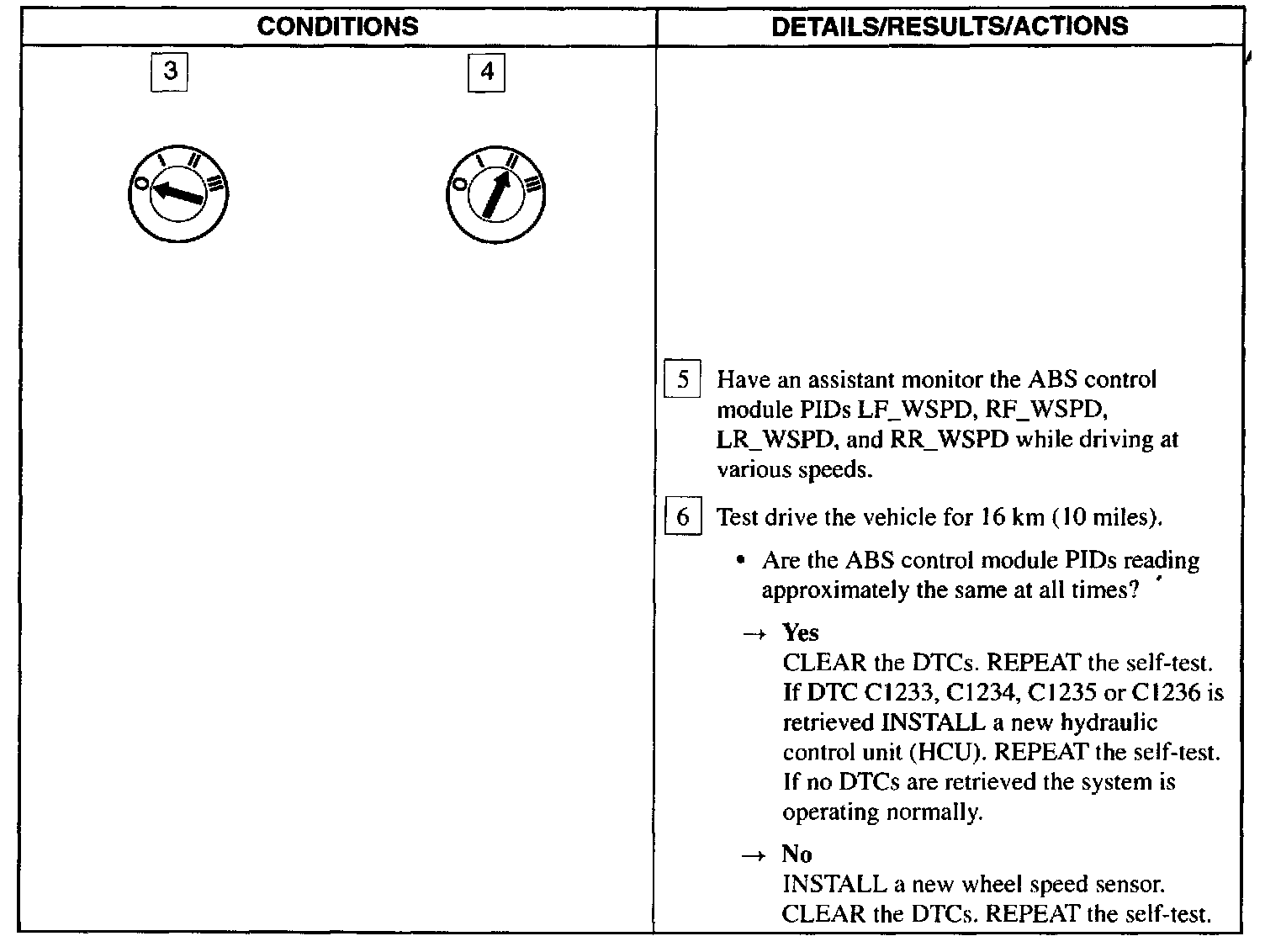

Test H3 Continued:
