G: C1222 - Wheel Speed Signal Mismatch
>>
Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
TEST G: DTC C1222 - WHEEL SPEED SIGNAL MISMATCH

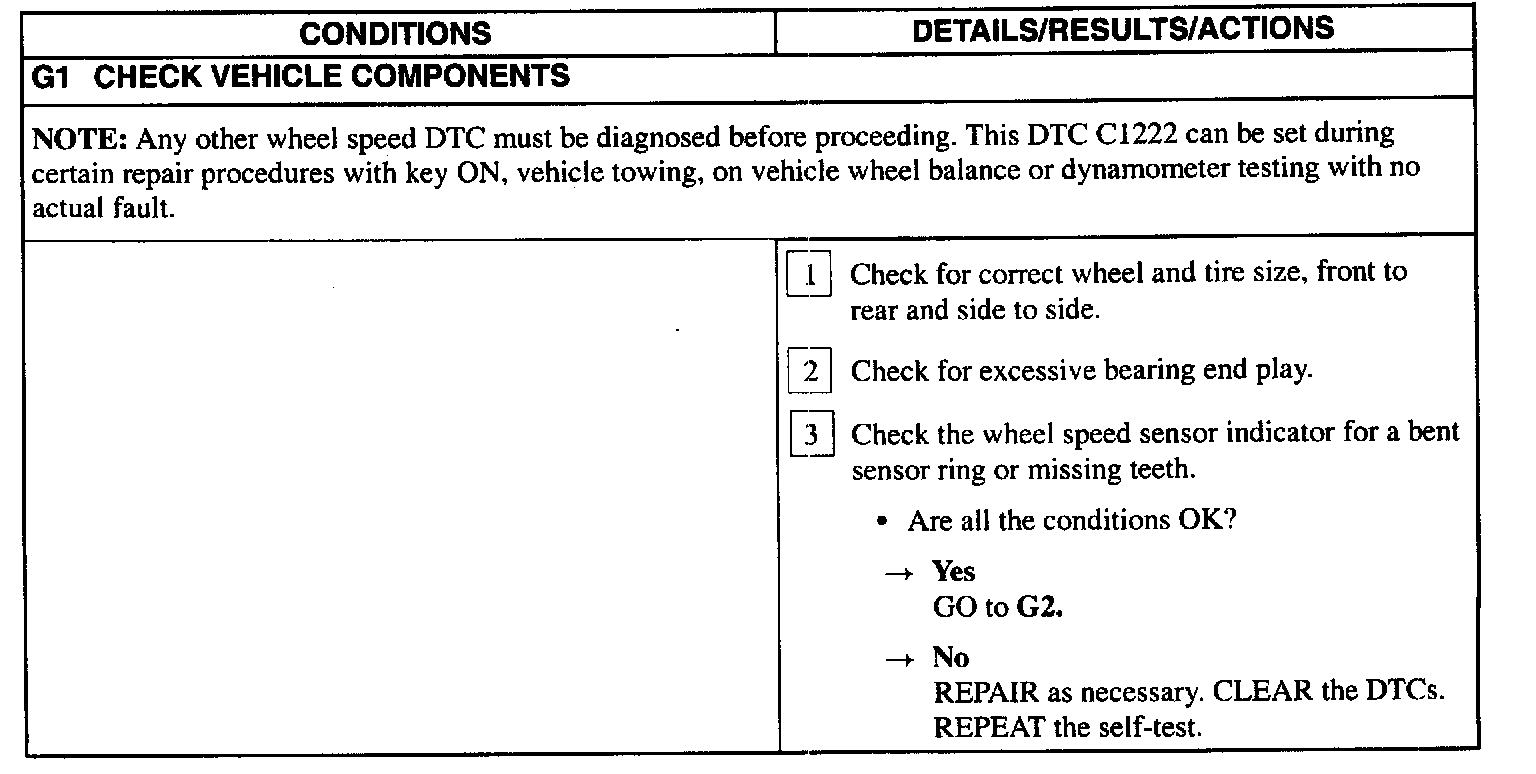

Test G1:

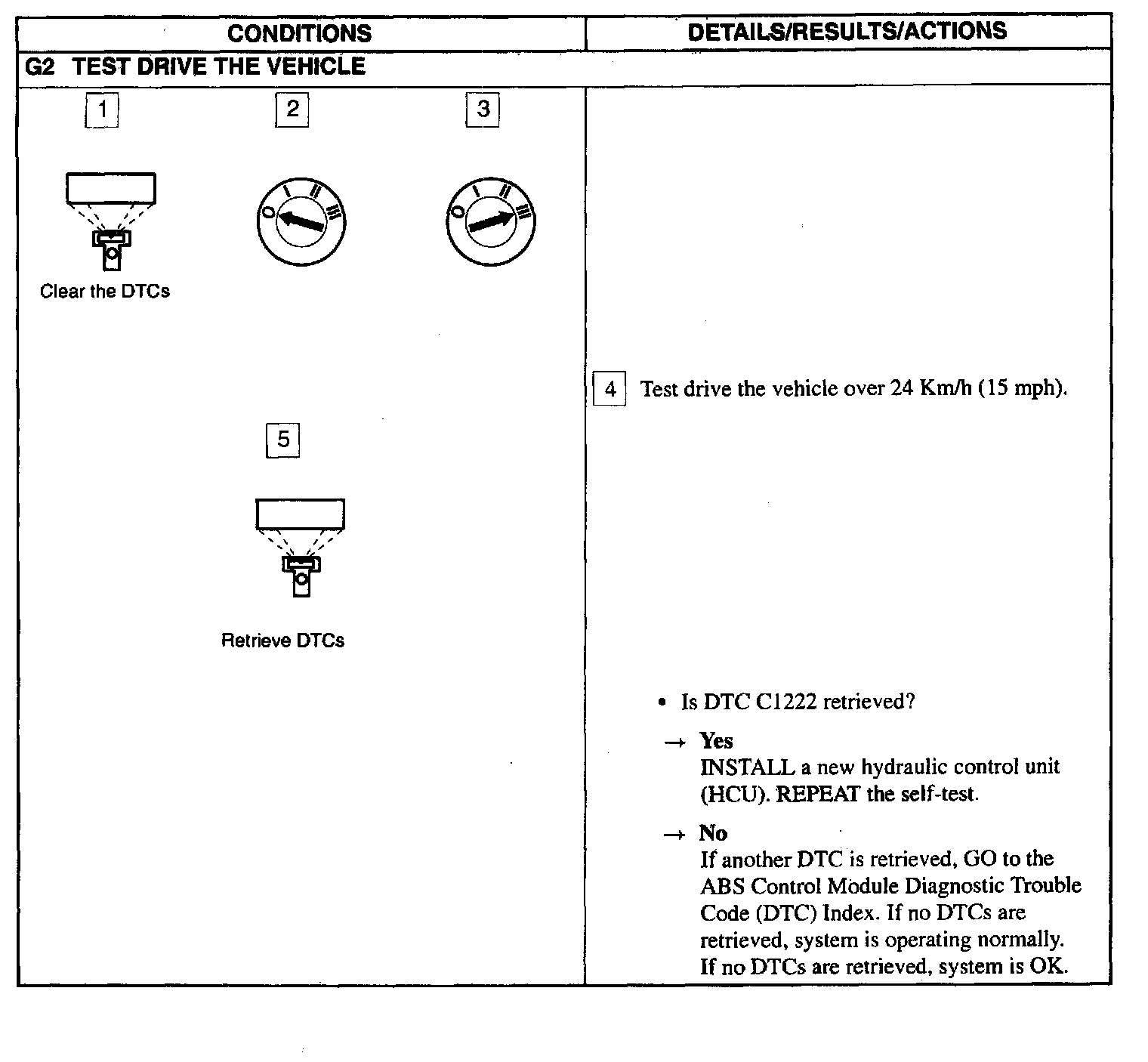

Test G2:
