Anti-Lock Brakes

E: DTC C1095-HYDRAULIC PUMP MOTOR CIRCUIT FAILURE

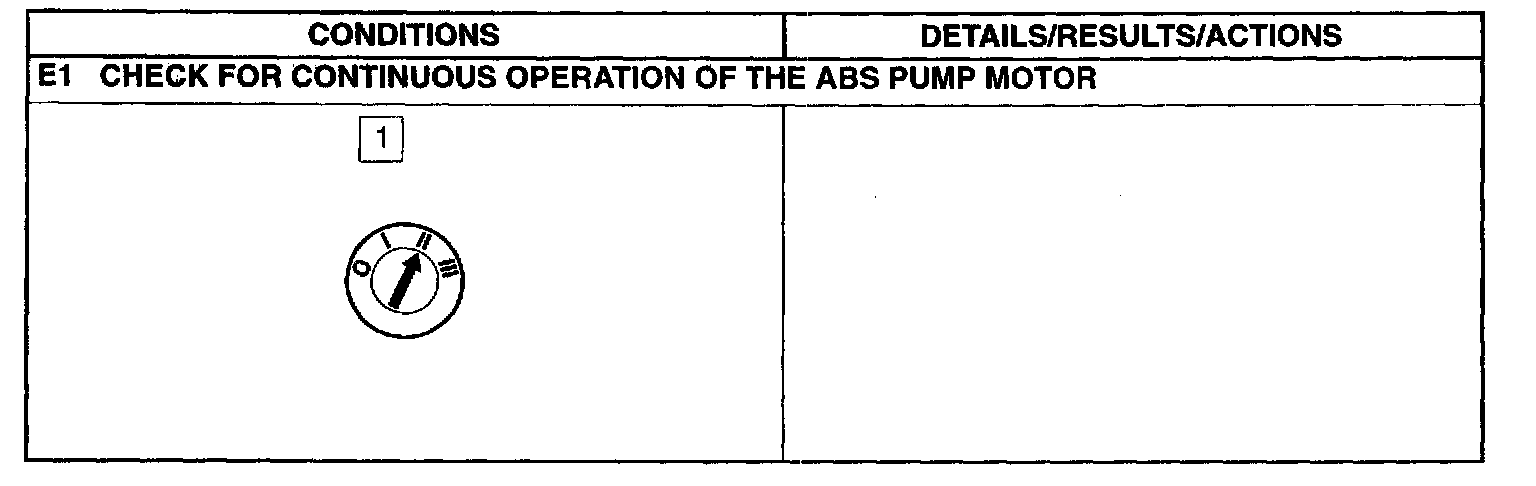

Test E1:

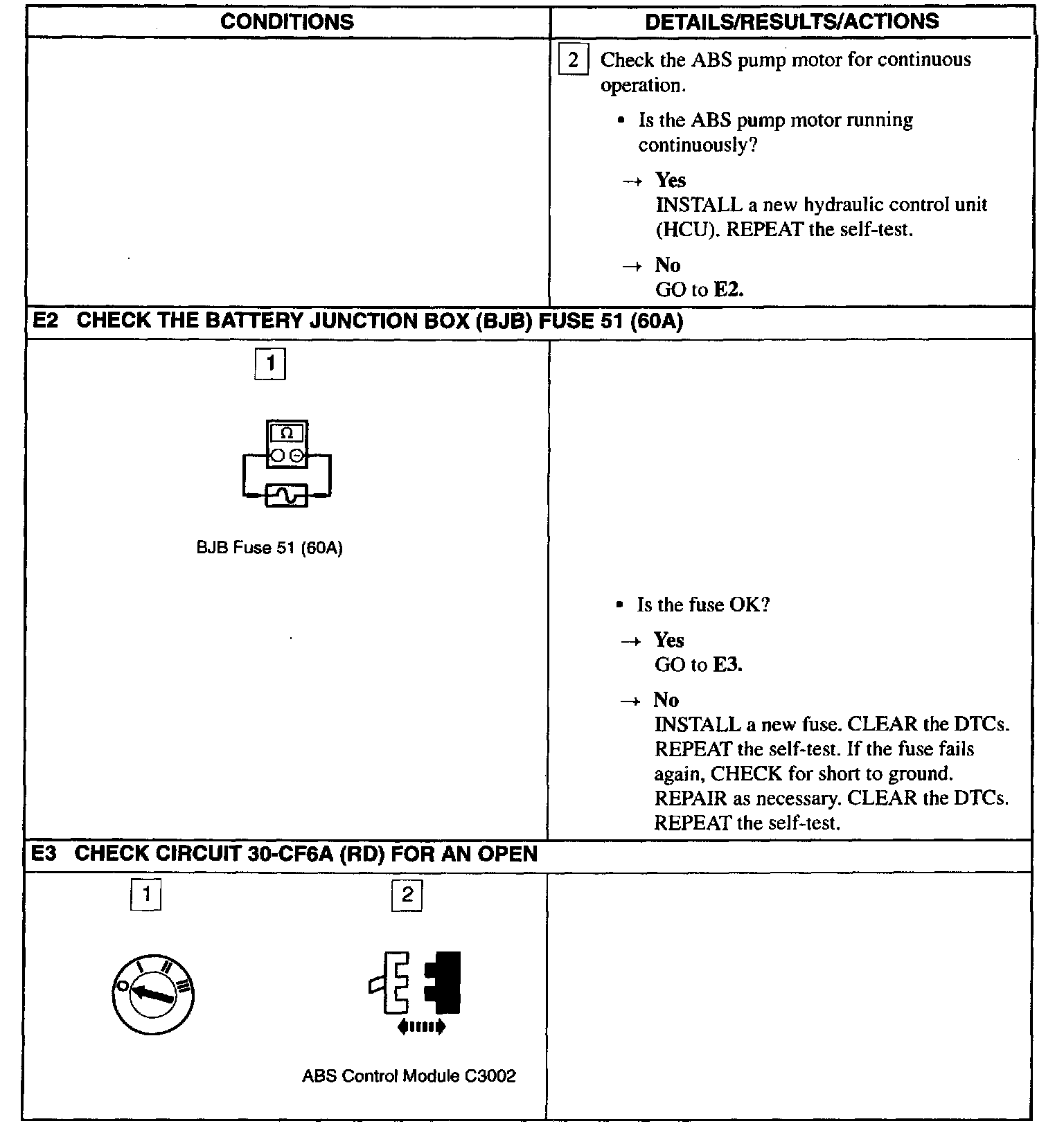

Test E1-E3:

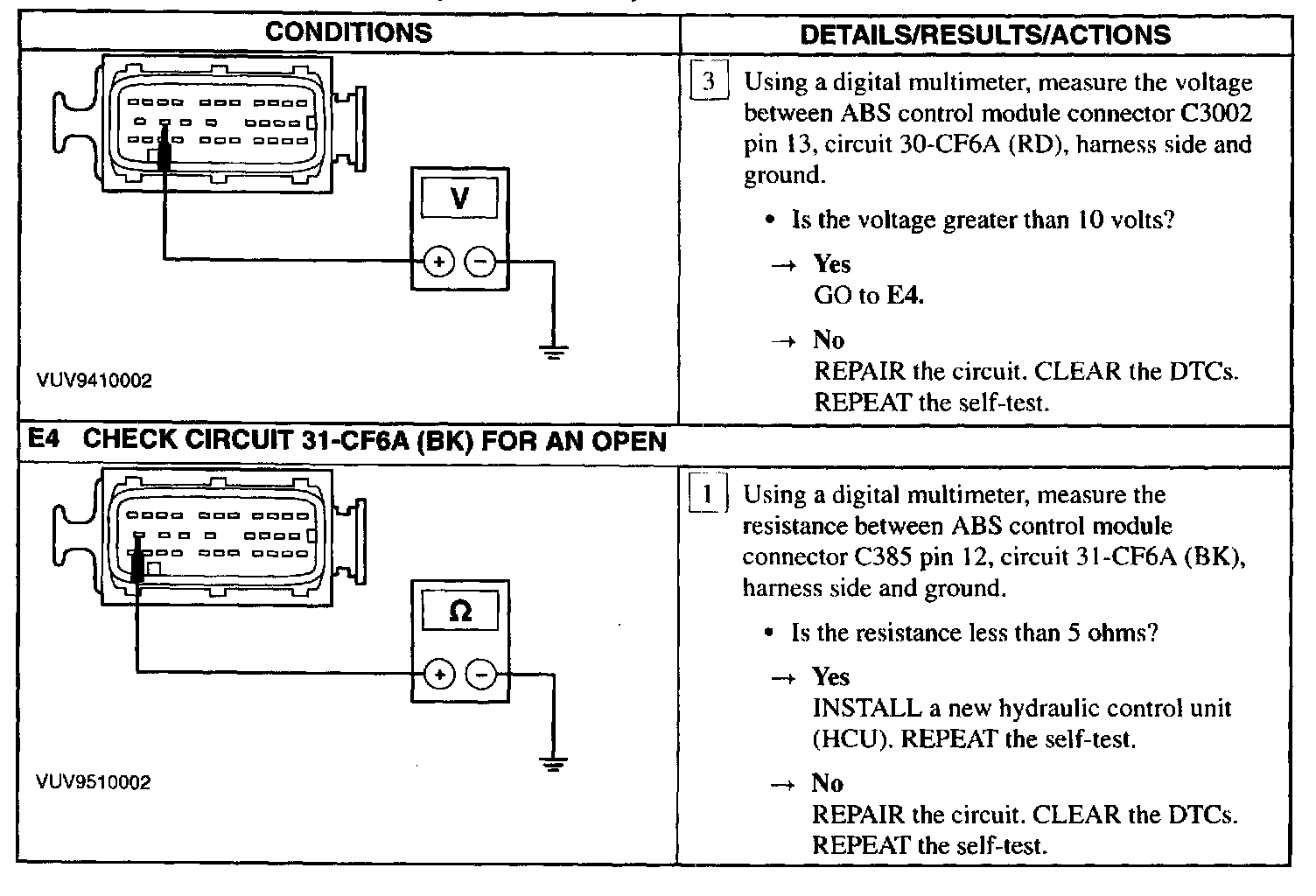

Test E3-E4:
