D: B1484 - Brake Pedal Input Open Circuit
>>
Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
TEST D: DTC B1484 - BRAKE PEDAL INPUT OPEN CIRCUIT

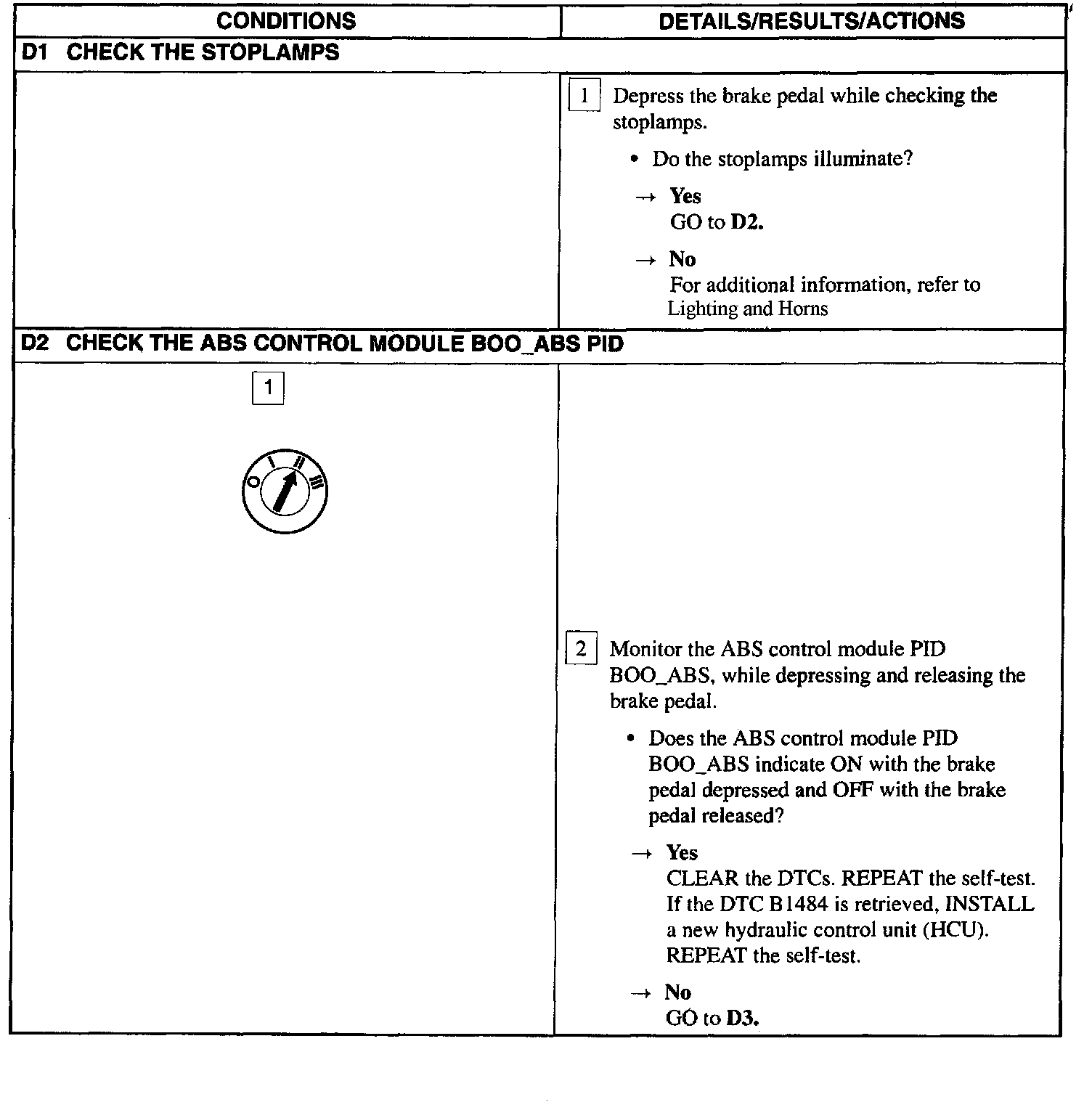

Test D1-D2:

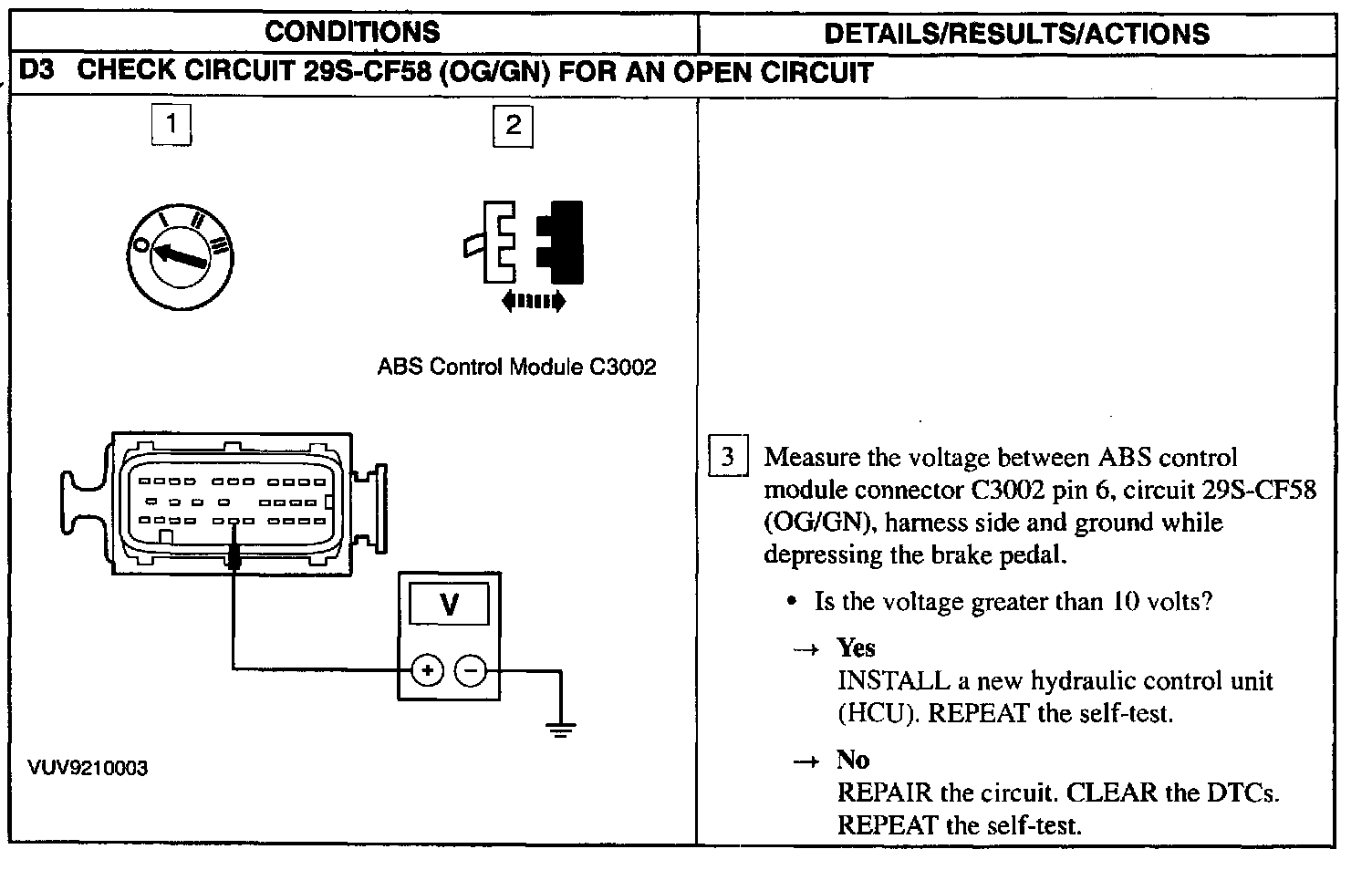

Test D3:
