A: No Communication With the Anti-Lock Brake Control Module
>>
Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
TEST A: NO COMMUNICATION ANTI-LOCK BRAKE

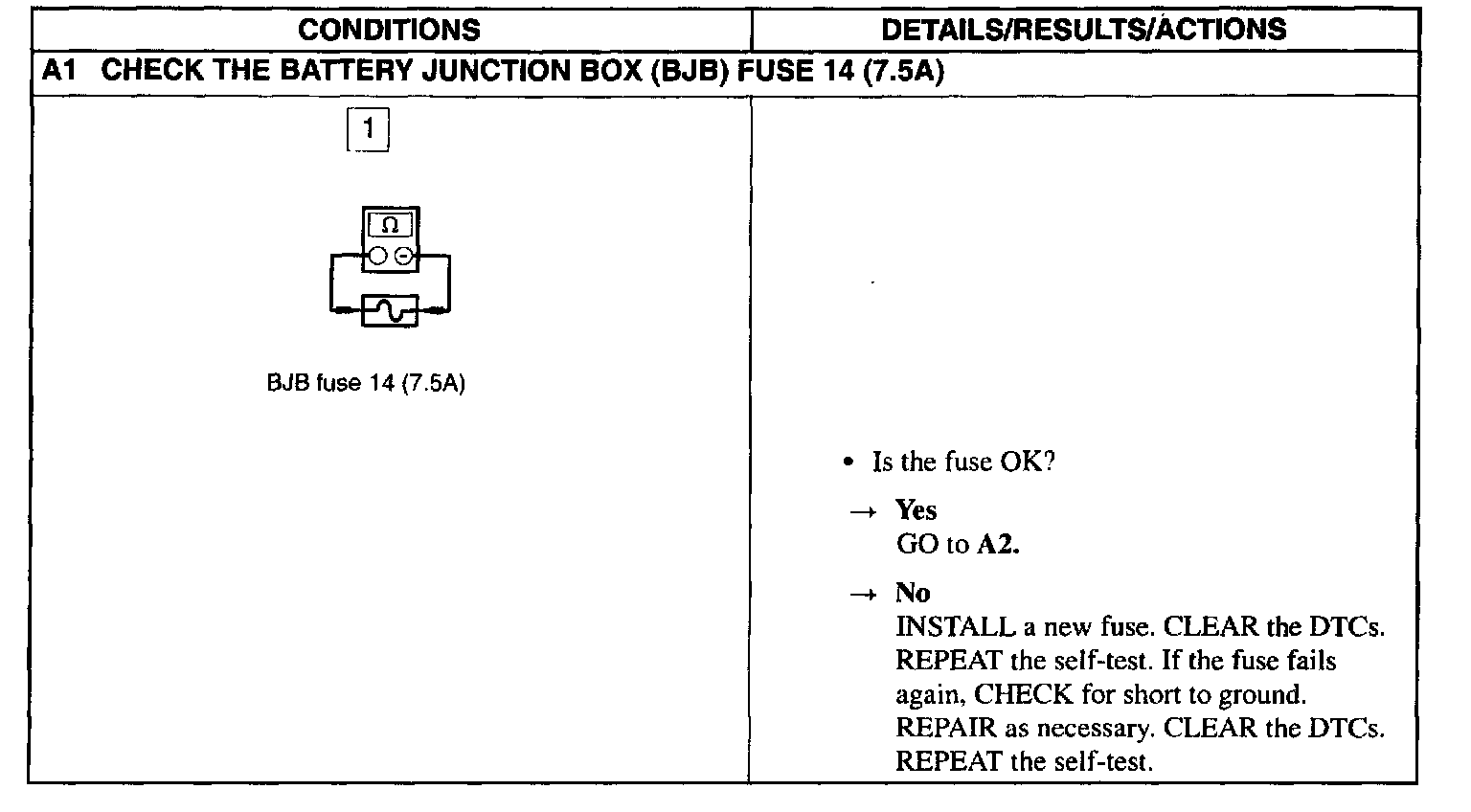

Test A1:

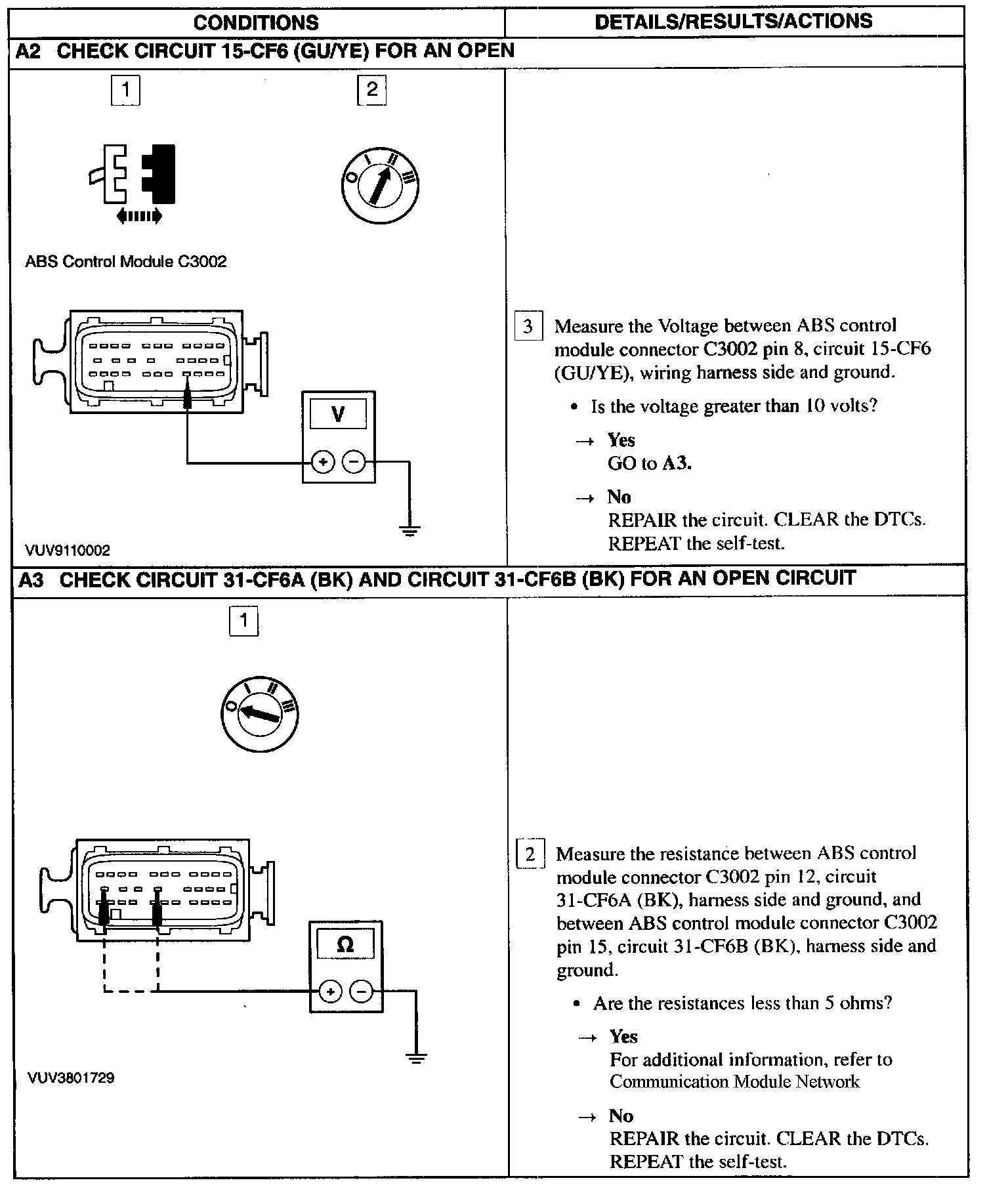

Test A2-A3:
