Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Trouble Code Diagnostic Charts

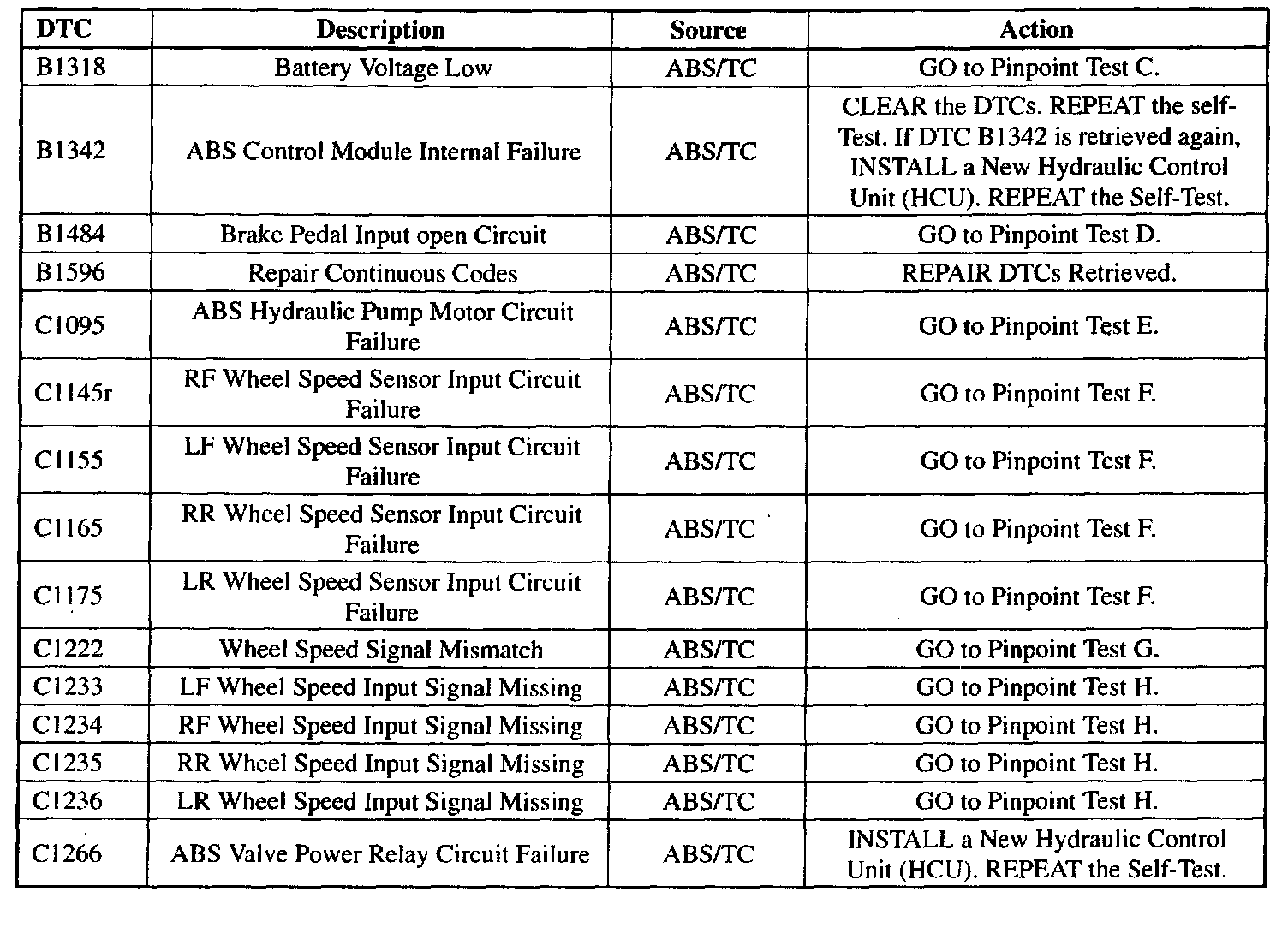

Trouble Code Diagnostic Charts

B1318-B1596 / C1095-C1266:






NOTE: The wheel speed DTCs can be cleared but the warning indicator will remain illuminated until the vehicle is driven over 12 Km/h (7 mph).
