Splash Guard: Service and Repair

SPLASH SHIELD - LOWER RADIATOR COVER

Removal

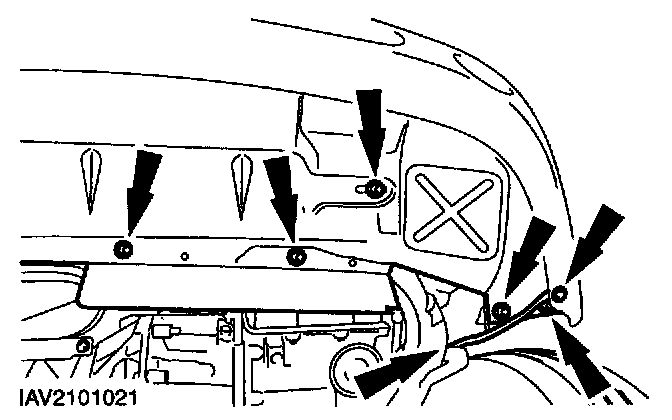

1 Remove radiator cover (nine bolts) and remove braces on both sides (left side shown).

Installation

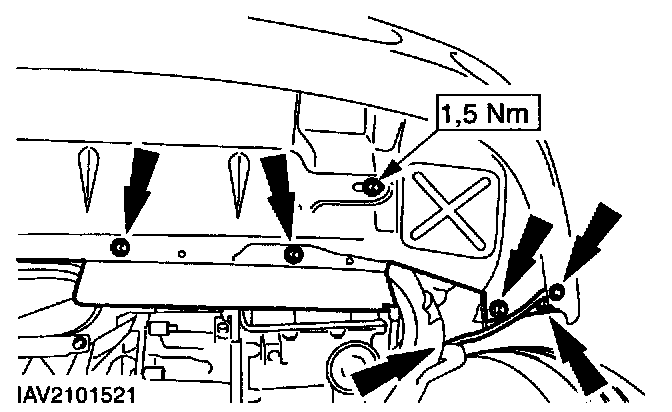

1. Install the components in reverse order.
