Initial Inspection and Diagnostic Overview

1. Verify the customer concern by operating the power seat(s).
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the chart:

NOTE: Make sure all electrical diagnoses in the pinpoint tests are carried out using a digital multimeter.

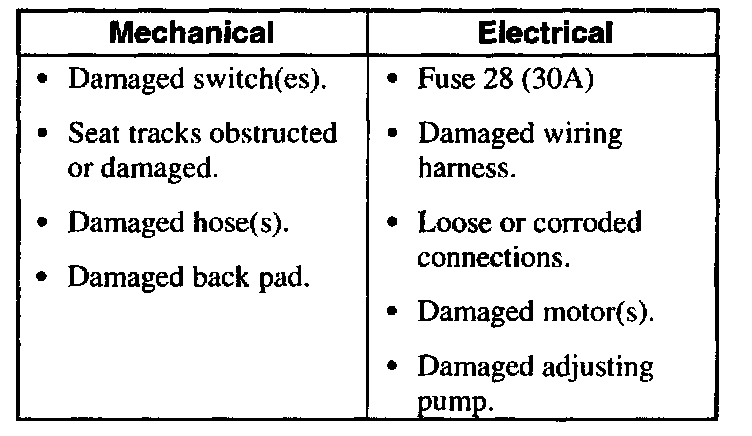

VISUAL INSPECTION CHART

3. If the concern is not visually evident, determine the symptom and proceed to the Symptom Chart. Symptom Related Diagnostic Procedures
